40±0.5通し穴

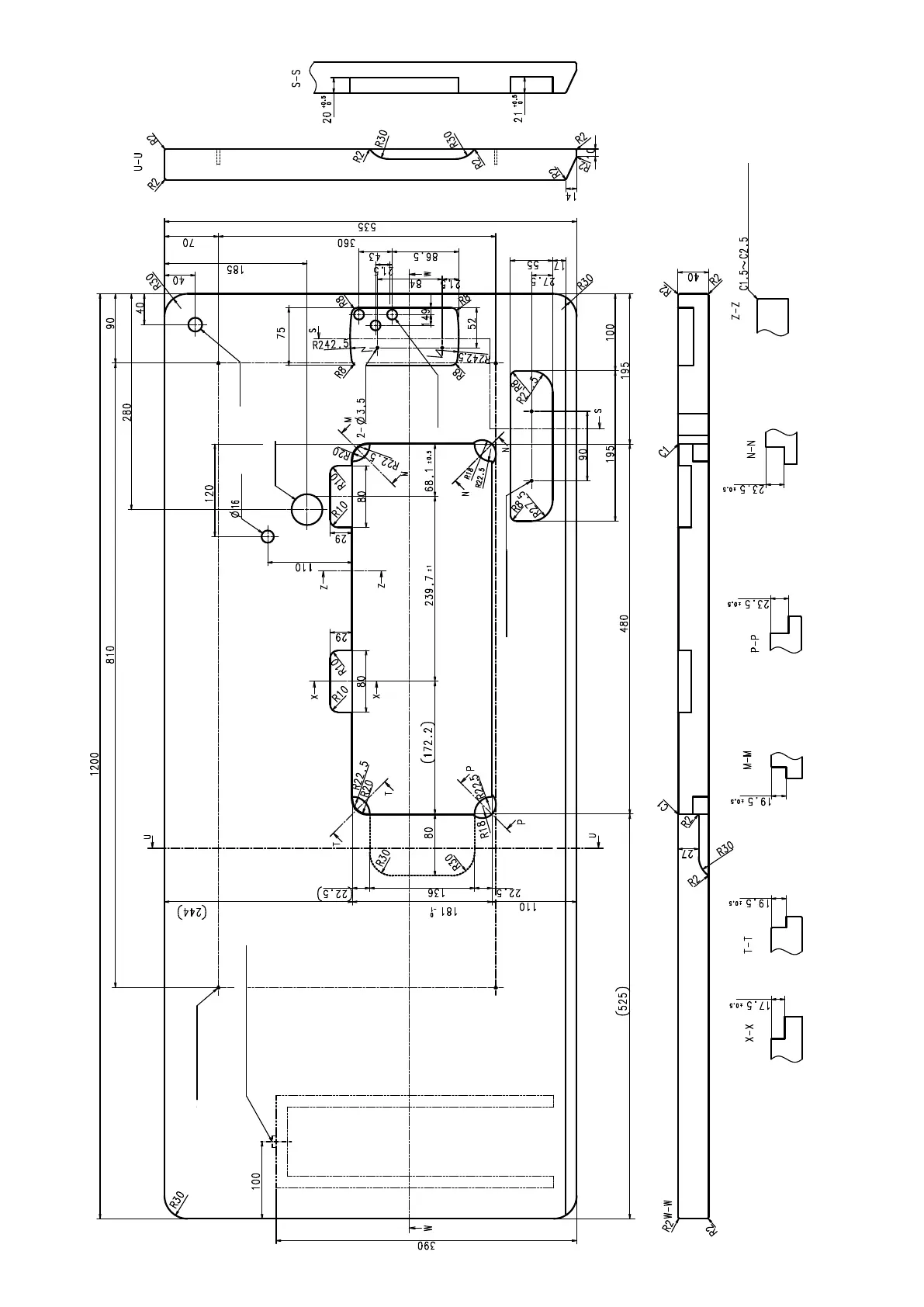

DRAWING OF TABLE
4-ϕ3.4 bottom surface, depth 20
2-ø3.5 bottom surface, depth 10
(Hinge side only)
depth 10
depth 30
Installing position of drawer stopper
(on the reverse side)
(Drill a hole at the time of set-up.)
ϕ18 Drilled hole
ϕ40
±
0.5
Drilled hole
3-ϕ13
Drilled hole
