– 4 –
❶
Connector connection diagram
Auto-lifter
Solenoid &
LED/TB unit
Pedal
AC power
supply input
Underside of the table

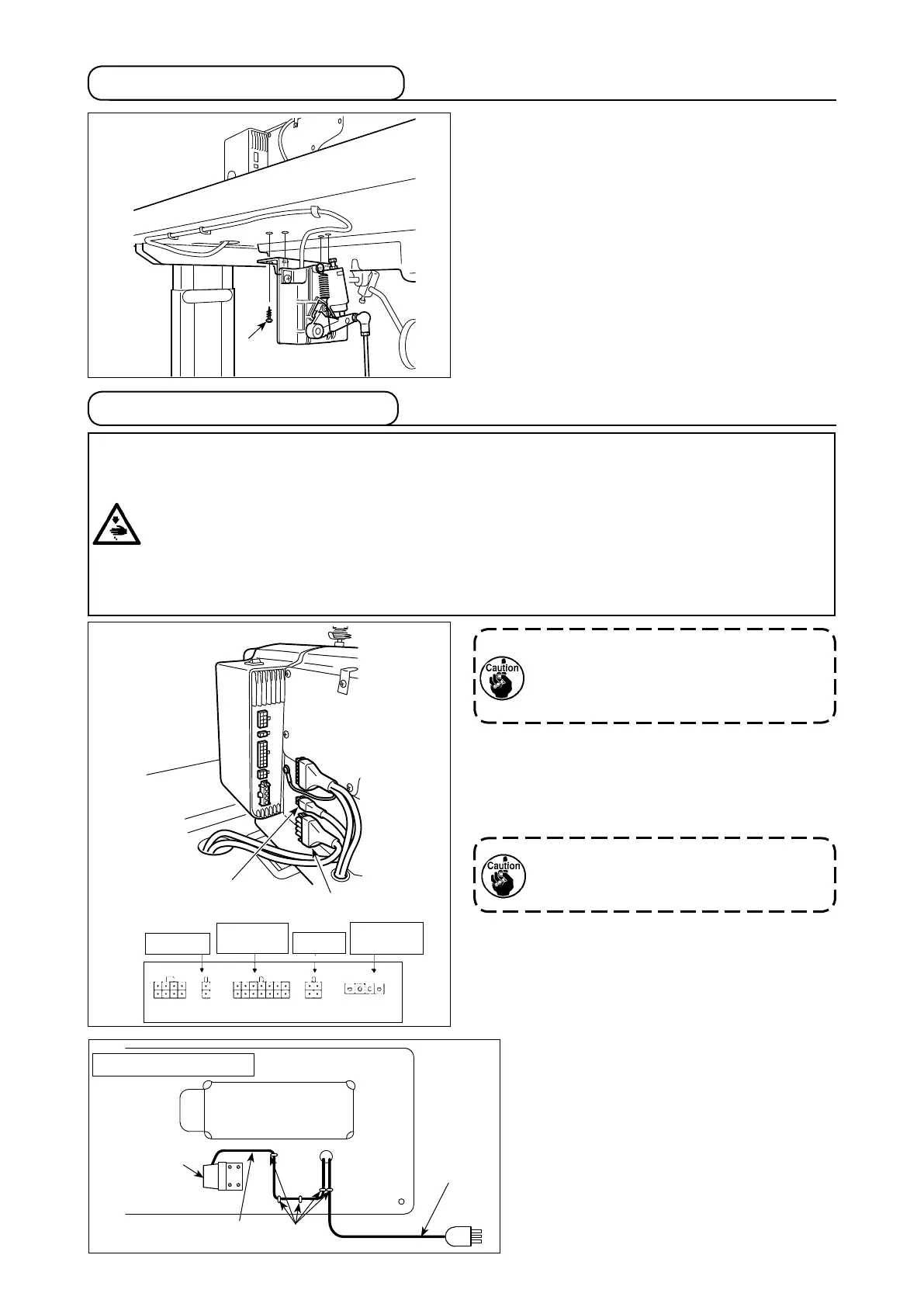

The explanation applies to the case the pedal sensor
is installed on the table for the DDL-8100B-7.
1) Install the pedal sensor to the table with mounting
screws ❶ supplied with the unit. It is necessary
to install the pedal sensor at such a position that
the connecting rod is perpendicular to the table.
2) After the completion of installation of the pedal
sensor on the table, place the sewing machine
head on the table.
WARNING :
• To protect against personal injury resulting from abrupt start of the sewing machine, be sure to turn the
power OFF, unplug the machine and wait for ve minutes or more before installing the pedal sensor.
• To prevent damage of device caused by maloperation and wrong specications, be sure to connect
all the corresponding connectors to the specied places. (If any of the connectors is inserted into a
wrong connector, not only the device corresponding to the connector can break but also it can start
abruptly, inviting the risk of personal injury.)
• To prevent personal injury caused by maloperation, be sure to lock the connector with lock.
• As for the details of handling respective devices, read carefully the Instruction Manuals supplied
with the devices before handling the devices.
AC cable
Pedal sensor cable
Staples
Pedal sensor
Do not insert the power plug into the wall
outlet.
Check to be sure that the power switch is
turned OFF.
1) Connect pedal sensor cable ❶ and AC input
cable ❷ supplied with the unit to the control box.
Refer to the connector connection diagram for
connecting ports of the cables.
Be sure to fully insert the connectors into
the corresponding ports until they are
locked.
2) Fix the pedal cable and AC input cable
with a staple.
❶
❷
2. Installing the pedal sensor
3. Connecting the connector
To Next Page
