WARNING :
1. Do not connect the power plug until the lubrication has been completed so as to prevent
accidents due to abrupt start of the sewing machine,
2. To prevent the occurrence of an inammation or rash, immediately wash the related portions if
oil adheres to your eyes or other parts of your body.
3. If oil is mistakenly swallowed, diarrhea or vomitting may occur. Put oil in a place where children
cannot reach.
①
Amount of oil (oil splashes) conrmation paper
②
Position to conrm the amount of oil (oil splashes)
Oil splashes conrmation paper
3 - 10 mm
25 mm
70 mm
* When carrying out the procedure described below in 2, remove the slide plate and take extreme caution
not to allow your ngers to come in contact with the hook.
1) If the machine has not been sufciently warmed up for operation, make the machine run idle for approxi-
mately three minutes. (Moderate intermittent operation)
2) Place the amount of oil (oil spots) conrmation paper under the hook immediately after the machine stops
running.
3) Conrm the height of the oil surface in the oil reservoir is within the range between “HIGH” and “LOW”.
4) Conrmation of the amount of oil should be completed in ve seconds. (Check the period of time with a
watch.)
WARNING :
Be extremely careful about the operation of the machine since the amount of oil has to be checked
by turning the hook at a high speed.

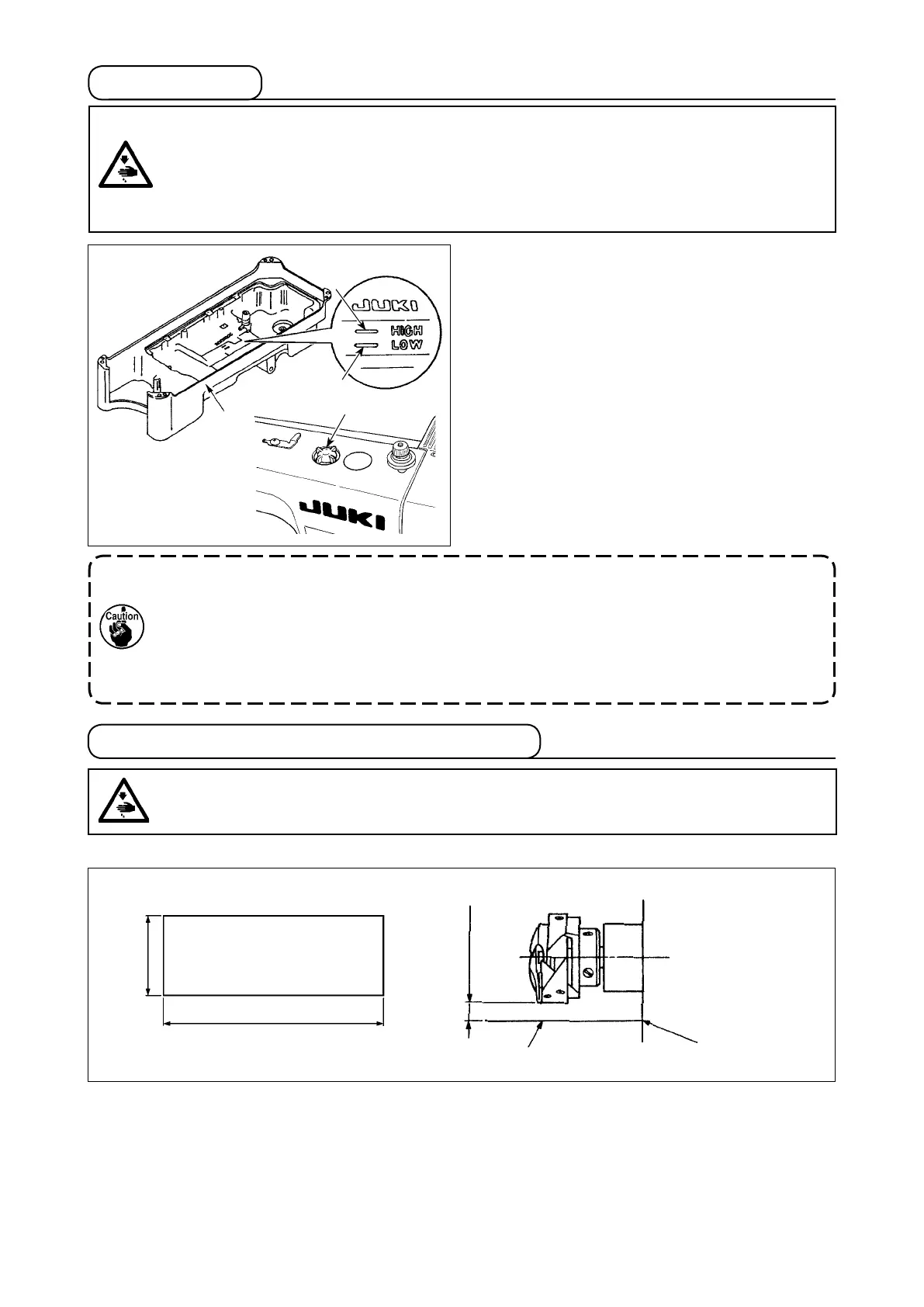

10. Adjusting the amount of oil (oil splashes)
(1) Conrmation of the amount of oil in the hook
❶
A
B
❷
1) Before starting the sewing machine, ll oil pan ❶
with JUKI MACHINE OIL #7 up to HIGH mark A.
2) Add oil before the oil surface comes down to
reach the LOW mark B.
3) When you operate the machine after lubrication,
you will see splashing oil through oil sight window
❷ if the lubrication is adequate.
4) Note that the amount of the splashing oil is unre-
lated to the amount of the lubricating oil.
1. When you use a new sewing machine or a sewing machine after an extended period of disuse,
use the sewing machine after performing break-in at 2,000 sti/min or less.
2. For the oil lubrication, purchase JUKI NEW DEFRIX OIL No. 1 (Part No. : MDFRX1600C0) or
JUKI MACHINE OIL #7 (Part No. : MML007600CA).
3. Be sure to lubricate clean oil.
4. When the oil surface is lower than the LOW mark, the oiling may be inconsistent. To prevent
inconsistent oiling, add oil before the oil surface comes down to reach the LOW mark.
9. Lubrication
Closely fit the
paper against the
wall surface of the
bed.
