– 3 –
A
B
󱢵
󱢳
󱢴

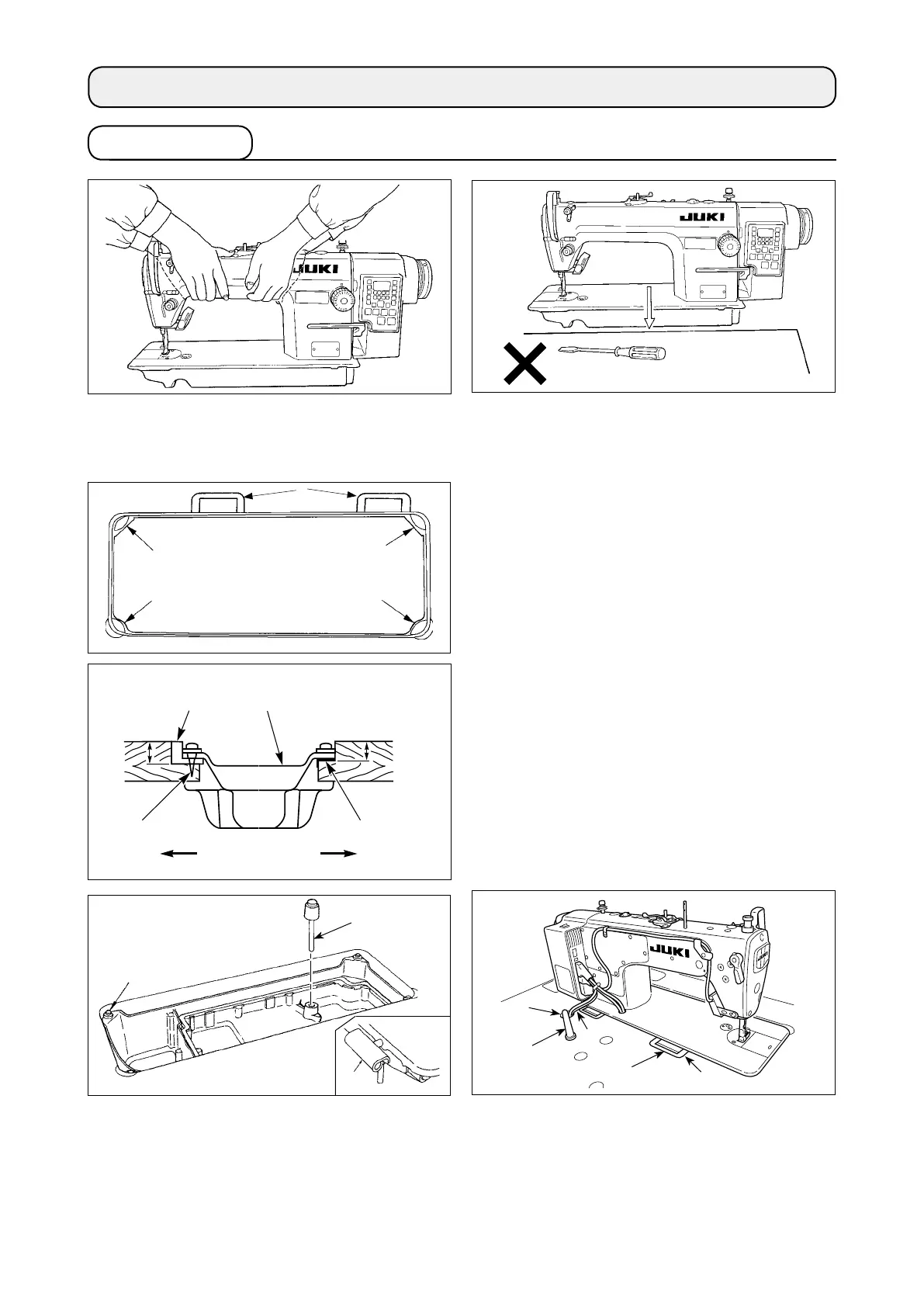

1) Carry the sewing machine with two persons as
shown in the gure above.
(Caution) Do not hold the handwheel.
2) Do not put protruding articles such as the screw-
driver and the like at the location where the
sewing machine is placed.
3) Adjust so that the oil pan is supported at the four
corners of the table. Mount rubber hinge seat
on the table and x it on the table with a nail.
4
) Two rubber seats for supporting the head por-
tion on the operator side A are xed on the ex-
tended portion of the table by hitting the nail ,
and the other two rubber cushion seats on the
hinge side B are xed by using a rubber-based
adhesive. Then, oil pan is placed.
5) Fit knee lifter pressing rod . Fit hinge into the opening in the machine bed, and t the machine head
to table rubber hinge before placing the machine head on cushions on the four corners.
6) Securely attach head support rod 󱢳 to the table until it goes no further.
* Be sure to install the machine head support bar supplied with the unit.
7) Draw out cable 󱢴 of the control box through cable draw-out hole 󱢵 to route it to the underside of the
sewing machine table.
23.5mm
19.5mm
II. SET-UP
1. Installation
