❶
❷
❸
❹
Slightly sinks
❷
SM9051603SC
Screw
❸
NM6050003SC
Nut
❹
Cloth puller base
binding part
Anti-vibration rubber
– 12 –
3 to 4mm
Feed dog of
the sewing
machine
(largest feed
pitch)
Throat plate
Cloth puller belt

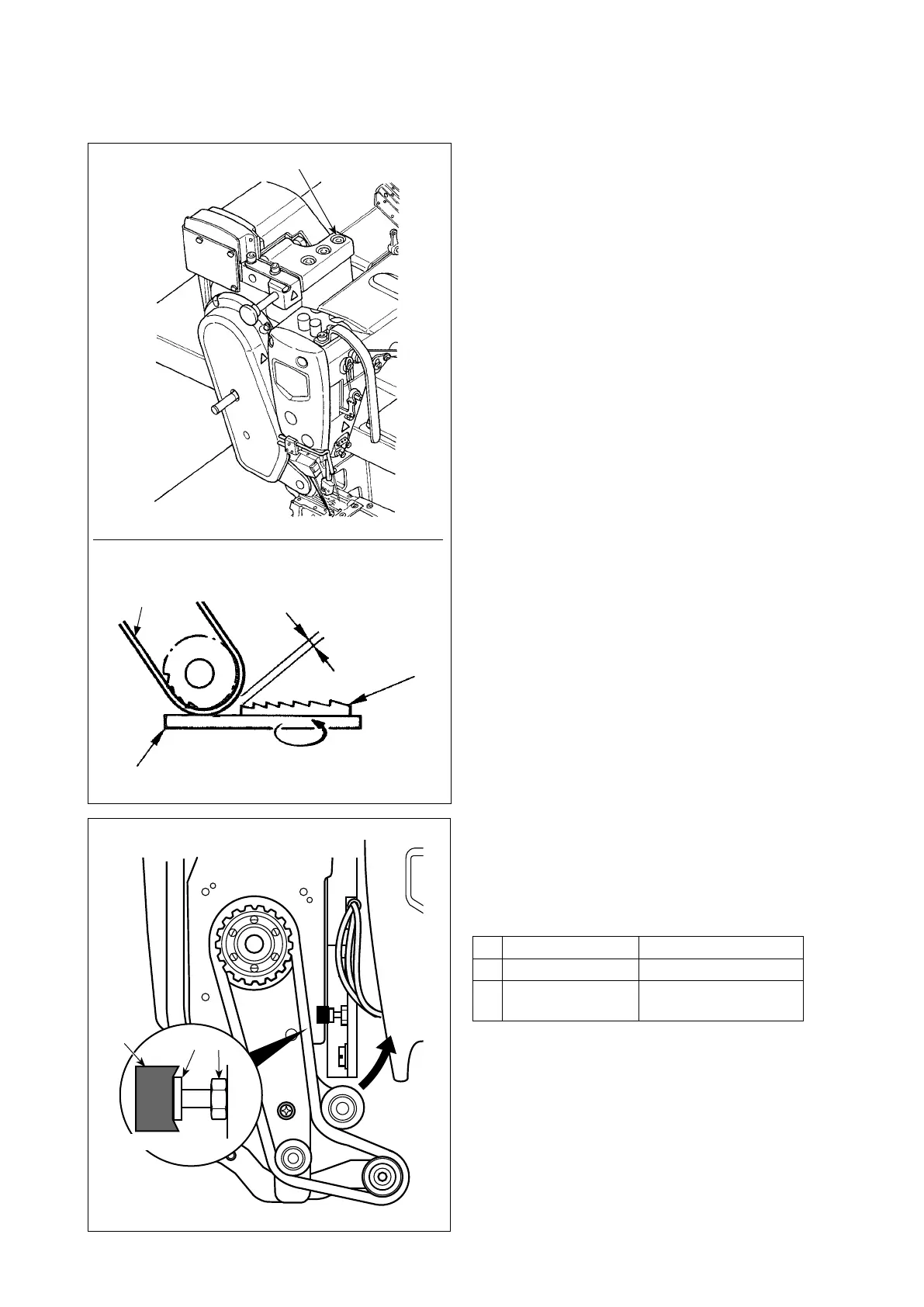

3-10. How to adjust the cloth puller
1) Loosen hexagon head setscrews
❶
(three piec-
es).
Maximize the feed amount of the main body of
sewing machine. Adjust the feed amount to 3 to
4 mm by moving the cloth puller back and forth
when the feed dog approaches closest to the belt.
3-10-1. Adjusting the cloth puller belt and its longitudinal position
2) Loosen screw
❷
and adjust the longitudinal posi-
tion of the cloth puller so that the head of screw
❷
comes in contact with rubber
❹
to such an extent
that rubber
❹
slightly sinks.
3) Tighten nut
❸
to secure the cloth puller.
