– 16 –
1. Spacer for presser foot 2. Setscrews
No. Plate thickness (mm) Part No. Part name Part No. Plate
0.3 12973509 Presser foot adjusting plate B
SS5060310SP
2
0.5 12973608 Presser foot adjusting plate C 2
0.8 12973707 Presser foot adjusting plate D
SS5060410SP
2
1.0 12962106 Presser foot adjusting plate A 2
1.2 12973806 Presser foot adjusting plate E 2
3. Spacer for feed dog
No. Plate thickness (mm) Part No. Part name
0.3 12975702 Feed dog adjusting plate B
0.5 12964102 Feed dog adjusting plate A
0.8 12975801 Feed dog adjusting plate C
1.0 12975900 Feed dog adjusting plate D
Code of folder
M297 — For medium-weight materials
(Equipped on MS-1261AM as standard)
M298 — For heavy-weight materials (Optional)
M299 — For extra-heavy-weight materials
(Equipped on MS-1261A as standard)
1 2 3
Part name Folder (asm.)
Needle gauge
M297 M298 M299
Code inch mm
F 1/4 6.4 MAM2970EEBA MAM2980BBBA MAM2990BBBA

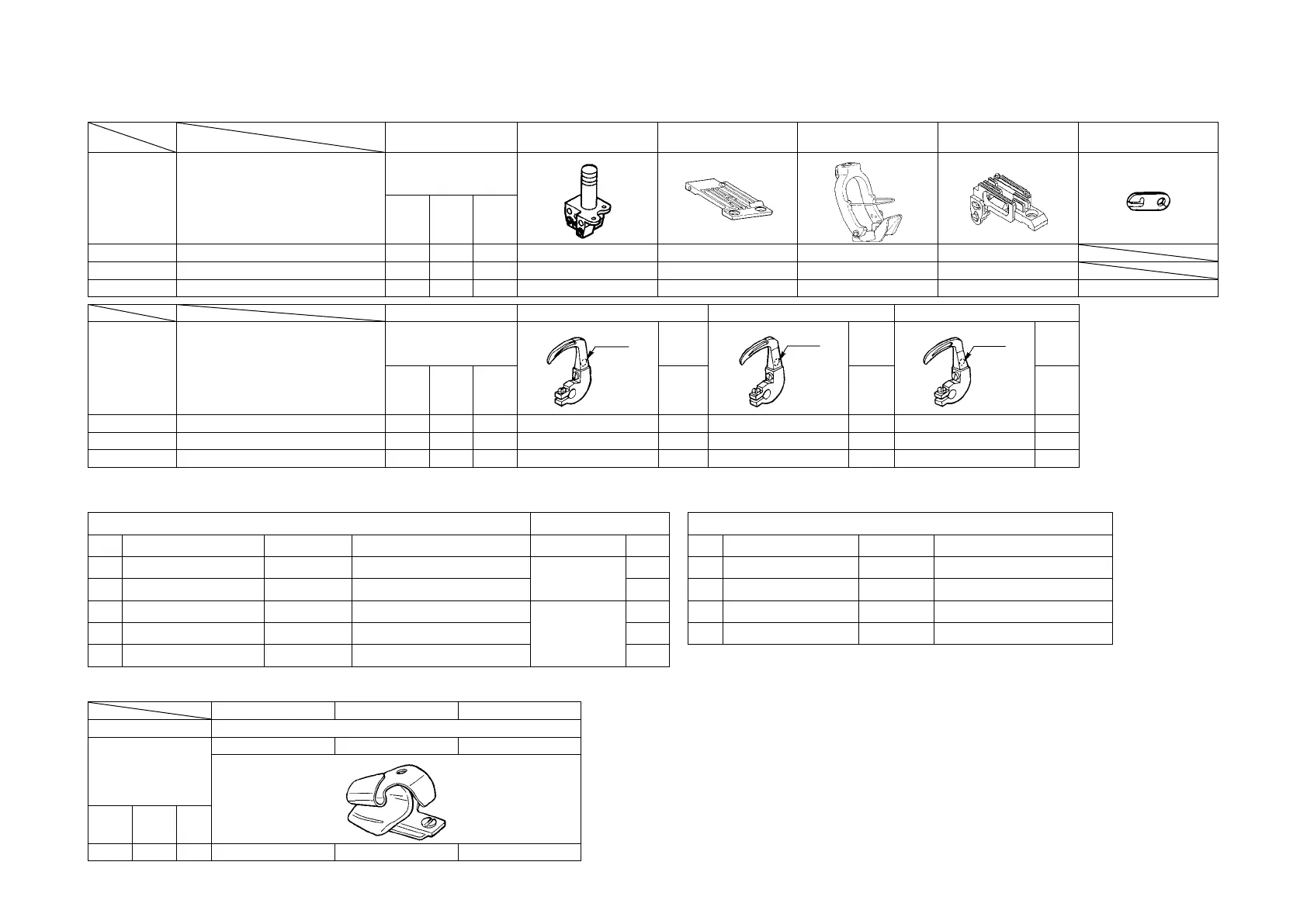

3-13. Table of replaceable gauges
Part name Needle clamp (asm.) Throat plate
Presser foot (asm.)
(with nger guard)
Feed dog Needle thread guide
Model Application
Needle gauge
Code inch mm
MS-1261A Extra-heavy-weight materials F 1/4 6.4 12956256 40202942 40202943 12963351
MS-1261A Heavy-weight materials F 1/4 6.4 12956256 40204587 40204601 12974150
MS-1261AM Medium-heavy-weight materials F 1/4 6.4 12956256 40204592 40205581 12974952 B1130051000
Part name Looper (L) (asm.) Looper (R) (asm.) Looper (C) (asm.)
Model Application
Needle gauge
Mark
Mark
Mark
Code inch mm
Mark
No.
Mark
No.
Mark
No.
MS-1261A Extra-heavy-weight materials F 1/4 6.4 12968558 1 12968855 1 12969150 1
MS-1261A Heavy-weight materials F 1/4 6.4 12968558 1 12968855 1 12969150 1
MS-1261AM Medium-heavy-weight materials F 1/4 6.4 12968558 1 12968855 1 12969150 1
