– 8 –

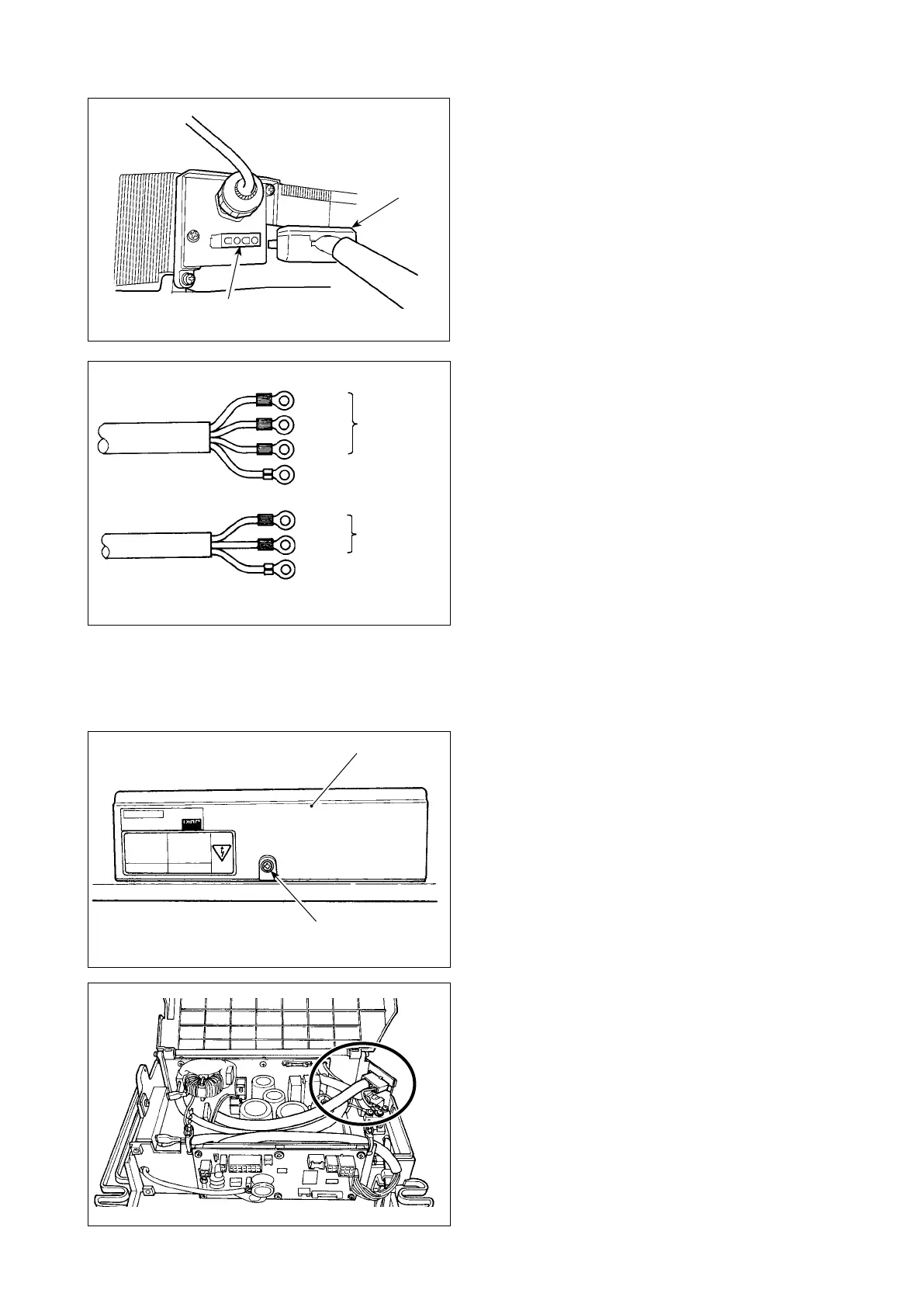

[In case of using the power switch for LA]
Connect motor output cord
@2
to connector
@3
locat-
ed on the side of the box.
Installing power switch
Connect power supply cord to the power switch.
[JA specications]
3-phase 220 V : Pow er su p ply c ords : b lack,
whi te, r ed an d gree n/yel l ow
(ground wire)
Single phase 120V : Power suppl y cor d s : b lack,
white, and green/yellow (ground
wire)
JA 3ø 220V
AC
200V-240V
Black
Red
White
Green / Yellow
(ground wire)
JA 1ø 120V
AC
100V-120V
Black
White
Green / Yellow
(ground wire)
When the metallic conduit is used, be sure to change over the power cord section following the steps of
procedure described below.
(Caution) Be sure to carry out this procedure before installing the control box on the machine table.
1) Place the control box with its frame side down on
the machine table as illustrated in the sketch.
2) Loosen screw
B
in underside cover
A
to open
the cover.
A
B
3) Change over the cord shown in the red-line circle
following the steps of procedure described below.
@2
@3
To Next Page
