JUKI SC-921 User Manual

– 41 –

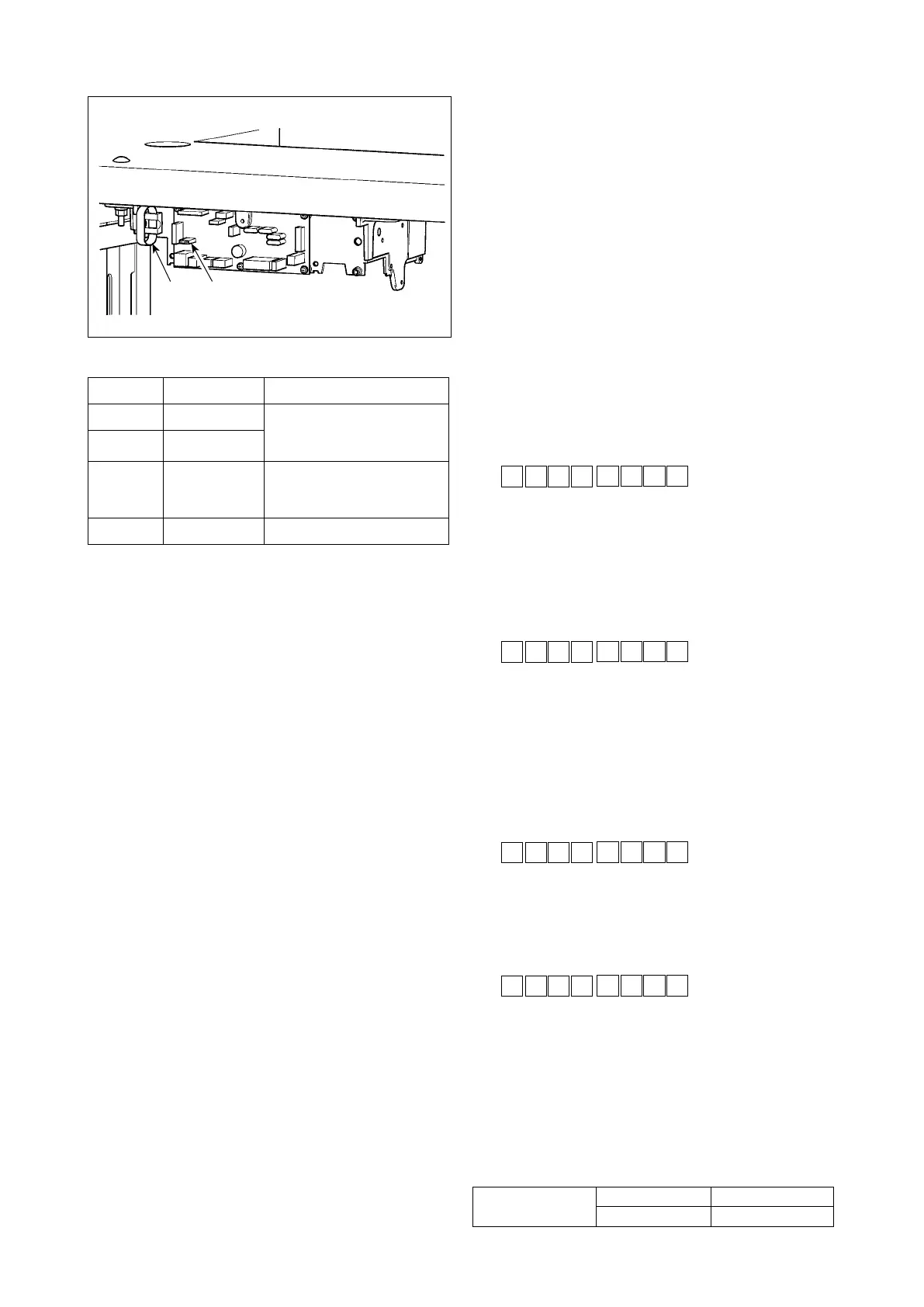

15. Connection of the material end sensor
2
1
1) Connect the connector of material end sensor to
connector
1
(CN54 : 4P) of SC-921.
2) Tighten the cord of the material end sensor to-
gether with other cords with cable clip band
2
attached to the side of the box after passing it
through the cable clamp.
3) Assign CN54 to the material end sensor input re-
ferring to
"
#
-8-
8
. Optional input/output func-
tion selection (function setting No. 12) p.28
.
4) To use the material end sensor with the CP-18,
set up the sensor functions on the control box
through the function setting procedure. Select-
able functions and the corresponding selection
numbers are as follows:
・
Material end sensor function (function setting No. 2)
The material end sensor is enabled.
0: Material end sensor is not used.
1: Material end sensor is enabled.
・
Thread trimming function by means of the mate-
rial end sensor (function setting No. 3)
The automatic thread trimmer is activated after
the detection of the material end.
0: Automatic thread trimming is not carried out.
1: Automatic thread trimming is carried out.
・
The number of stitches after the activation of the
material end sensor (function setting No. 4)
The number of stitches to be sewn until the sew-
ing machine stops after the material end sensor
has detected the material end can be specied.
Data setting range: 0 - 19 <1/stitch>
・
One-shot function (function setting No. 76)
The one-shot operation until the material end is
detected can be set.
0: One-shot operation is not carried out.
1: One-shot operation is carried out.
(Caution) 1. Be sure to turn OFF the power before
connecting the connector.
2. For the use of the material end sen-
sor, refer to the Instruction Manual
attached to the material end sensor.
JUKI genuine
part number
Connector HK042310040
Pin connector HK042340000
1
2
1
3
5
4
0
7 6
Pin No. Signal name Remarks
1 +12V
Power supply is selected
according to the sensor
used.
2 +5V
3 OPT_S
Sensor input is assigned
to the material end
sensor.
4 GND
