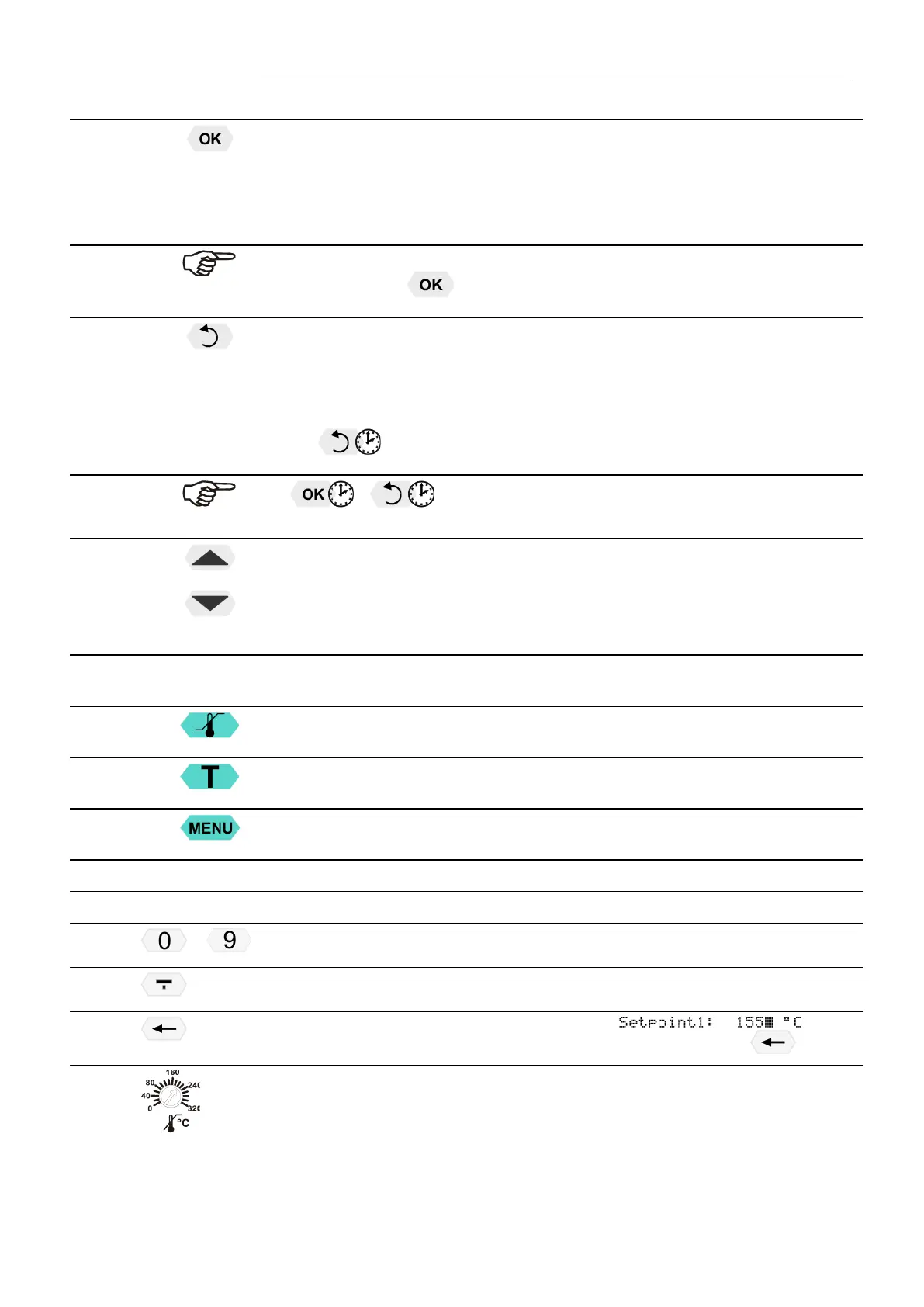

Keypad 1 Navigation keys
4.1 1. Key: >OK< Start / Stop (pump / heater )
2. >OK< in the menu Menu item / select submenu for setting
Save set value
Save selected parameter
A beep signals the end of setting
After the actions Start, Stop and change from VFD Display to standard
display the key is locked for a short time.
The above graph “front side” shows an example for standard display.
4.2
1. Key: >Return< Stop (pump / heater)
Special display on VFD Display leave line 3.
2. >Return< in the menu one menu level down
Correction function for parameters or values (prior to OK)
immediately back to standard display
- icon for „keep key pressed down“.
4.3
1. Key: >Up / Down <temperature – increase/decrease setpoint
Push key quickly for single steps,
Keep key pressed for fast change.
2. >Up/Down< in the menu selection of menu items / parameters
Menu keys
4.4 Key: start the menu > warning and safety values<
4.5 Key: start the menu >temperature setpoints<
4.6 Key: display of MENU structure
5
Keypad
2
..
Numeric keypad: numerals 0 to 9
minus / decimal point
Backspace key
on LCD DIALOG-DISPLAY.
6
Adjustable excess temperature protection according to IEC 61010-2-010
