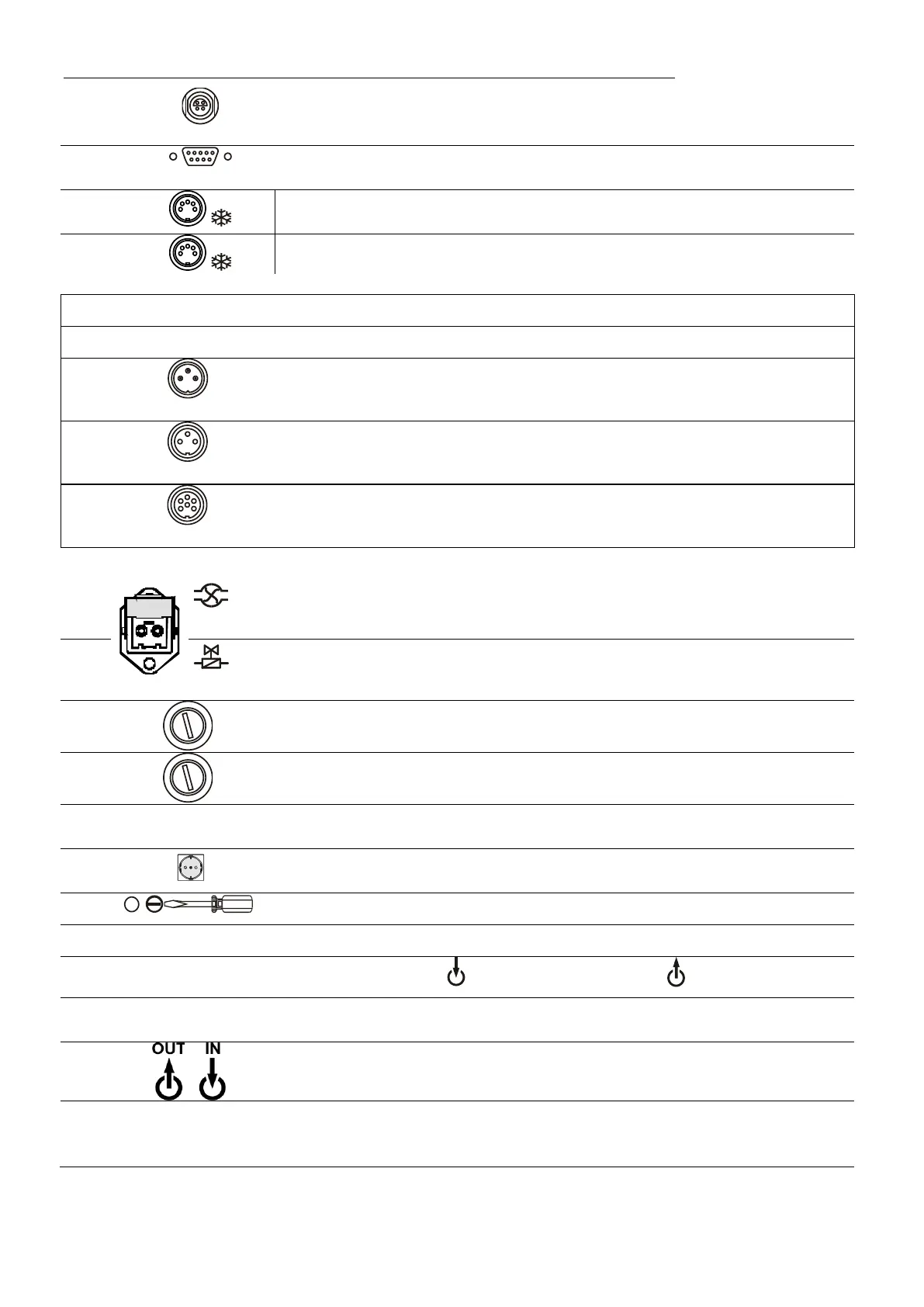

Operating controls and functional elements
24
7
ext Pt100
Socket for external measurement and control sensor
or external setpoint programming
8
SERIAL
Interface RS232 / RS485: remote control via personal computer
9
9a
Control cable of JULABO refrigerated circulator
Socket: output for alarm messages
9b
Socket:
Option: Electronic module Order No. 8 900 100
The circulator automatically recognizes the connected electronic module.
10
ALARM
Alarm output (for external alarm signal)
11
STAND-BY
Standby input (for external emergency switch-off)
12
REG+E-PROG
Programmer input and temperature recorder output
13
Connector for supplementary pump or solenoid valve
230 V / max. 1.25 A
No control voltage in the -OFF- condition
14
Connector solenoid valve
1. No control voltage in the -OFF- condition
2. Configurable for controlled counter cooling via solenoid valve
15
Fuses (for connectors 13, 14), T1.25A
16
Mains fuses, T16A
17a
17b
Mains power cable with plug for circulator
Mains power cable with plug cooling machine
18
Built-in mains outlet for connection of circulator (230 V / 16 A)
Not on - FPW91-SL - 230 V/3PPE/60 Hz
19
Drain screw with drain connection
20
Venting grid, removable
21
22
Pump connections suction pump pressure pump
23
Castor with brake (at the front)
Castor without brake (at the back)
24
Only water cooled models.
Cooling water connectors. G 3/4"
25
Built-in mains outlet for connection of HST booster heater
Not on - FPW91-SL - 230 V/3PPE/60 Hz
and Special units with bath opening
