3 Operation and visualisation
24

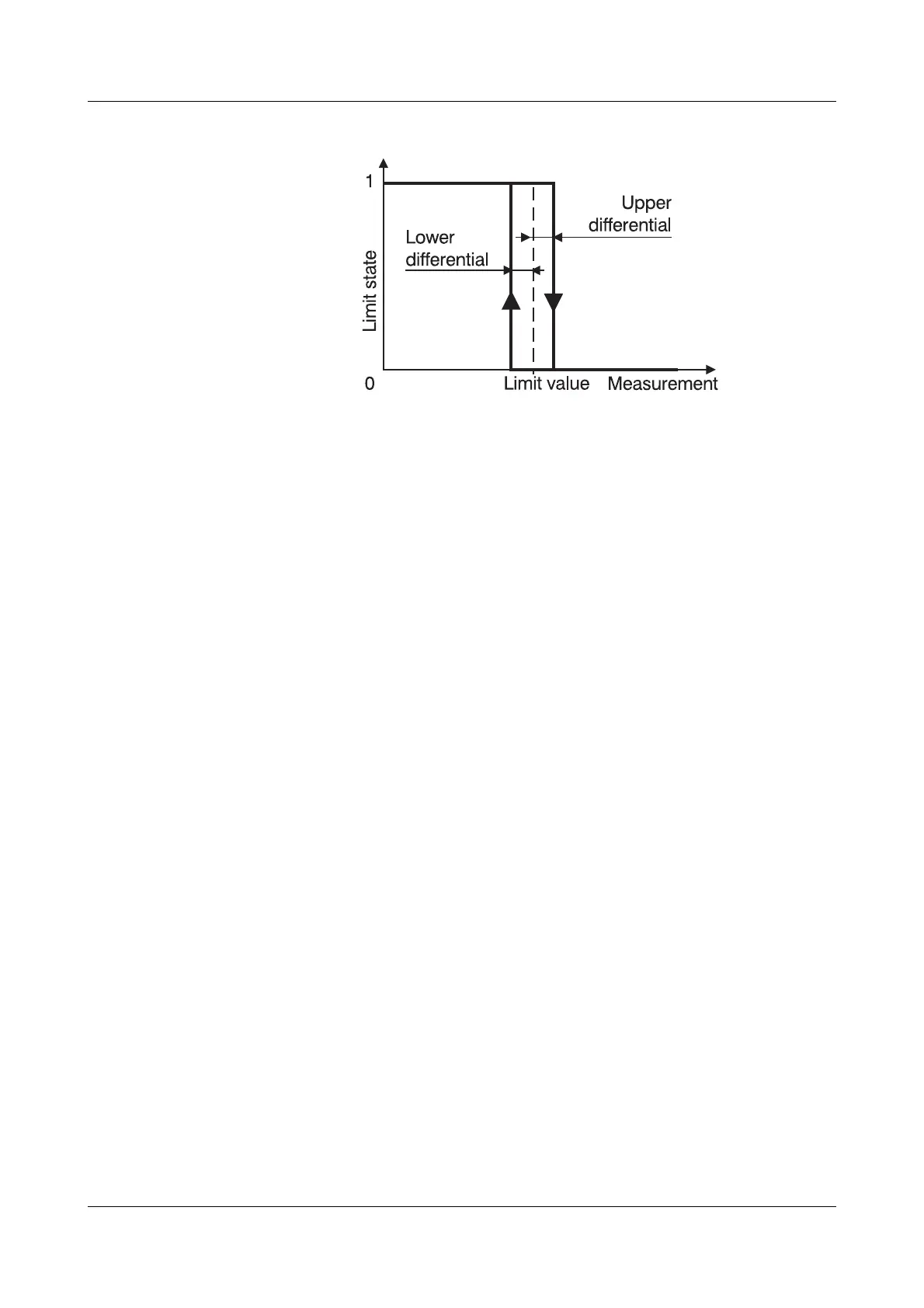

LK function: lk8
As well as producing the text print-out, the results from
- limit comparators 1 to 3 can be fed to the open-collector outputs 1 to 3,
and/or
- those from limit comparators 1 to 8 to the relay outputs 1 to 8 (option).
H
The relay outputs are available as an option (extra code ER8).
v Section 10.3 “External relay module ER8”
H
The state of the limit comparators can be documented by using
the event traces on the chart paper.
v Section 3.4.2 “Event traces”
H
The response of the limit comparators to out-of-range measure-
ments or a probe break can be defined with the parameter Config-
uration level 1 ➔ Limit comparator ➔ Probe break.
H
The limit values can be printed out in the form of limit marks (“l”)
together with the scaling.
v Section 3.5.8 “Scaling”
