2 Instrument description
12
2.2 Basics of operation
In order to keep the operating and programming of the printing recorder clear
and simple, the individual parameters and functions are divided into several
levels:
- Basic status
- Operating level (S-level)
- Parameter level (P-level)
- Configuration level 1 (C1-level)
- Configuration level 2 (C2-level)
- Configuration level 3 (C3-level)

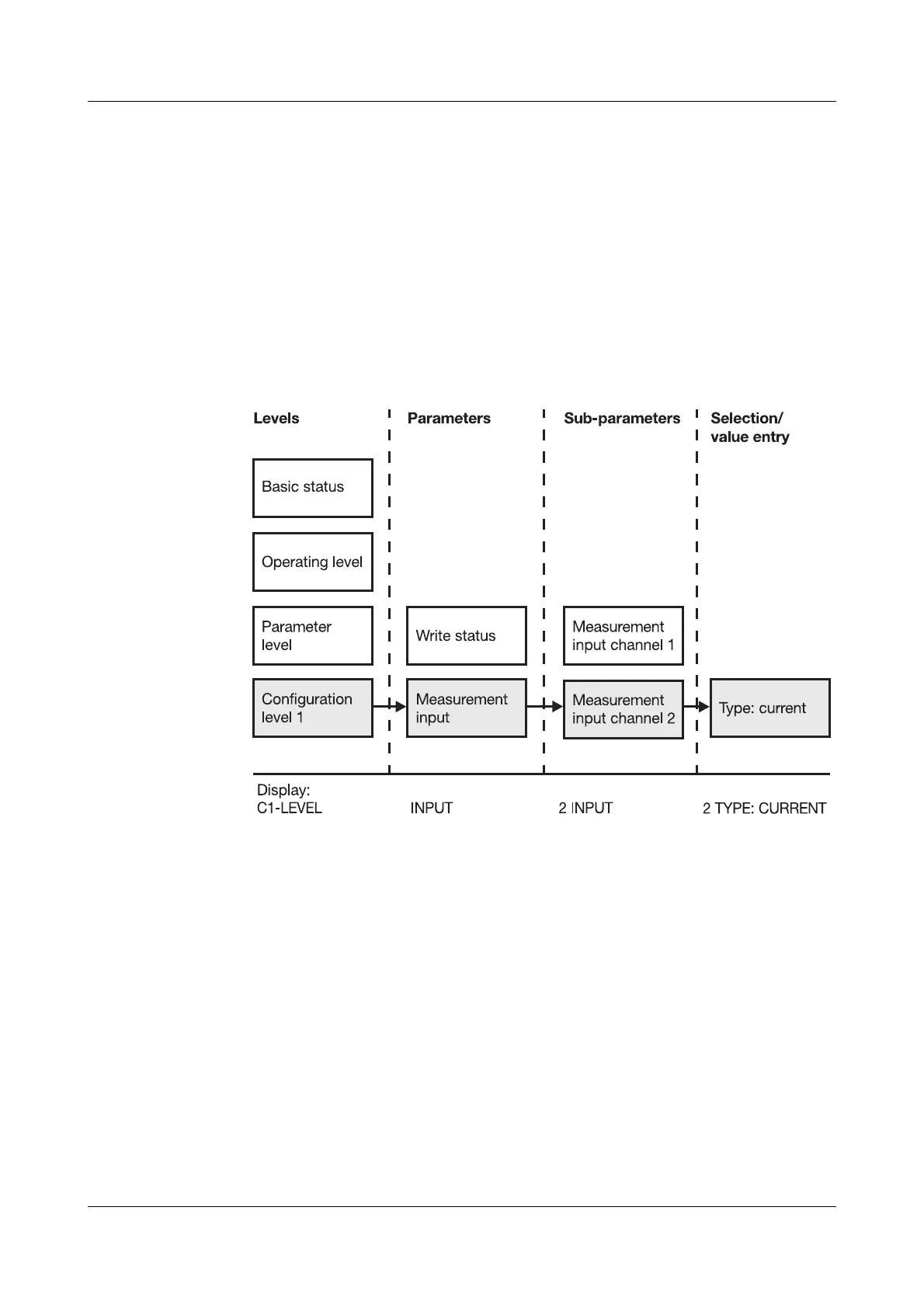

The levels, parameters and sub-parameters are arranged as a tree structure.
Starting from the basic status, it branches out into the individual levels, and
from there further into the corresponding parameters and, if available, sub-
parameters.
If it is necessary to alter a certain parameter, then step through the relevant
level until this parameter is reached.
Pressing E starts the editing process.
If a parameter has several sub-parameters, these can also be accessed by
pressing E.
