JUMO LOGOPRINT 500 - Connection Diagram

7 Electrical connection
78

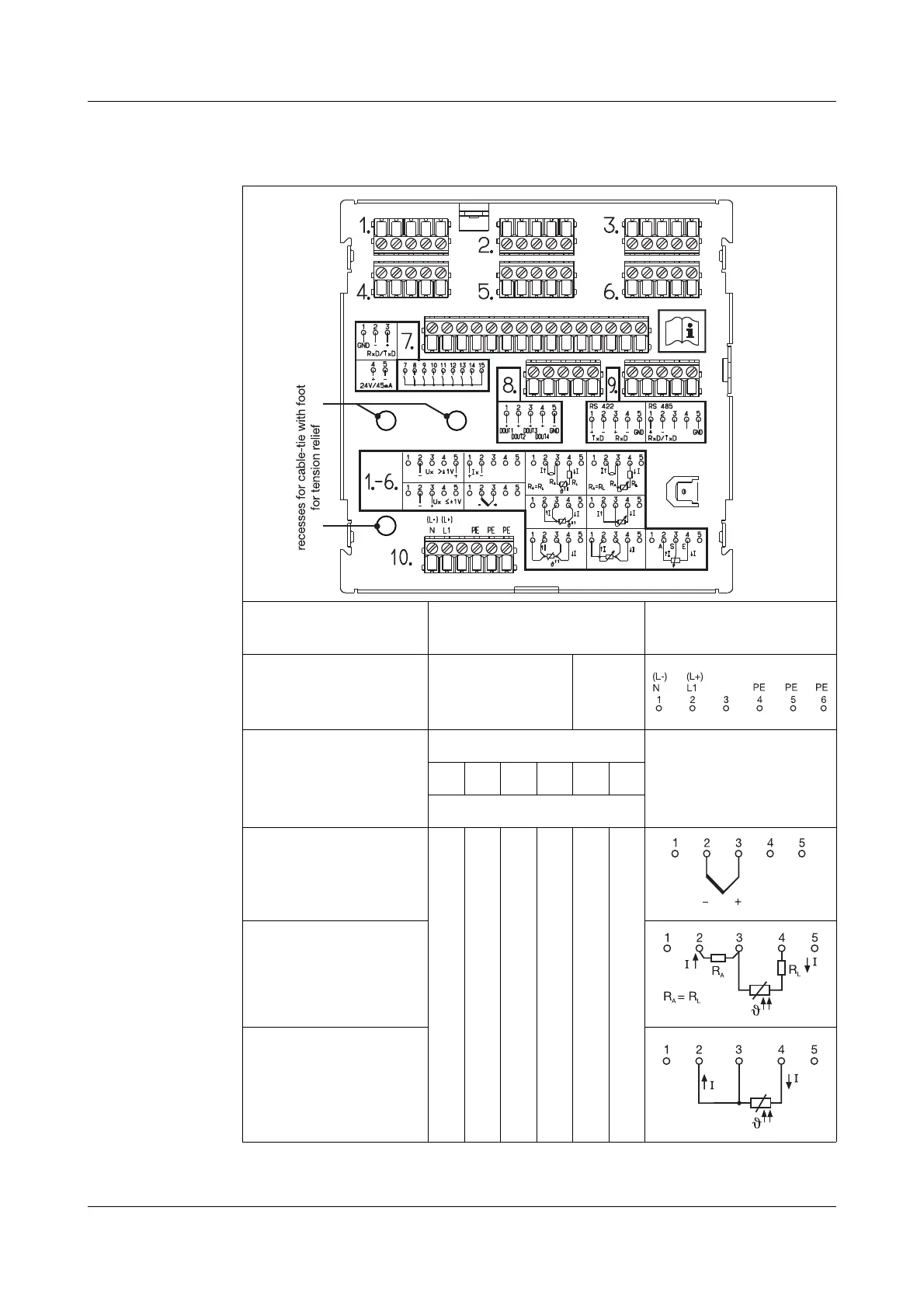

7.3 Connection diagram
Rear view of
3/6-channel
version
Terminal assignment
3/6-channel version
Terminal symbol
Supply as on label N neutral
L1 line
PE earth
field
10.
Analogue inputs Inputs
123456
field
Thermocouple
Resistance
thermometer
in 2-wire circuit
1. 2. 3. 4. 5. 6.
Resistance
thermometer
in 3-wire circuit
