7 Electrical connection

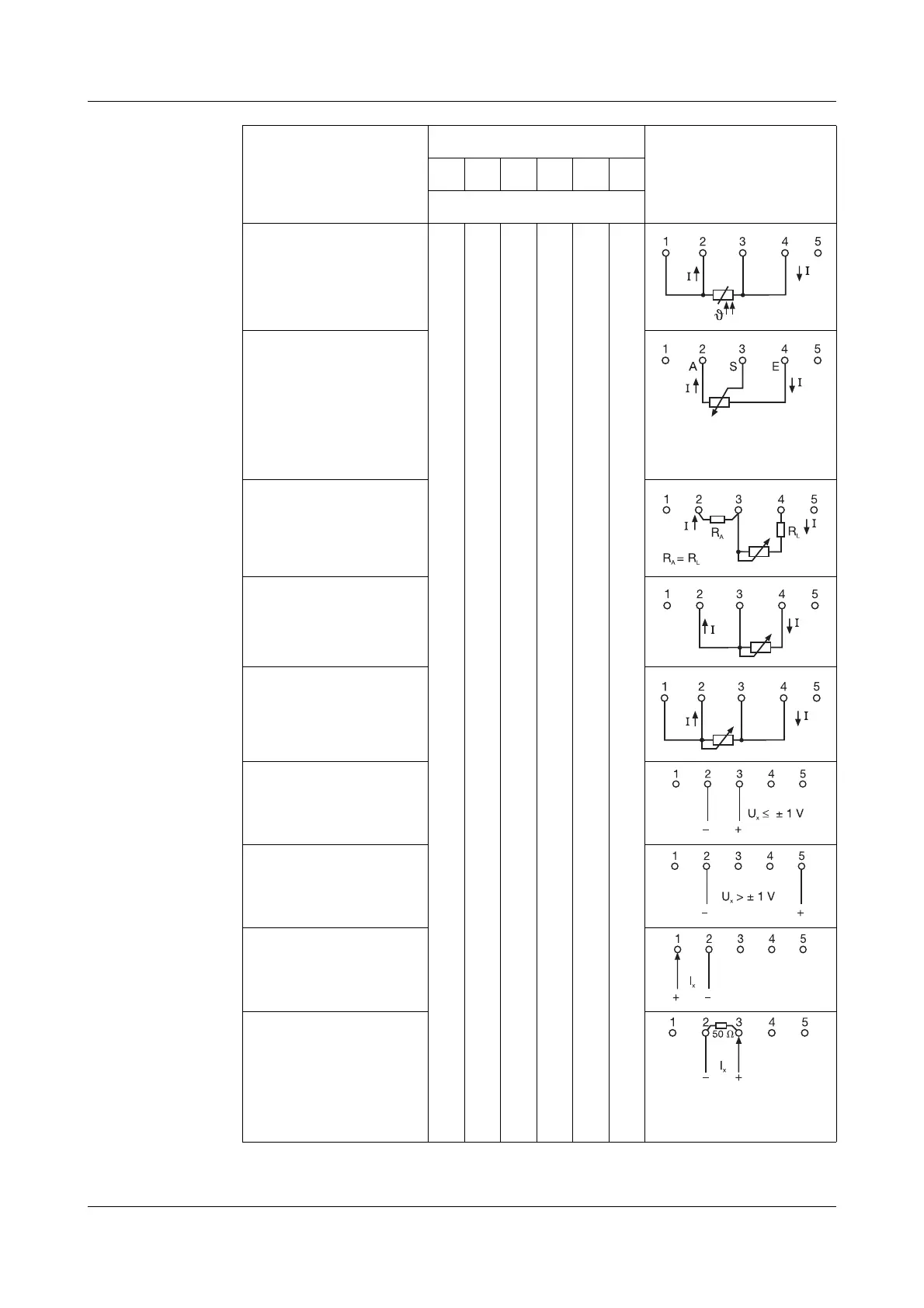

Analogue inputs Inputs
123456
field
Resistance
thermometer
in 4-wire circuit
Resistance transmitter
with 3-wire connection
A = start
S = slider
E = end
Potentiometer
2-wire circuit
Potentiometer
in 3-wire circuit
Potentiometer
in 4-wire circuit
1. 2. 3. 4. 5. 6.
Voltage input
≤ ± 1V
Voltage input
> ± 1V
Current input
± 20mA
Current input (shunt)
≤ ±20mA
(when using transducers
with changeable internal re-
sistance; extra code “termi-
nal with shunt” is required)
