Jungheinrich EJC 212-220 User Manual

0606.GB
E 24
7 Display instrument (CANDIS) (o)
The instrument indicates:
– battery residual charge status
(LED bars (22)),
– Service hours
(LC display (24)).
In addition, service messages for the
electronic components and parameter
changes are displayed.

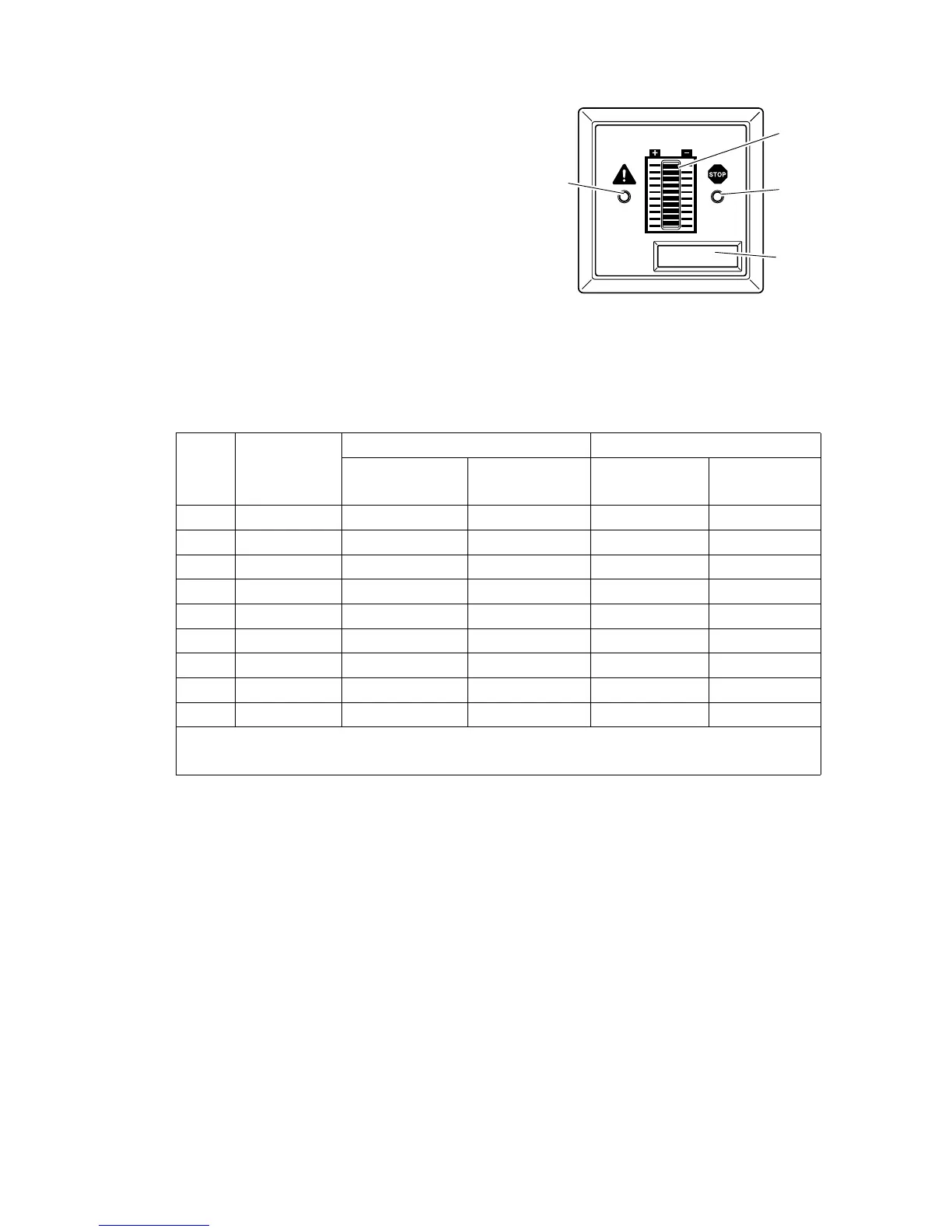

Discharge status display
Setting limits for the additional “Warning” (21) and “Stop” (23) displays will depend on
the battery type.
Numb
er
of bars
Charge
status
Standard battery Maintenance-free battery
LED (yellow)
Warning
LED (red)
Stop
LED (yellow)
Warning
LED (red)
Stop
10 90,1- 100% Off Off Off Off
9 80,1 - 90% Off Off Off Off
8 70,1 - 80% Off Off Off Off
7 60,1 - 70% Off Off Off Off
6 50,1 - 60% Off Off Off Off
5 40,1 - 50% Off Off On Off
4 30,1 - 40% Off Off On On
3 20,1 - 30% On Off On On
2 10,1 - 20% On On On On
Avoid falling below the 20% limit for standard batteries or the 40% limit
for maintenance-free batteries.
21
22
23
24
0606.GB
E 24
7 Display instrument (CANDIS) (o)
The instrument indicates:
– battery residual charge status
(LED bars (22)),
– Service hours
(LC display (24)).
In addition, service messages for the
electronic components and parameter
changes are displayed.
Discharge status display
Setting limits for the additional “Warning” (21) and “Stop” (23) displays will depend on
the battery type.
Numb
er
of bars
Charge
status
Standard battery Maintenance-free battery
LED (yellow)
Warning
LED (red)
Stop
LED (yellow)
Warning
LED (red)
Stop
10 90,1- 100% Off Off Off Off
9 80,1 - 90% Off Off Off Off
8 70,1 - 80% Off Off Off Off
7 60,1 - 70% Off Off Off Off
6 50,1 - 60% Off Off Off Off
5 40,1 - 50% Off Off On Off
4 30,1 - 40% Off Off On On
3 20,1 - 30% On Off On On
2 10,1 - 20% On On On On
Avoid falling below the 20% limit for standard batteries or the 40% limit
for maintenance-free batteries.
21
22
23
24
