6.4 Checking the hydraulic oil level
– Prepare the truck for maintenance and repairs (see Chapter 6.1).
– Remove the front panel (see Section 6.2).
– Check hydraulic oil level in hydraulic reservoir.
M

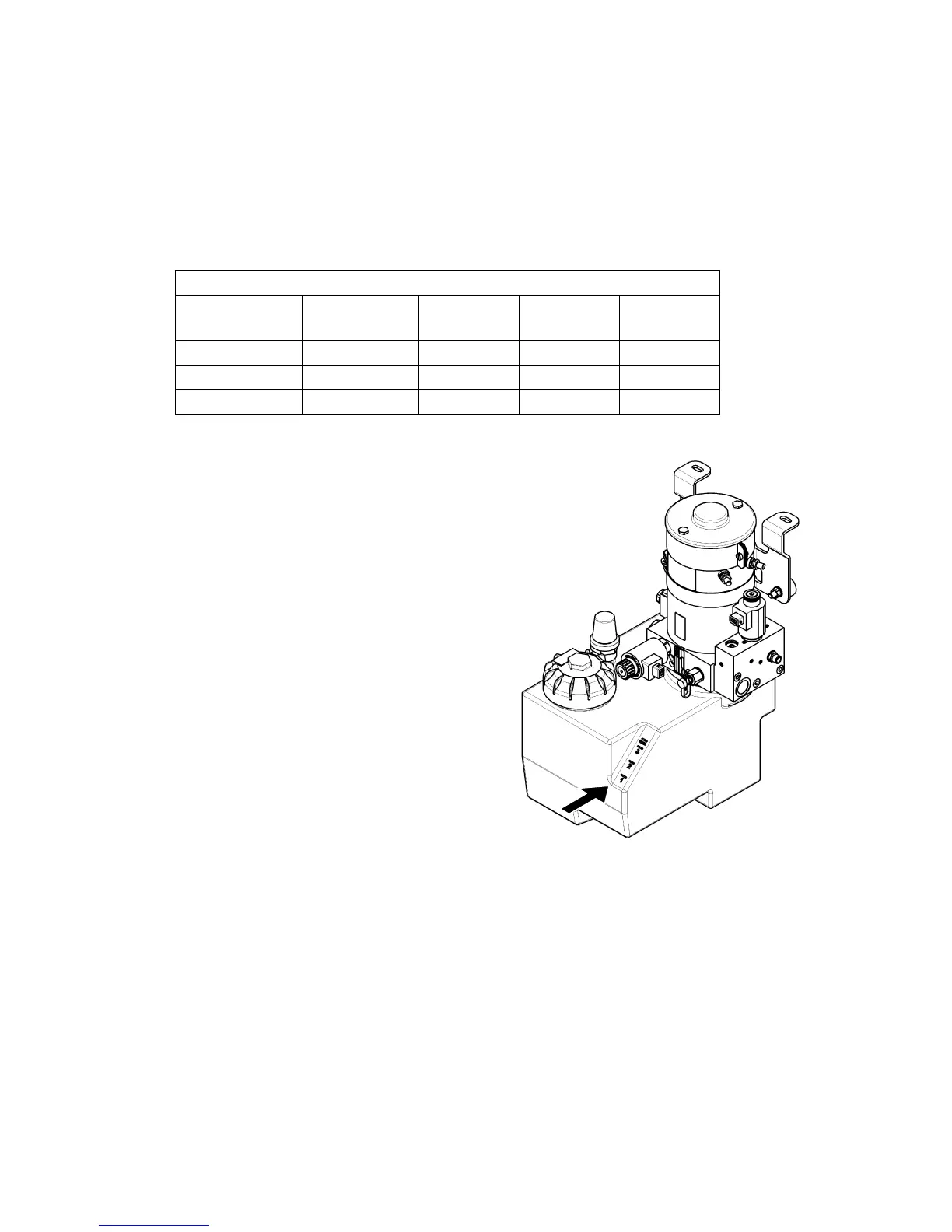

There are markings on the hydraulic reservoir. The oil level must be checked when
the load forks are lowered.
– If necessary add hydraulic oil of the correct grade (see Section 5.1) – see table.
M
Assembly is the reverse order.
Tank capacity level
1
(5.7 litres)
2
(6.6 litres)
3
(7.4 litres)
Max
(7.9 litres)
ZT All
ZZ up to 280 over 280
DZ All
F 9
0307.GB
6.4 Checking the hydraulic oil level
– Prepare the truck for maintenance and repairs (see Chapter 6.1).
– Remove the front panel (see Section 6.2).
– Check hydraulic oil level in hydraulic reservoir.
M
There are markings on the hydraulic reservoir. The oil level must be checked when
the load forks are lowered.
– If necessary add hydraulic oil of the correct grade (see Section 5.1) – see table.
M
Assembly is the reverse order.
Tank capacity level
1
(5.7 litres)
2
(6.6 litres)
3
(7.4 litres)
Max
(7.9 litres)
ZT All
ZZ up to 280 over 280
DZ All
