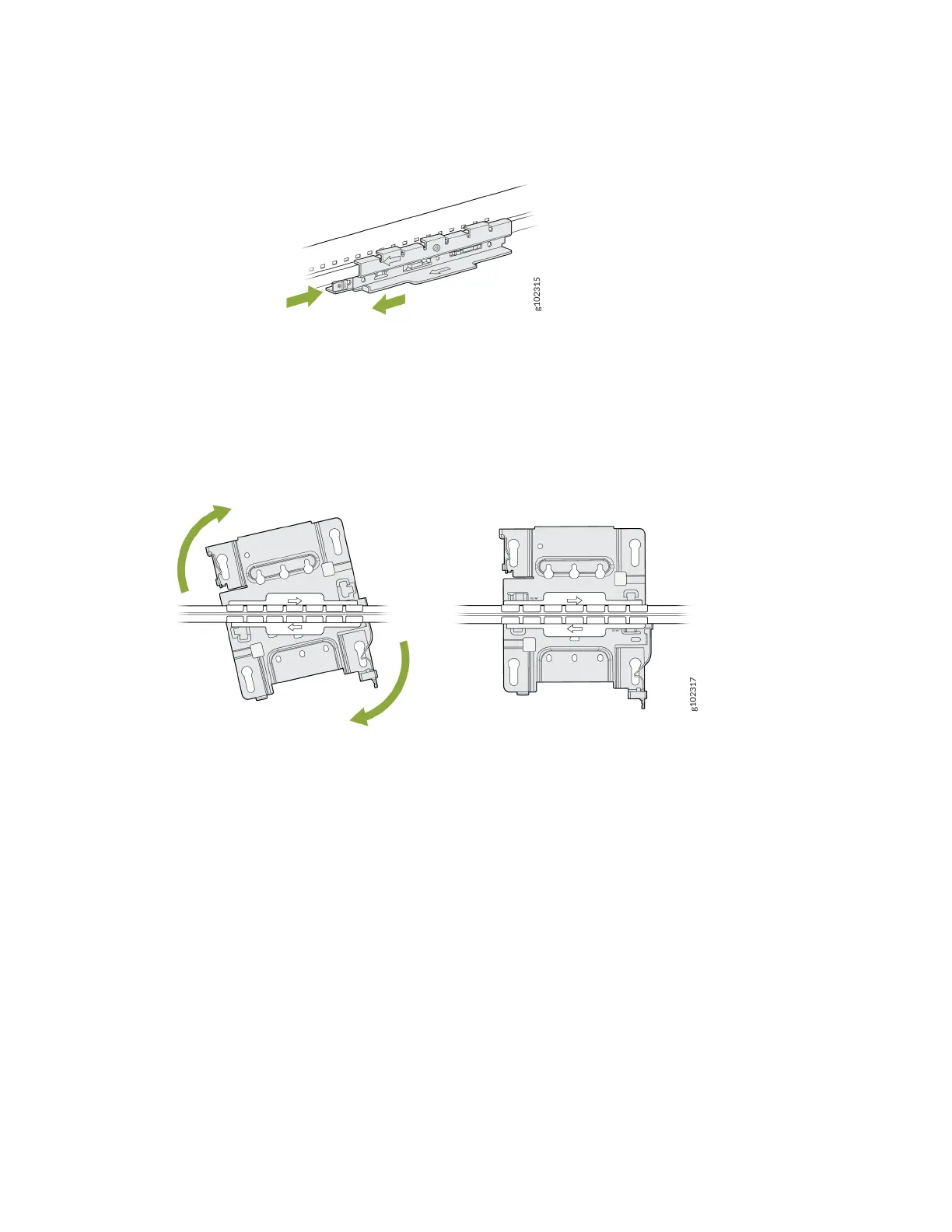

Figure 20: Aach the ADPR-ADP-CR9 Adapter to a Recessed 9/16-Inch Channel Rail
2. Aach the universal mounng bracket (APBR-U) to the adapter. Rotate the bracket unl you hear a
disnct click, which indicates that the bracket is locked in place.
Figure 21: Aach the APBR-U Mounng Bracket to the ADPR-ADP-CR9 Adapter
3. Posion the AP such that the keyholes of the mounng bracket engage with the shoulder screws on
the AP. Slide and lock the AP in place.
25
