Juniper AP43 - Page 33

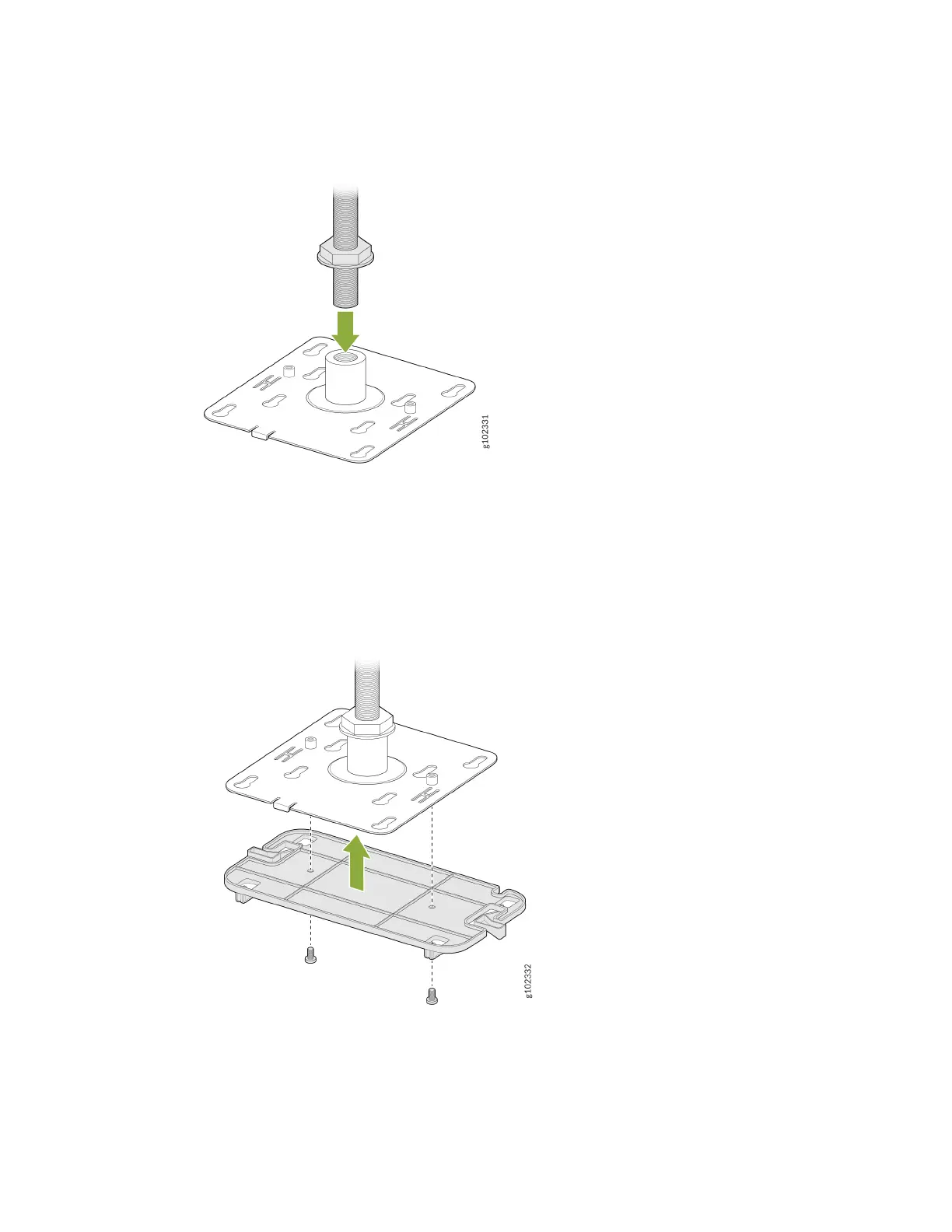

Figure 26: Aach the APBR-T58 Bracket to a 5/8-in. Threaded Rod
2. Aach the APBR-SW1 bracket adapter to the APBR-T58 mounng bracket using two screws
(provided with the AP).
Figure 27: Aach the APBR-SW1 Bracket Adapter to the APBR-T58 Mounng Bracket
3. Posion the AP such that the shoulder screws on the AP engage with the keyholes of the mounng
bracket. Slide and lock the AP in place.
28
