Juniper AP43 User Manual

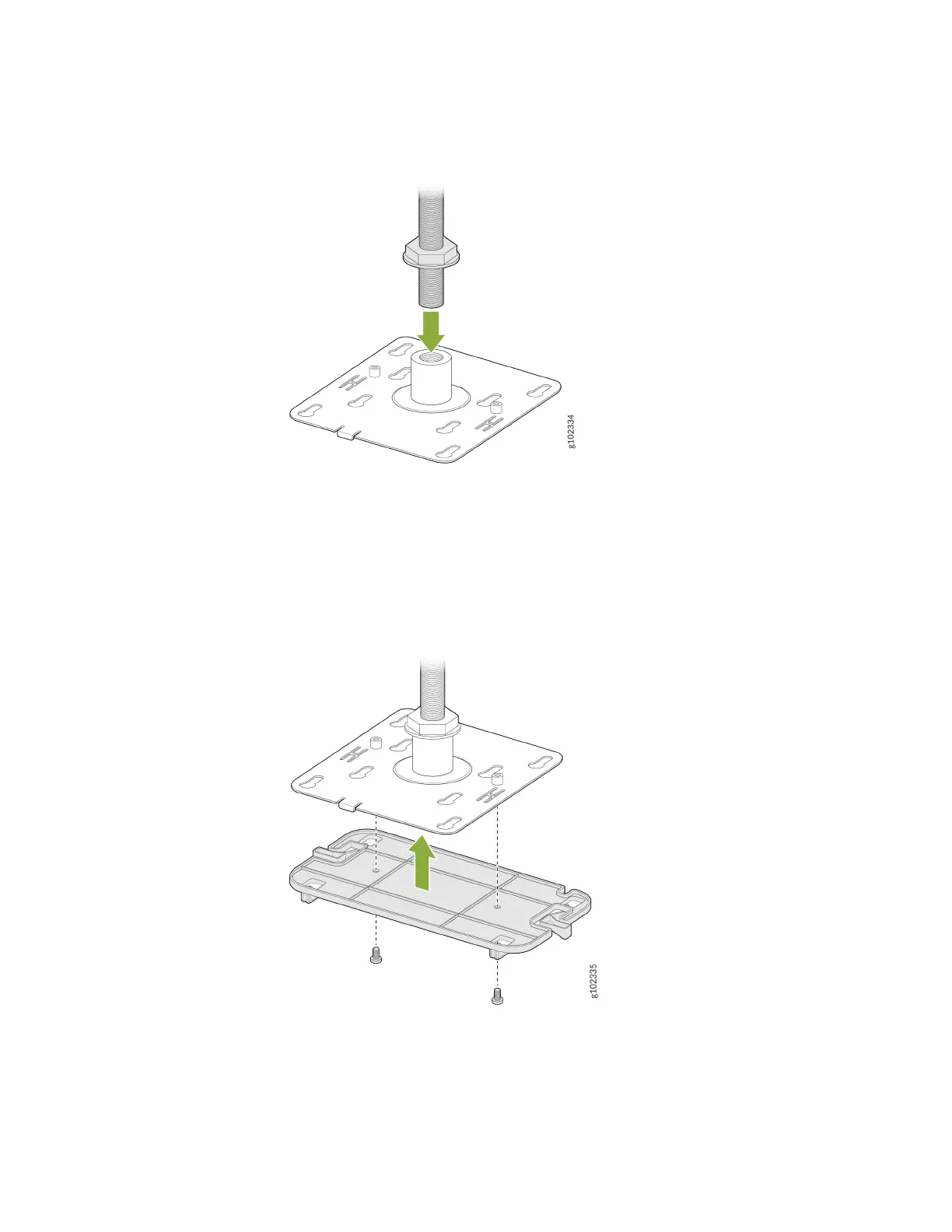

Figure 29: Aach the APBR-T58 Bracket to a 16-mm Threaded Rod
2. Aach the APBR-SW1 bracket adapter to the APBR-M16 mounng bracket using two screws
(provided with the AP).
Figure 30: Aach the APBR-SW1 Bracket Adapter to the APBR-M16 Mounng Bracket
3. Posion the AP such that the shoulder screws on the AP engage with the keyholes of the mounng
bracket. Slide and lock the AP in place.
30
