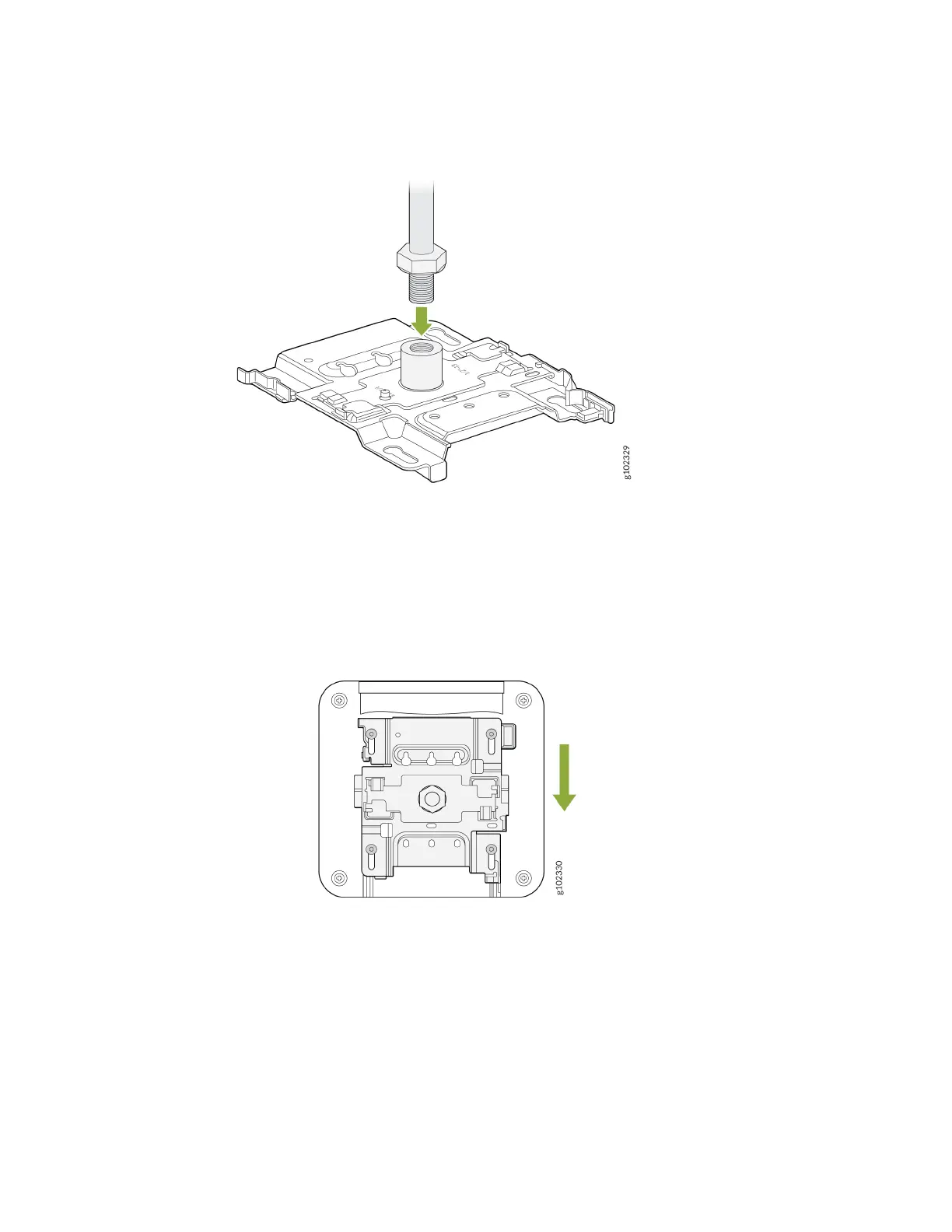

Figure 34: Aach the APBR-ADP-T12 and APBR-U Bracket Assembly to the ½-Inch Threaded Rod
4. Posion the AP such that the shoulder screws on the AP engage with the keyholes of the mounng
bracket. Slide and lock the AP in place.
Figure 35: Mount the AP on a 1/2-in. Threaded Rod
33
