CAUTION: Do not remove CompactFlash cards from a running device. If you remove
the card while data is being written to or copied from the CompactFlash card, data
can be lost or corrupted. Therefore, we strongly recommend that you shut down the
device before removing or inserting a CompactFlash card.
The front panel comprises the following components (see Figure 1 on page 4):
•
Power LED—Green when power is connected.
•
CompactFlash LED—Solid amber when the CompactFlash drive is in use.
•
Hardware LED—Quickly blinking red for a fan failure, slowly blinking red for the removable AC power
supply in use, and solid red when overheating.
•
Serial console port—Provides access, by means of an RJ-45 connector, to the command-line interface
(CLI).
•
Two traffic interface ports—Connect the appliance to your network, receiving and forwarding traffic,
over copper Ethernet 10/100/1000 interfaces.
•
USB port.
•
Slots for two removable interface modules in three versions:
•
4-port serial interface
•
4-port serial interface with multiservice daughter board
•
4-port T1/E interface
NOTE: The module slots are numbered 0 and 1 from left to right. If only one module is used,
it must be inserted in slot 0. Also, any single clock module must be connected to the CLK
connector in the left-most module slot 0.

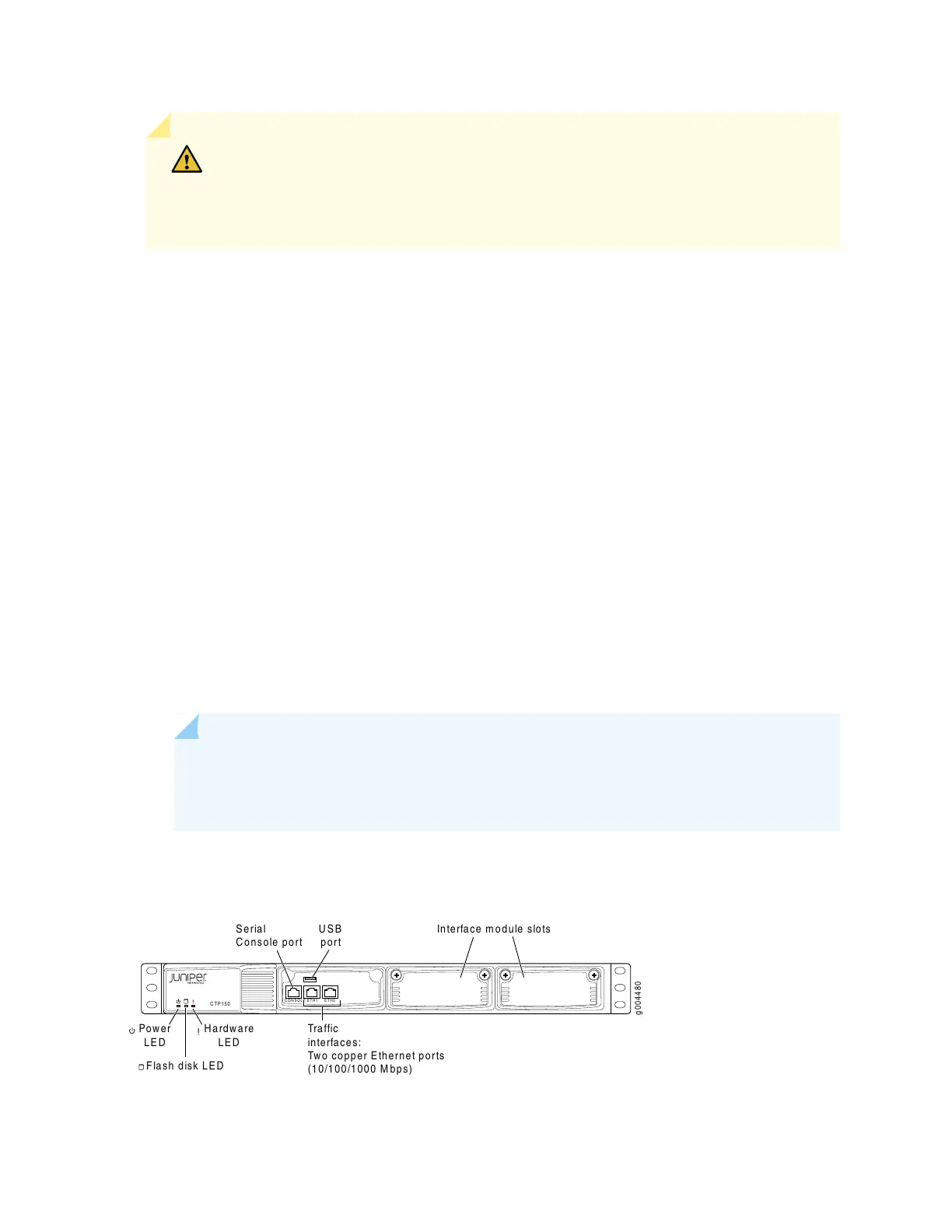

Figure 1: CTP150 Chassis (Front View)
CTP150
g004480
CONSOLE ETH1 ETH0
Power
LED
Hardware
LED
Serial
Console port
Traffic
interfaces:
Two copper Ethernet ports
(10/100/1000 Mbps)
USB
port
Flash disk LED
Interface module slots
