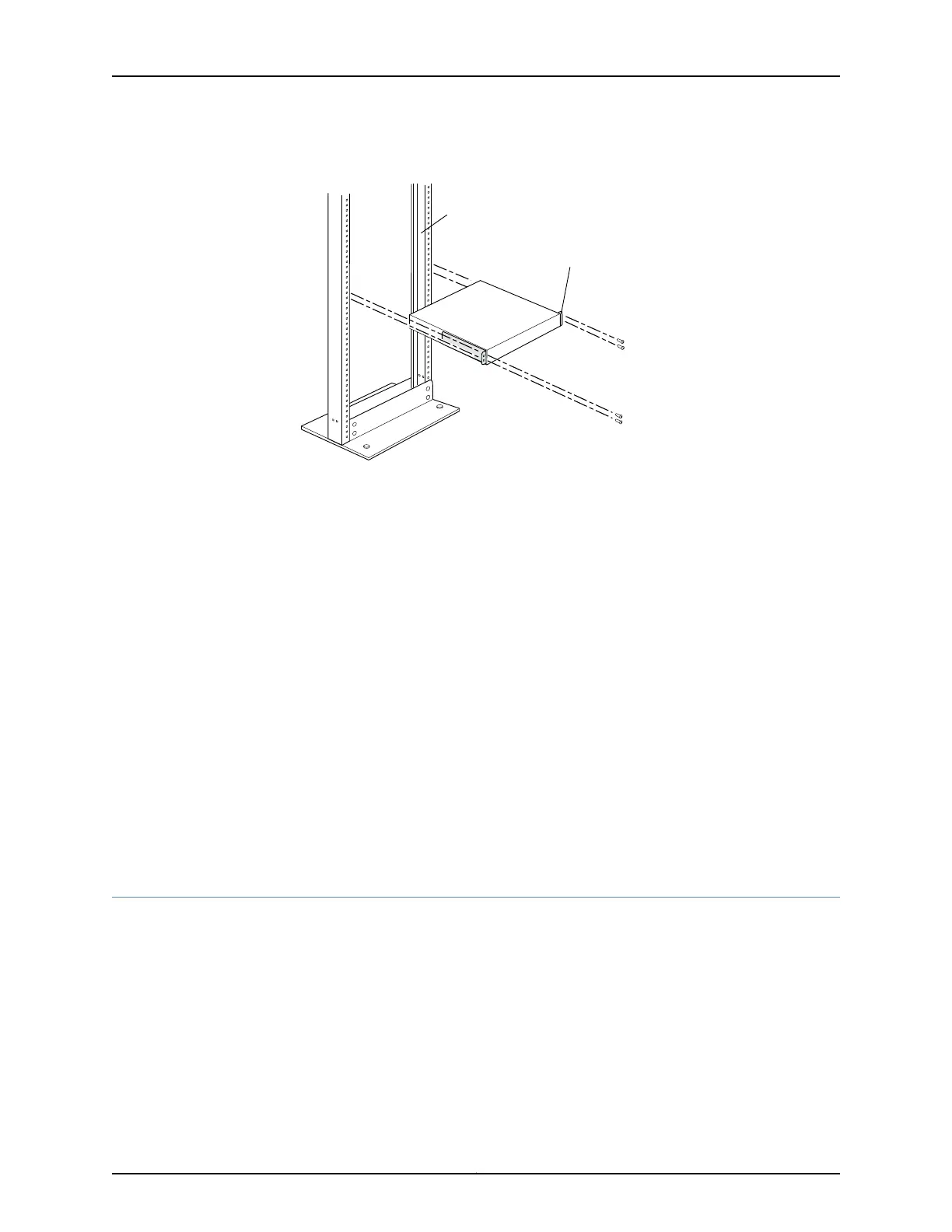

Figure 39: Mounting the Switch on Two Posts in a Rack
g020094
Mounting rack
Mounting bracket
7. Have a second person secure the switch to the rack by using the appropriate screws.
Tighten the screws.
8. Ensure that the switch chassis is level by verifying that all screws on one side of the
rack are aligned with the screws on the other side.
9. If the switch is an EX4200-24F model, we recommend that you insert dust covers
in any unused SFP ports.
Related Topics Connecting Earth Ground to an EX Series Switch on page 141•
• Connecting AC Power to an EX3200 or EX4200 Switch on page 147
• Connecting DC Power to an EX3200 or EX4200 Switch on page 149
• Connecting and Configuring an EX Series Switch (CLI Procedure) on page 165
• Connecting and Configuring an EX Series Switch (J-Web Procedure) on page 167
• Mounting an EX3200 or EX4200 Switch in a Recessed Position in a Rack or Cabinet
on page 128
• Rack-Mounting and Cabinet-Mounting Warnings for EX Series Switches on page 221
Mounting an EX3200 or EX4200 Switch on Four Posts in a Rack or Cabinet
You can mount an EX3200 or EX4200 switch on four posts of a 19-in. rack or cabinet by
using the separately orderable four-post rack-mount kit. (The remainder of this topic
uses “rack” to mean “rack or cabinet.”)
You can mount the switch on two posts in either a two-post rack or a four-post rack by
using the mounting brackets provided with the switch. See “Mounting an EX3200 or
EX4200 Switch on Two Posts in a Rack or Cabinet” on page 122.
Copyright © 2010, Juniper Networks, Inc.124
Complete Hardware Guide for EX3200 and EX4200 Ethernet Switches
