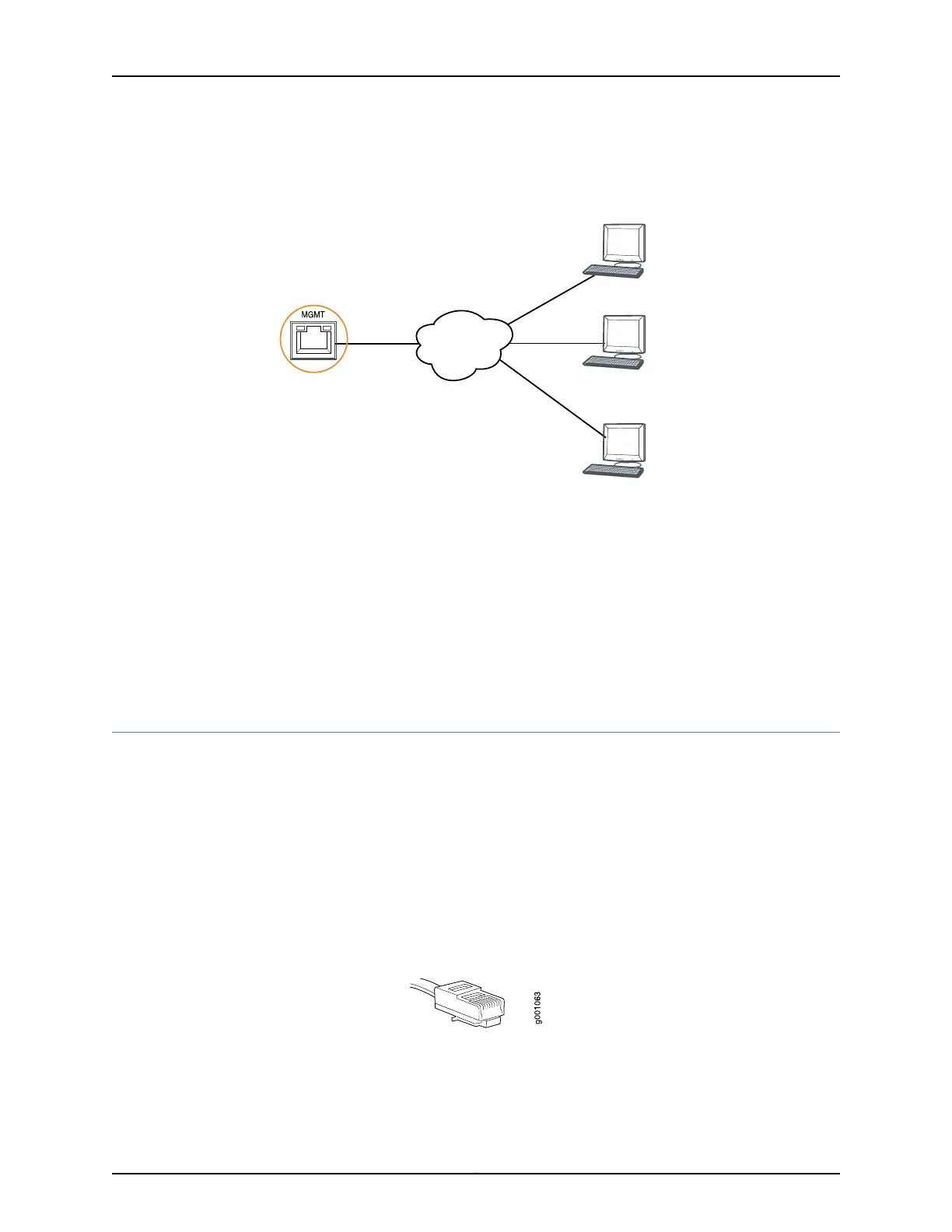

Figure 60: Connecting an EX Series Switch to a Network for Out-of-Band
Management
g020548
Management PC
Management PC
Management PC
To Management port
(on the switch)
Management
network
Related Topics Connecting an EX Series Switch to a Management Console on page 153•
• Management Port Connector Pinout Information for an EX2200 Switch
• Management Port Connector Pinout Information for an EX3200 or EX4200 Switch on
page 42
• Management Port Connector Pinout Information for an EX4500 Switch
• Management Port Connector Pinout Information for an EX8200 Switch
• Cables Connecting the EX8200 Switch to Management Devices
Connecting an EX Series Switch to a Management Console
You can configure and manage an EX Series switch using a dedicated console. Every EX
Series switch has a console port with an RJ-45 connector. Use the console port to connect
the EX Series switch to the management console or to a console server. The console
port accepts a cable with an RJ-45 connector.
Ensure that you have an Ethernet cable with an RJ-45 connector available. An RJ-45
cable and an RJ-45 to DB-9 serial port adapter are supplied with the switch.
Figure 61 on page 153 shows the RJ-45 connector of the Ethernet cable supplied with the
switch.
Figure 61: Ethernet Cable Connector
153Copyright © 2010, Juniper Networks, Inc.
Chapter 11: Connecting the Switch
