1. Attach the electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to
the ESD point on the chassis. There is an ESD point located next to the protective earthing terminal
and below PSU 5 on the MX10008 rear panel (see Figure 116 on page 222) and below PSU_9 on the
MX10016 rear panel (see Figure 117 on page 222).

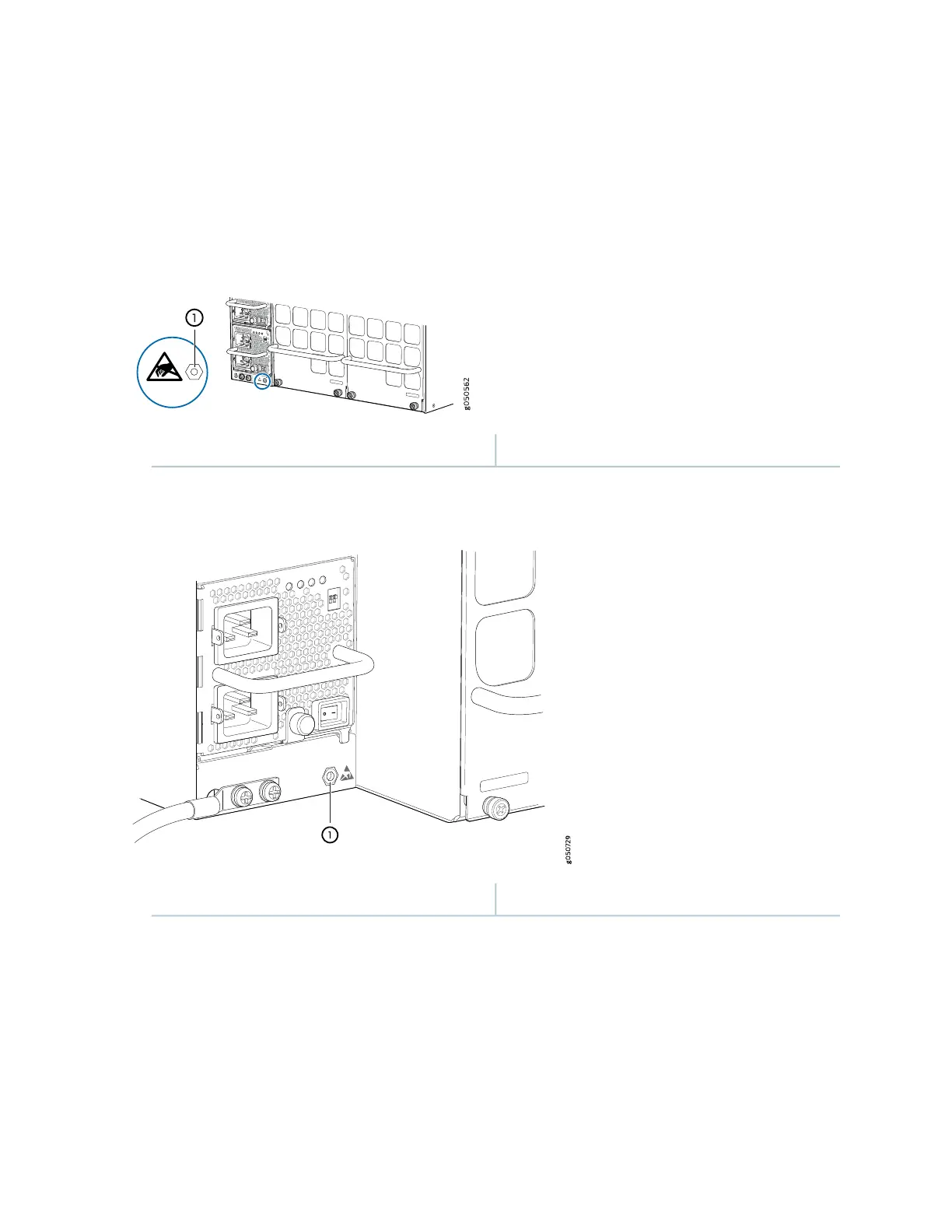

Figure 116: ESD Point on MX10008 Chassis Rear
1—ESD point
Figure 117: ESD Point on an MX10016 Chassis Rear
1—ESD point
2. Taking care not to touch power supply components, pins, leads, or solder connections, remove the
power supply from its bag.
