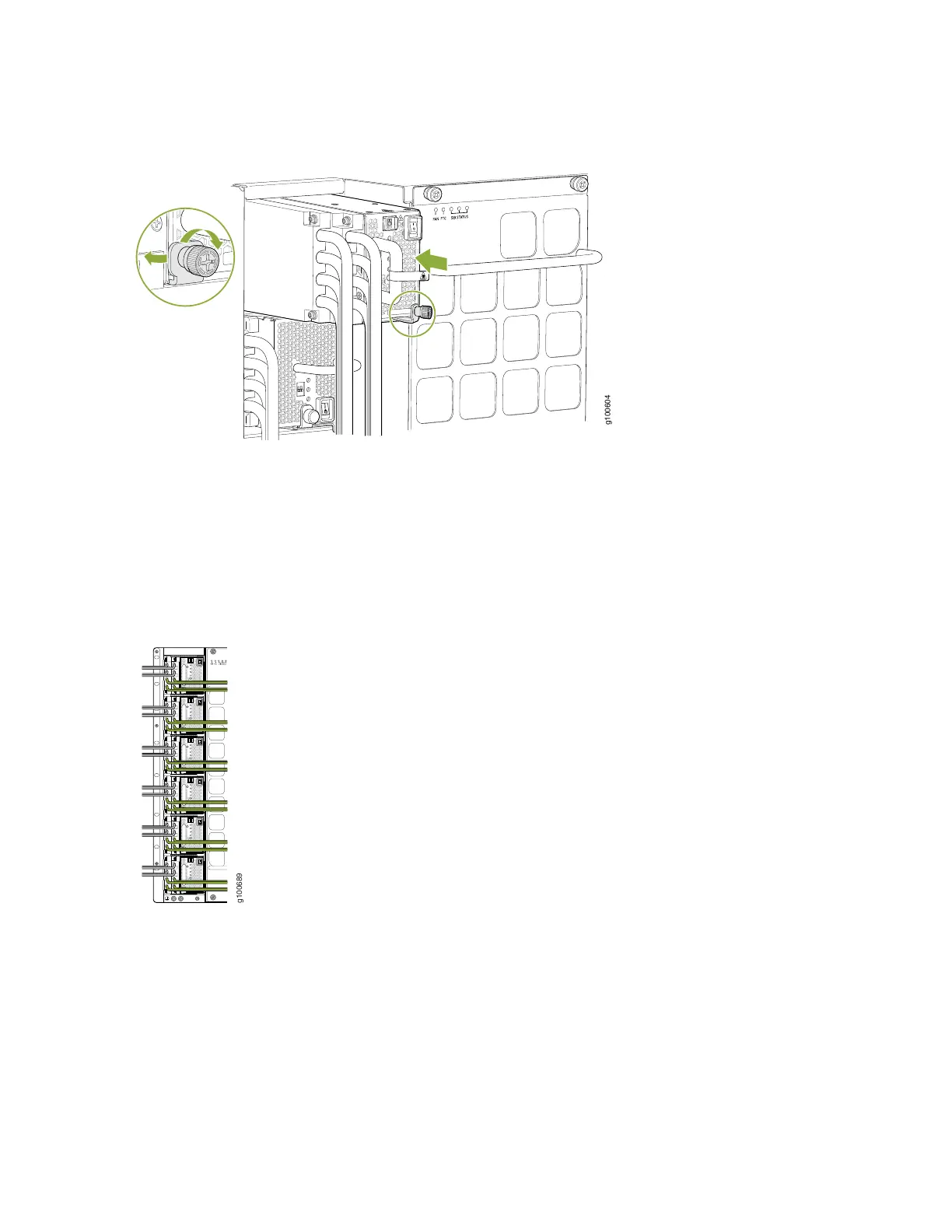

Figure 138: Installing a JNP10K-PWR-DC2 in an MX10016
17. Route INP1 cables to a power source and INP2 to another power source. The JNP10K-PWR-DC shares
power, so if power dips on one input, the power supply is able to load balance internally. See
Figure 139 on page 241 and Figure 140 on page 242.
Figure 139: Proper Load Balancing for JNP10k-PWR-DC2 Power Cables on MX10008
241
