Juniper MX10008 - Page 247

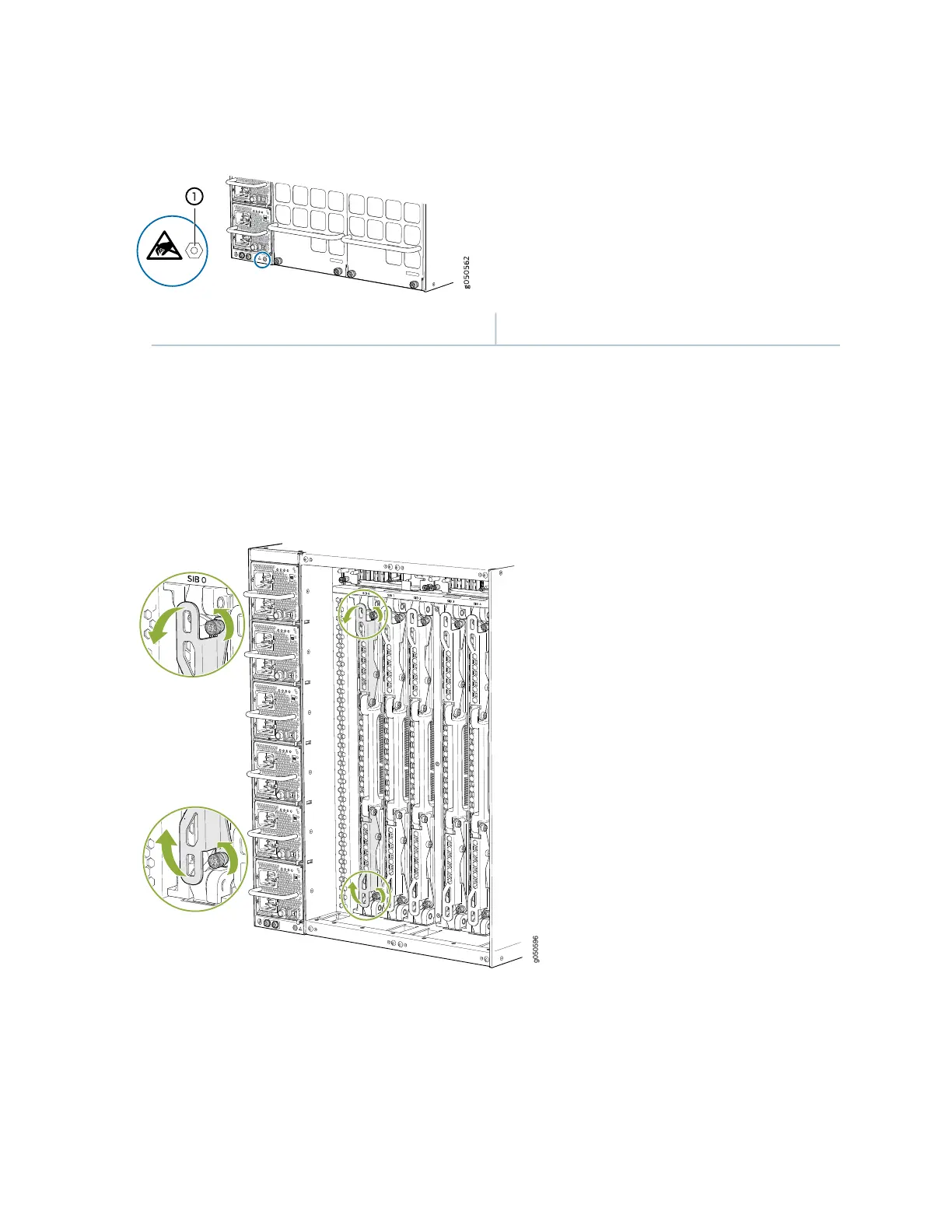

Figure 144: ESD Point on MX10008 Chassis Rear
1—ESD point
6. Loosen the captive screws at the top and bottom of the card.
7. Grasp both handles and spread them apart, and then slide the SFB about a quarter of the way out of
the slot. See Figure 145 on page 249.
Figure 145: Loosening Captive Screws and Spread Ejector Handles
g050596
8. Grasp the ejector handle with one hand and place your other hand under the SFB for support as you
slide the SFB out of the slot (see Figure 146 on page 250).
249
