You have removed the associated fan tray and fan tray controller. See “Removing a PTX10000 Fan Tray”
on page 258 and “Removing a PTX10000 Fan Tray Controller” on page 267.
Ensure that you have the following parts and tools available to install a fan tray controller into a PTX10000:
•
Electrostatic discharge (ESD) grounding strap
•
Replacement fan tray controller
•
A Phillips (+) screwdriver, number 1 for the captive screws
To install a fan tray controller:
1. Remove the replacement fan tray controller from the electrostatic bag.
2. Carefully slide the fan tray controller into the fan tray controller slot until it is flush with the mounting
holes. See Figure 126 on page 266 and Figure 127 on page 266.

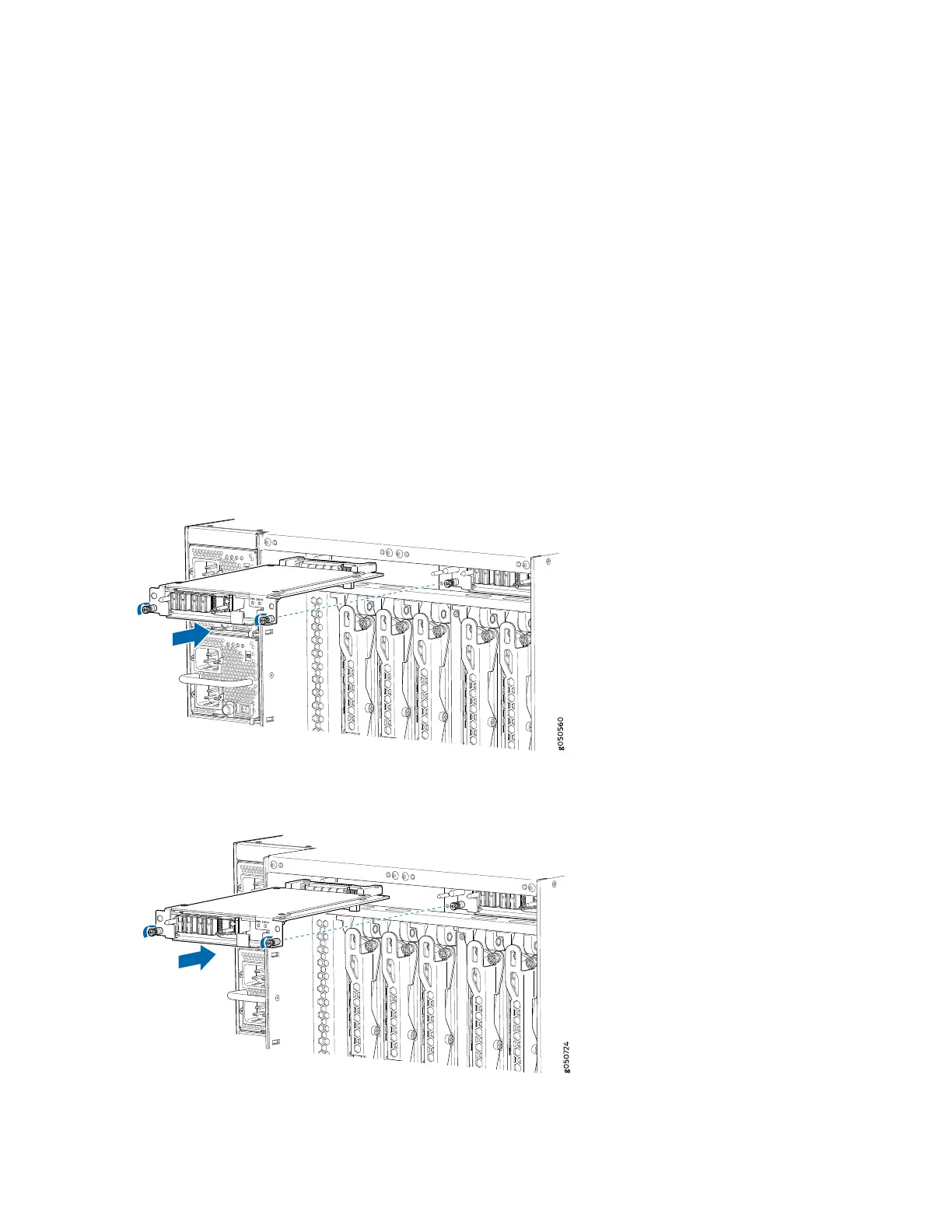

Figure 126: Replacing a PTX10008 Fan Tray Controller
Figure 127: Replacing a PTX10016 Fan Tray Controller
