3. Using a Phillips screwdriver, tighten the captive screws for the fan tray controller.
4. Replace the fan tray. See “Installing a PTX10000 Fan Tray” on page 252.
Removing a PTX10000 Fan Tray Controller
For each of the two fan trays, there is a fan tray controller. Each controller is a hot-removable and
hot-insertable field-replaceable unit (FRU); you can remove and replace one fan tray controller while the
router is running without turning off power to the router or disrupting routing functions. There are four
models of fan tray controller:.
•
JNP10008-FAN-CTRL, which supports fan tray JNP10008-FAN
•
JNP10008-FTC2, which supports fan tray JNP10008-FAN2
•
JNP10016-FAN-CTRL, which supports fan tray JNP10016-FAN
•
JNP10016-FTC2, which supports fan tray JNP10016-FAN2
See Figure 128 on page 267 for JNP10008-FAN-CTRL and Figure 129 on page 267.

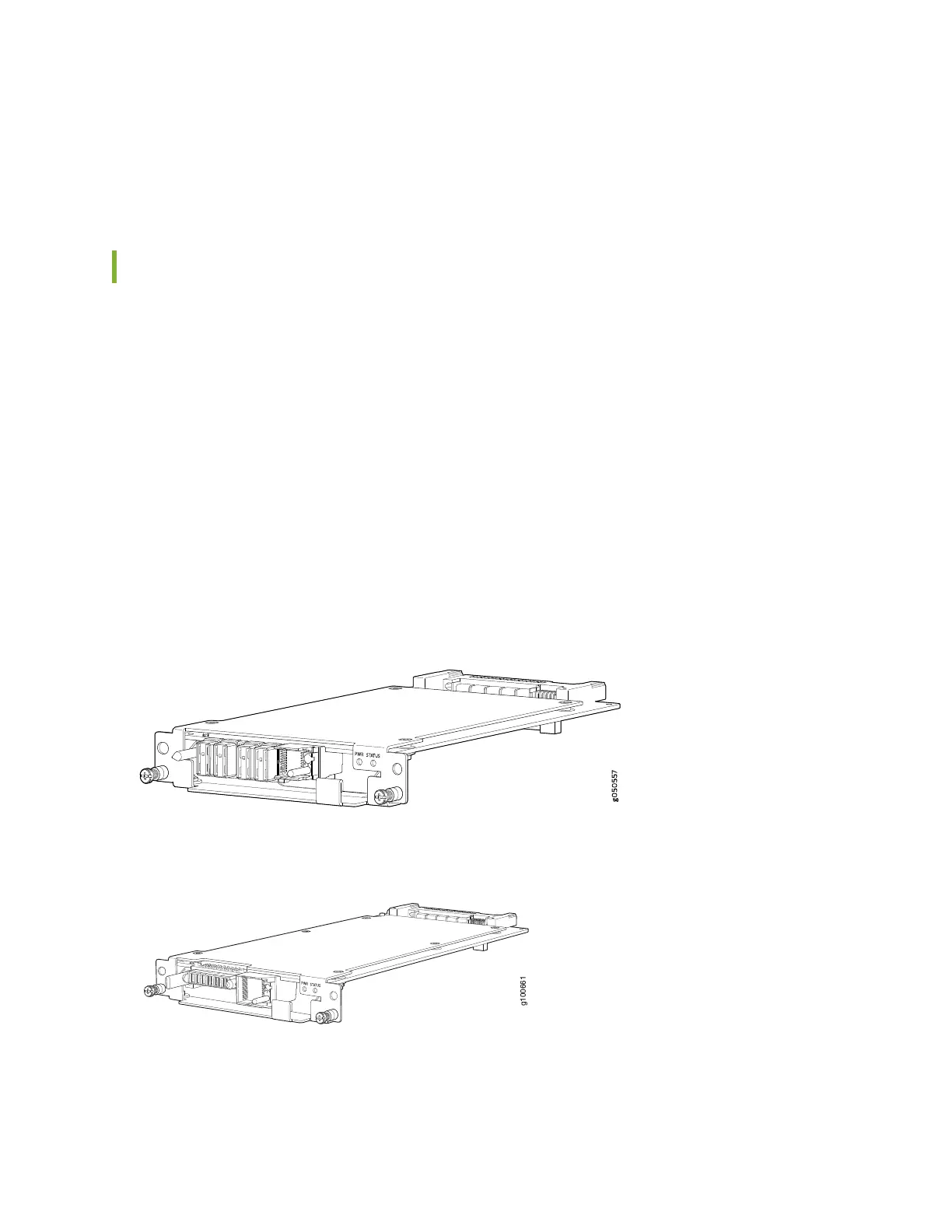

Figure 128: JNP10008-FAN-CTRL
Figure 129: JNP10008-FTC2
