The two fan trays install vertically, side-by-side, next to the power supplies on the FRU side of the chassis.
Two handles on each front faceplate are available to help remove or replace fans. See. Figure 19 on page 47
and Figure 20 on page 48.

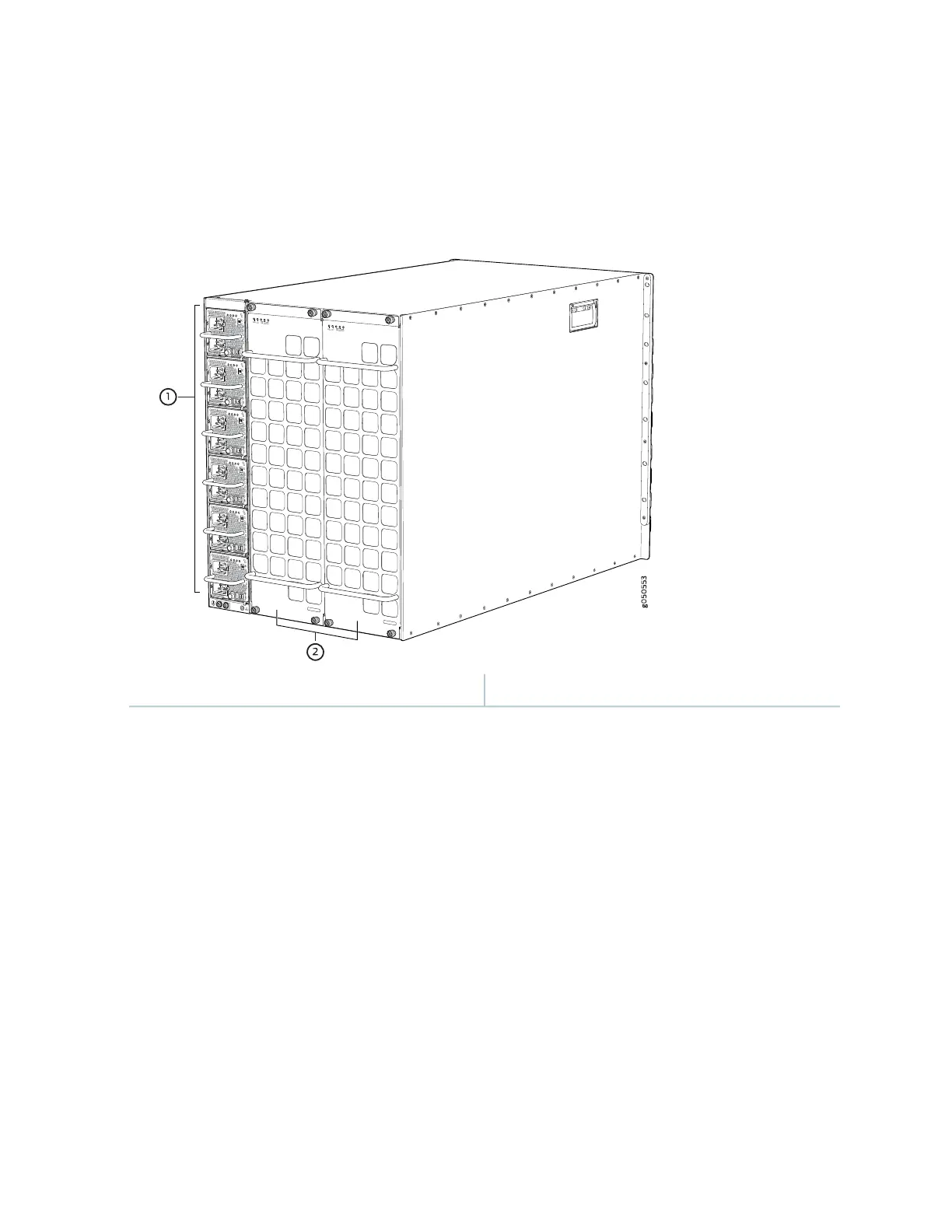

Figure 19: Installed JNP10008-FAN with JNP10K-PWR-AC Power Supplies in a PTX10008
FAN
FTC
SIB STATUS
FAN
FTC
SIB STATUS
2—1— Fan traysPower supplies
