This topic covers:
Routing and Control Board Status Panel LEDs
The RCB status panel LEDs indicate the state of the RCB (see Figure 43 on page 82).

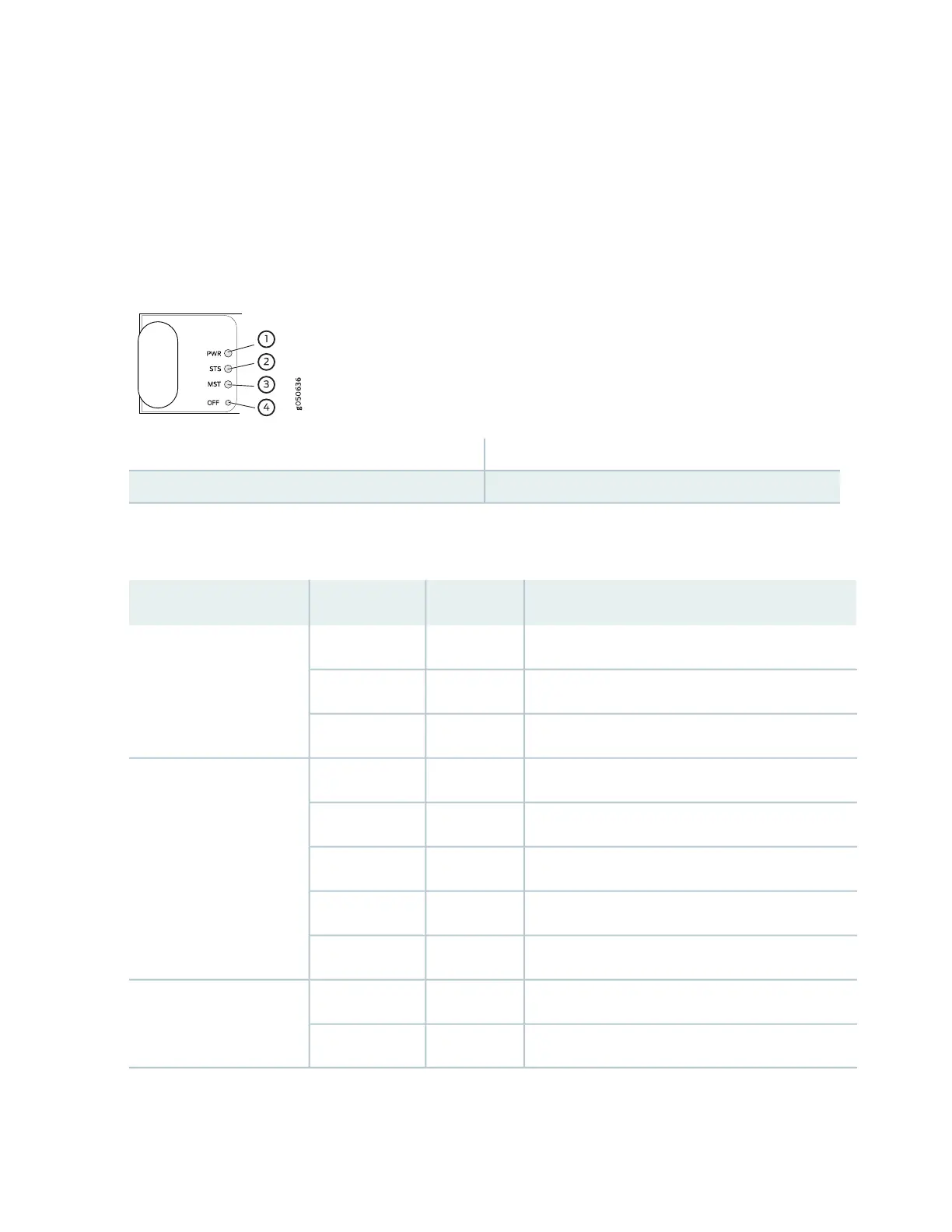

Figure 43: Routing and Control Board Status Panel LEDs
3—1— Master (MST) LEDPower (PWR) LED
4—2— Offline buttonStatus (STS) LED
Table 19 on page 82 describes the LEDs on the RCB status panel.
Table 19: Routing and Control Board (JNP10K-RE0 and JNP10K-RE1) Status LEDs
DescriptionStateColorLED
RCB is receiving adequate power.On steadilyGreenPWR
RCB has detected an error.BlinkingYellow
RCB is not powered up.UnlitDark
RCB is online and functioning correctly.On steadilyGreenSTS
The beacon feature is enabled.BlinkingGreen
RCB is booting.On steadilyYellow
The RCB has detected an error.BlinkingYellow
The power supply is switched off.UnlitDark
RCB is the master.On steadilyGreenMST
RCB is the backup.UnlitDark
82
