6. TECHNICAL INFORMATION

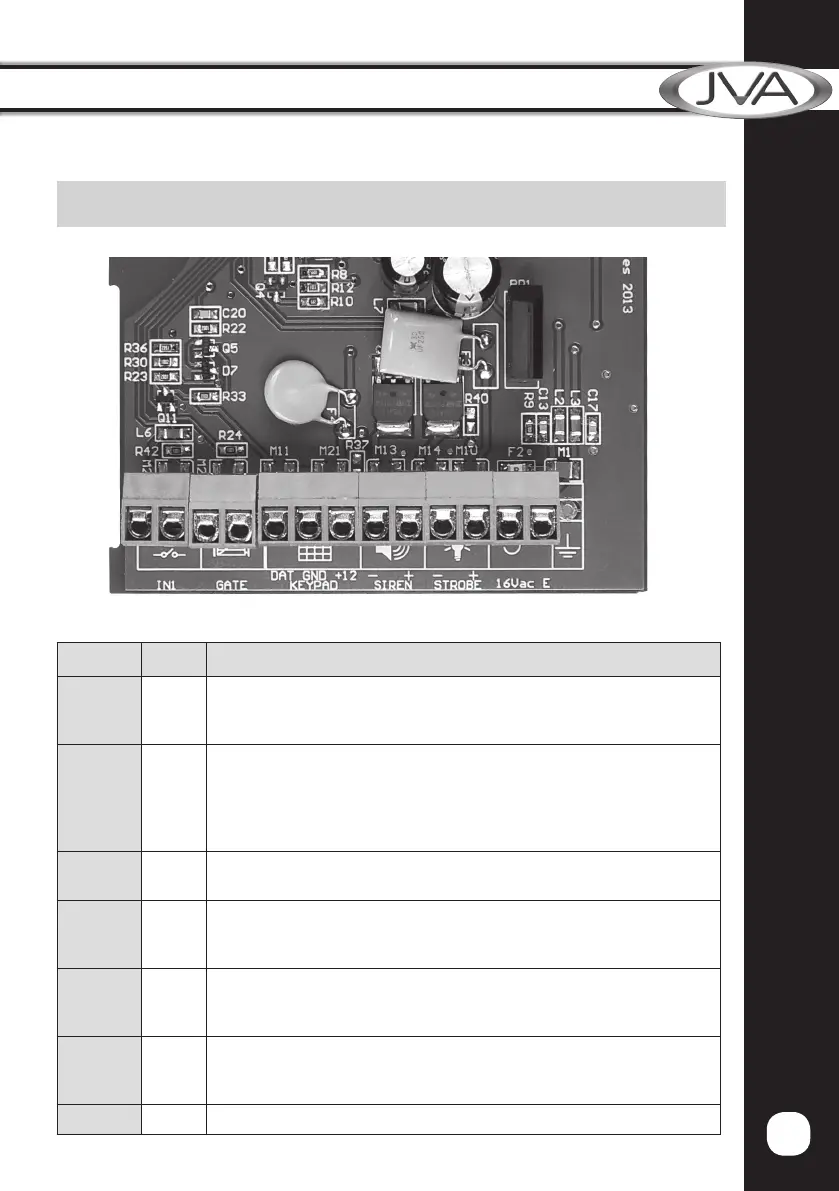

Low Voltage Terminals
Label Type Description
IN1 2 Way Energizer control input 1 (dry contact normally open) internally wired in
parallel with the key switch. Can be used for a remote switch or a radio
receiver. The receiver may be powered from the keypad +12V terminal.
GATE 2 Way Energizer control input 2 (dry contact). Default function is Gate input,
normally closed. When the unit is armed and the gate is opened, it will
trigger the Gate alarm. Alternatively, this input can be programmed to
make the energizer alternate between Low Voltage and High Voltage
mode.
KEYPAD 3 Way Supplies power and data line for an external keypad. The +12 source
on these terminals is protected with 1A self resetting fuse.
SIREN 2 Way Switched 12V output. Low side switched. 30W max (including Siren).
A buffer relay should be used when connecting these outputs to an
alarm panel.
STROBE 2 Way Switched 12V output. Low side switched. 30W max (including Strobe).
A buffer relay should be used when connecting these outputs to an
alarm panel.
16Vac 3 Way 16Vac 2.5A power input plus earth. Connection of the earth is only
required where local safety or wiring codes demand it. This should be
connected to the cabinet or mains earth NOT the fence earth.
Batt 2 Way
To Next Page
