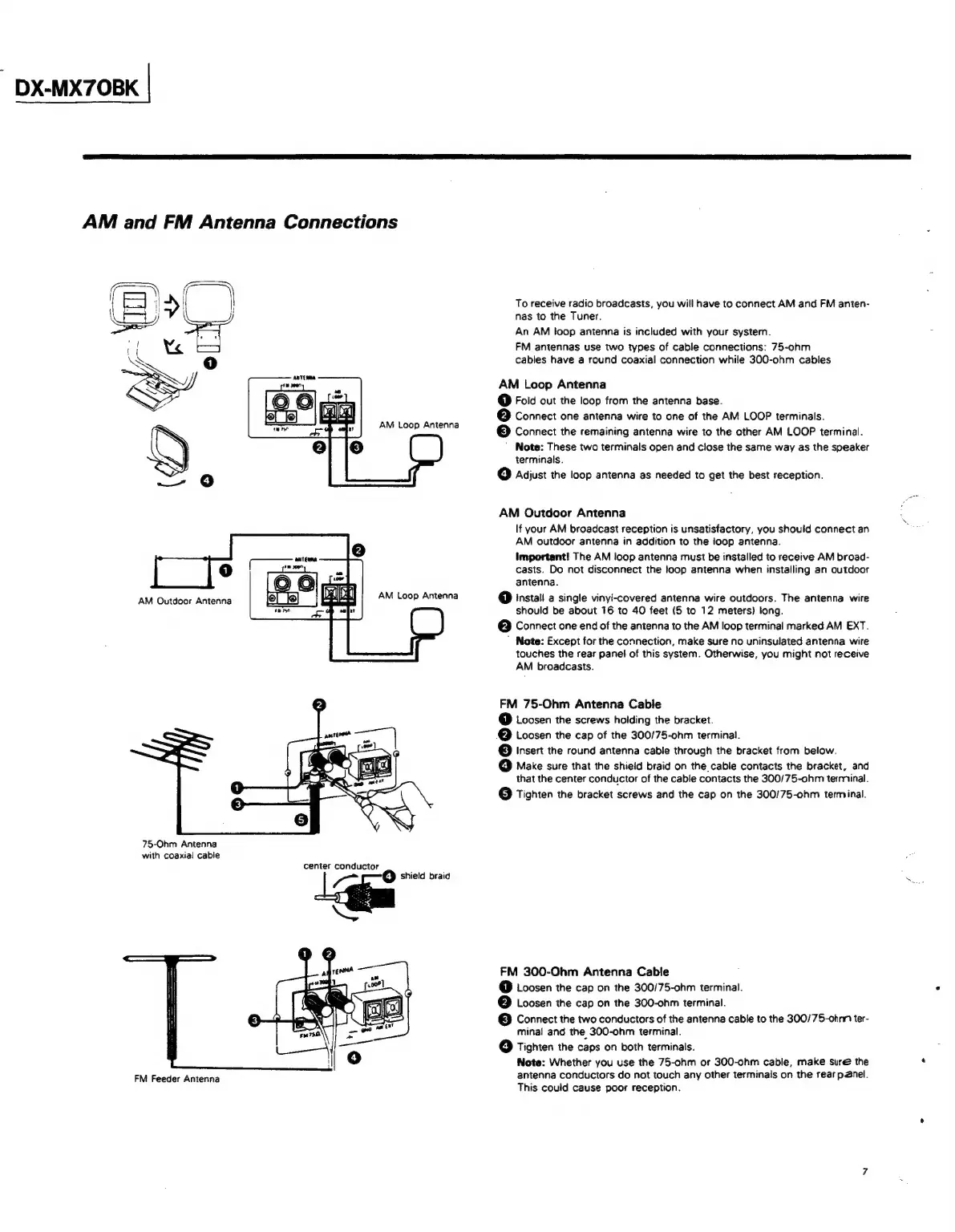

DX-MX70OBK
AM
and
FM
Antenna
Connections
To
receive
radio
broadcasts,
you
will
have
to
connect
AM
and
FM
anten-
nas
to
the
Tuner.
An
AM
loop
antenna
is
included
with
your
system.
FM
antennas
use
two
types
of
cable
connections:
75-ohm
cables
have
a
round
coaxial
connection
while
300-ohm
cables
AM
Loop
Antenna
@
Fold
out
the
loop
from
the
antenna
base.
©
Connect
one
antenna
wire
to
one
of
the
AM
LOOP
terminals.
(3)
Connect
the
remaining
antenna
wire
to
the
other
AM
LOOP
terminal.
’
Note:
These
two
terminals
open
and
close
the
same
way
as
the
speaker
terminals.
8
Adjust
the
loop
antenna
as
needed
to
get
the
best
reception.
AM
Loop
Antenna
AM
Outdoor
Antenna
If
your
AM
broadcast
reception
is
unsatisfactory,
you
shouid
connect
an
AM
outdoor
antenna
in
addition
to
the
loop
antenna.
Important!
The
AM
loop
antenna
must
be
installed
to
receive
AM
broad-
casts.
Do
not
disconnect
the
loop
antenna
when
installing
an
outdoor
antenna.
AM
Loop
Antenna
@
install
a
single
vinyi-covered
antenna
wire
outdoors.
The
antenna
wire
should
be
about
16
to
40
feet
(5
to
12
meters)
long.
@
Connect
one
end
of
the
antenna
to
the
AM
loop
terminal
marked
AM
EXT.
’
Note:
Except
for
the
connection,
make
sure
no
uninsulated
antenna
wire
touches
the
rear
panel
of
this
system.
Otherwise,
you
might
not
receive
AM
broadcasts.
Ei
AM
Outdoor
Antenna
FM
75-Ohm
Antenna
Cable
C1)
Loosen
the
screws
hoiding
the
bracket.
2)
Loosen
the
cap
of
the
300/75-ohm
terminal.
©
Insert
the
round
antenna
cable
through
the
bracket
from
below.
©
Make
sure
that
the
shield
braid
on
the
cable
contacts
the
bracket,
and
that
the
center
conductor
of
the
cable
contacts
the
300/75-ohm
terminal.
@
Tighten
the
bracket
screws
and
the
cap
on
the
300/75-ohm
terminal.
75-Ohm
Antenna
with
coaxial
cable
center
conductor
ce
©
shield
braid
FM
300-Ohm
Antenna
Cable
0
Loosen
the
cap
on
the
300/75-ohm
terminal.
2]
Loosen
the
cap
on
the
300-ohm
terminal.
©
Connect
the
two
conductors
of
the
antenna
cable
to
the
300/75-ohm
ter-
minal
and
the
300-ohm
terminal.
OQ
Tighten
the
caps
on
both
terminals.
Note:
Whether
you
use
the
75-ohm
or
300-ohm
cable,
make
suré
the
antenna
conductors
do
not
touch
any
other
terminals
on
the
rearp3nel.
This
could
cause
poor
reception.
FM
Feeder
Antenna
