| DX-MX70BK

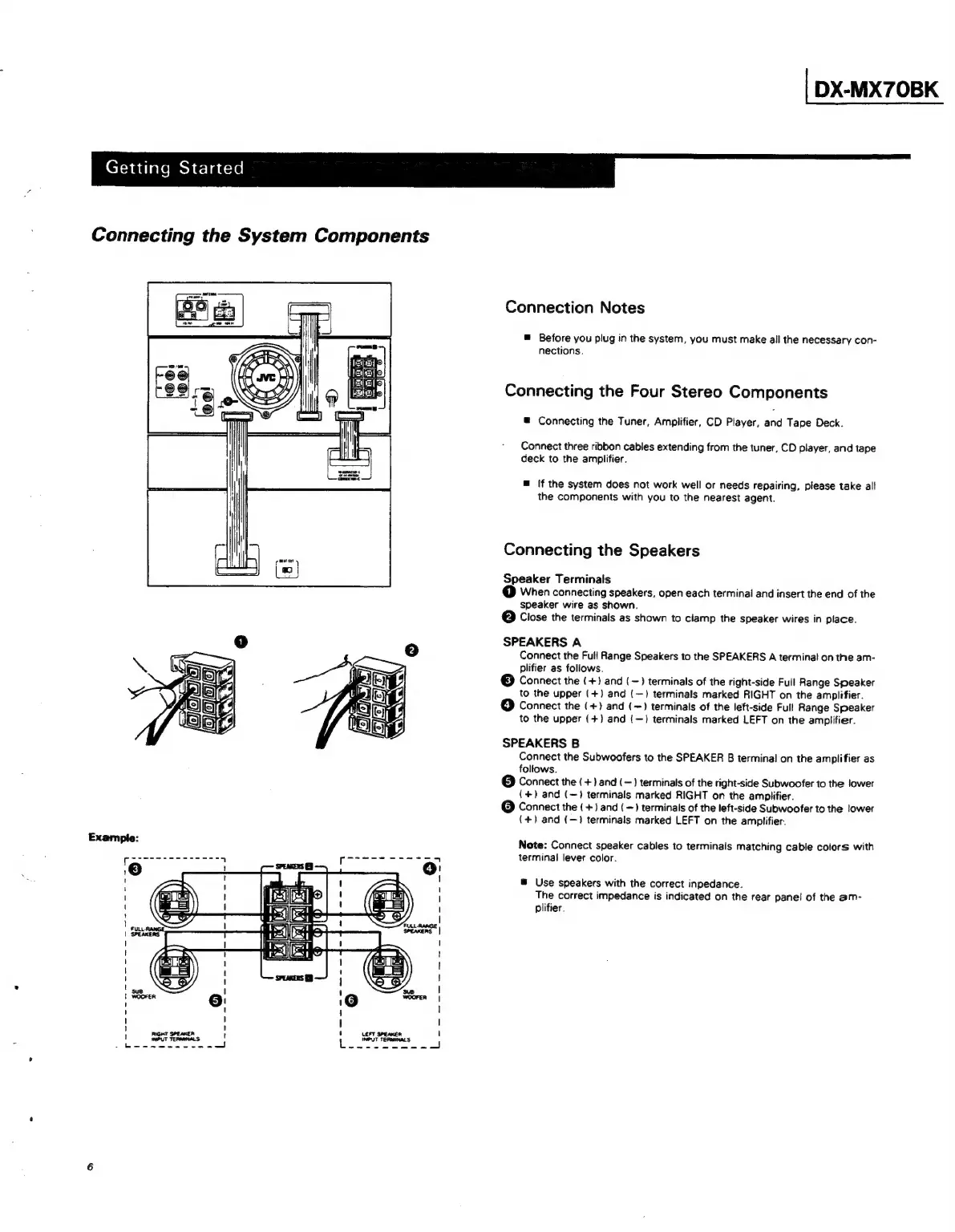

Connecting the System Components
Connection Notes
® Before you plug in the system, you must make all the necessary con-
nections.
Connecting the Four Stereo Components
® Connecting the Tuner, Amplifier, CD Player, and Tape Deck.
Connect three ribbon cables extending from the tuner, CD player, and tape
deck to the amplifier.
| If the system does not work well or needs repairing, please take all
the components with you to the nearest agent.
Connecting the Speakers
Speaker Terminals
1) When connecting speakers, open each terminal and insert the end of the
speaker wire as shown.
(2) Close the terminals as shown to clamp the speaker wires in place.
SPEAKERS A
Connect the Full Range Speakers to the SPEAKERS A terminal on the am-
plifier as follows.
© Connect the (+) and (—) terminals of the right-side Full Range Speaker
to the upper (+) and (—) terminals marked RIGHT on the amplifier.
© Connect the (+) and (—) terminals of the left-side Full Range Speaker
to the upper (+) and (—) terminals marked LEFT on the amplifier.
SPEAKERS B
Connect the Subwoofers to the SPEAKER B terminal on the amplifier as
follows.
(5) Connect the (+) and (—) terminals of the right-side Subwoofer to the lower
(+) and (—} terminals marked RIGHT on the amplifier.
© Connect the { +) and (—) terminals of the left-side Subwoofer to the lower
(+) and (—) terminals marked LEFT on the amplifier.
Note: Connect speaker cables to terminals matching cable colors with
'hdaiaieiiateieiatetaiate 4 frrtct ccc ts - terminal lever color.
& Use speakers with the correct inpedance.
The correct impedance is indicated on the rear panel of the am-
plifier.
im
pes
a
E!
HEI Eite
