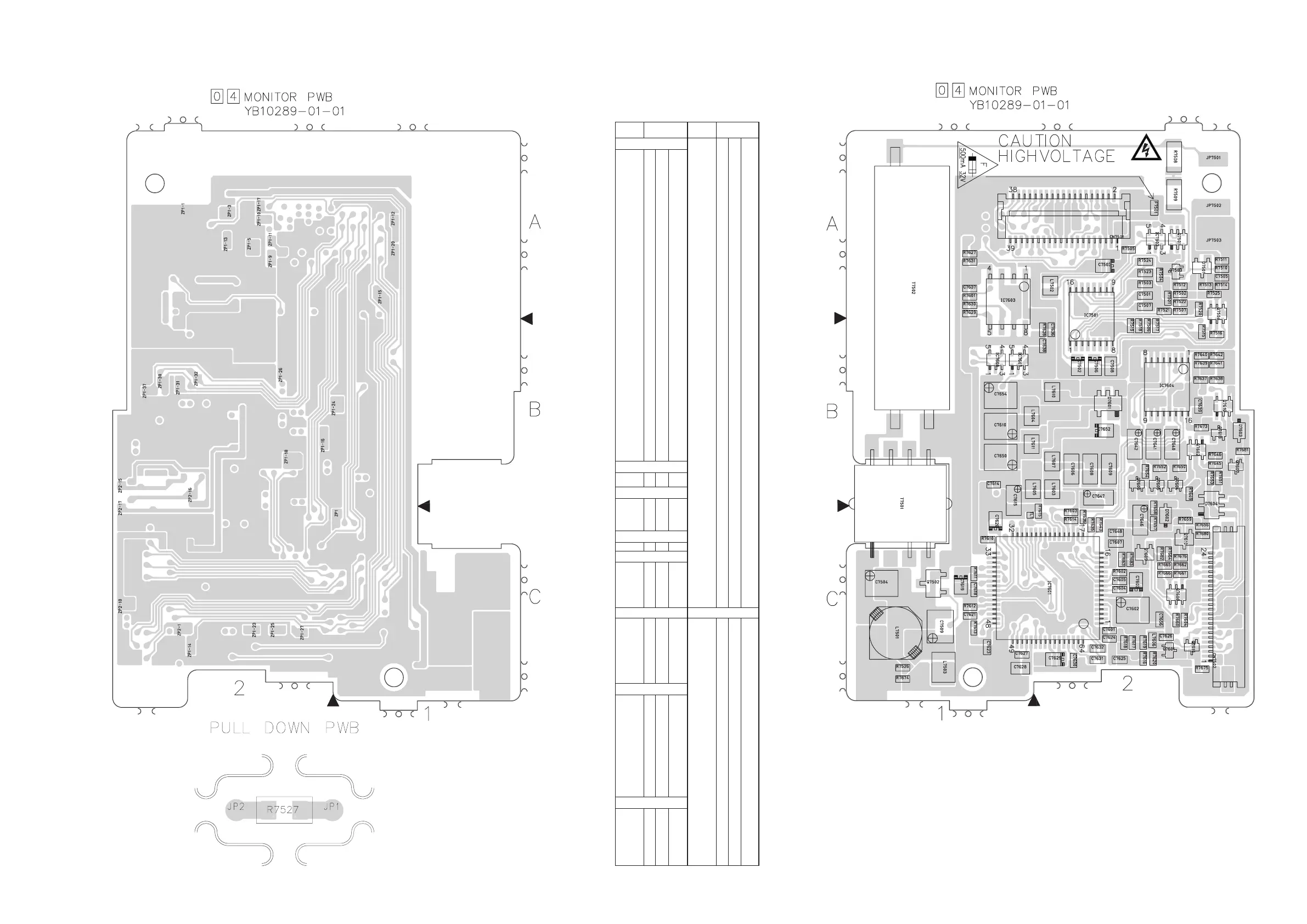

4.34 MONITOR AND PULL DOWN CIRCUIT BOARDS
4-73 4-74
— MONITOR —
— PULL DOWN —
FOIL SIDE (B)
COMPONENT SIDE (A)
YB20835
(FOR DVX8EG/DVX9EG/EK/DVX10EG)
C7501 A C 2A
C7502 A C 2B
C7503 A C 2A
C7504 A C 1C
C7505 A C 2A
C7506 A C 2B
C7507 A C 2A
C7508 A C 2B
C7509 A C 1C
C7601 A C 2C
C7602 A C 2C
C7603 A C 2C
C7604 A C 2C
C7605 A C 2C
C7606 A C 2B
C7607 A C 2C
C7608 A C 2B
C7609 A C 2B
C7610 A C 1B
C7614 A C 1B
C7615 A C 1C
C7618 A C 1C
C7619 A C 1C
C7620 A C 1C
C7621 A C 1C
C7623 A C 1C
C7624 A C 2C
C7625 A C 2C
C7626 A C 2C
C7627 A C 1C
C7628 A C 1C
C7629 A C 2C
C7630 A C 2C
C7631 A C 2C
C7632 A C 2C
C7636 A C 2B
C7637 A C 1A
C7638 A C 2B
C7639 A C 2B
C7640 A C 2B
C7641 A C 2B
C7642 A C 2B
C7646 A C 2C
C7647 A C 2B
C7648 A C 2C
C7650 A C 1B
C7652 A C 2B
C7654 A C 1B
C7656 A C 2C
CN7501 A C 2A
CN7502 A C 2C
D7501 A C 2A
D7601 A C 2B
D7602 A C 2C
D7603 A C 2B
D7604 A C 2C
F7501 A C 2A
IC7501 A C 2B
IC7502 A C 2A
IC7601 A C 2C
IC7603 A C 1A
IC7604 A C 2B
IC7607 A C 1B
IC7608 A C 1B
L7501 A C 1C
L7502 A C 2A
L7503 A C 1C
L7603 A C 2B
L7604 A C 1B
L7605 A C 1B
L7606 A C 2C
L7607 A C 2B
L7610 A C 2B
L7611 A C 1B
Q7501 A C 2A
Q7502 A C 1C
Q7503 A C 2A
Q7504 A C 2B
Q7601 A C 2C
Q7602 A C 2B
Q7604 A C 2B
Q7605 A C 2B
Q7606 A C 2B
Q7607 A C 2B
Q7608 A C 2C
Q7609 A C 2C
Q7610 A C 2C
Q7615 A C 2C
Q7616 A C 2B
Q7618 A C 2B
R7501 A C 2A
R7502 A C 2A
R7503 A C 2A
R7504 A C 2A
R7505 A C 2A
R7506 A C 2B
R7507 A C 2A
R7508 A C 2A
R7509 A C 2A
R7510 A C 2A
R7511 A C 2A
R7512 A C 2A
R7513 A C 2A
R7514 A C 2A
R7515 A C 2B
R7516 A C 2B
R7517 A C 2B
R7518 A C 2B
R7519 A C 2B
R7520 A C 2A
R7521 A C 2A
R7522 A C 2A
R7523 A C 2A
R7524 A C 2A
R7525 A C 2A
R7526 A C 1C
R7601 A C 1A
R7602 A C 2C
R7603 A C 2C
R7604 A C 2C
R7610 A C 1C
R7611 A C 1C
R7612 A C 1C
R7613 A C 1C
R7614 A C 2C
R7615 A C 2C
R7616 A C 2C
R7617 A C 2C
R7618 A C 2C
R7619 A C 2C
R7620 A C 2C
R7627 A C 1A
R7628 A C 2B
R7629 A C 1B
R7630 A C 1A
R7631 A C 1A
R7635 A C 2C
R7636 A C 2C
R7637 A C 2B
R7638 A C 2B
R7639 A C 2B
R7640 A C 2B
R7641 A C 2B
R7642 A C 2B
R7643 A C 2C
R7645 A C 2B
R7646 A C 2B
R7649 A C 2B
R7650 A C 2B
R7651 A C 2B
R7652 A C 2B
R7653 A C 2B
R7654 A C 2B
R7656 A C 2C
R7657 A C 2C
R7658 A C 2C
R7659 A C 2C
R7660 A C 2C
R7661 A C 2C
R7662 A C 2C
R7663 A C 2C
R7664 A C 2C
R7665 A C 2C
R7666 A C 2C
R7673 A C 2B
R7674 A C 1C
R7675 A C 2C
R7676 A C 2C
R7680 A C 2C
R7681 A C 2B
R7682 A C 2C
R7683 A C 2C
JP7501 A C 2A
JP7502 A C 2A
JP7503 A C 2A
T7501 A C 1C
T7502 A C 1A
TL1 A C 1C
ZP1 B C 1C
ZP1-1 B C 2A
ZP1-3 B C 2A
ZP1-5 B C 2A
ZP1-9 B C 2A
ZP2-1 B C 2C
ZP1-10 B C 2A
ZP1-11 B C 2A
ZP1-12 B C 1A
ZP1-13 B C 2A
ZP1-14 B C 2C
ZP1-15 B C 1A
ZP1-16 B C 2B
ZP1-17 B C 2A
ZP1-18 B C 2B
ZP1-20 B C 1A
ZP1-23 B C 2C
ZP1-24 B C 1B
ZP1-25 B C 2C
ZP1-26 B C 2B
ZP1-27 B C 2C
ZP1-30 B C 2B
ZP1-31 B C 2B
ZP1-32 B C 2B
ZP1-37 B C 2B
ZP2-10 B C 2C
ZP2-15 B C 2B
ZP2-16 B C 2B
ZP2-17 B C 2C
CONNECTOR
DIODE
CAPACITOR
TRANSISTOR
IC
COMPONENT PARTS
LOCATION GUIDE (MONITOR)
REF.No. LOCATION
REF.No. LOCATION
RESISTOR
OTHER
FUSE
COIL
