JVC GR-DVX8EG - Disassembly of 0 E Vf Assembly; VF Assembly

1-9
7
6
EYE CUP
GUIDE(VF)
CASE/CAP
2
CAP
(VF)
1
3
4
5
HOLDER
(LCD)
LCD MODULE
B/L SUB ASSY
FRAME(VF)
FFC
EYE PIECE
SUB ASSY
NOTE e
5
(L b)
5
a
(L a)
5
NOTE f
5
NOTE d
5

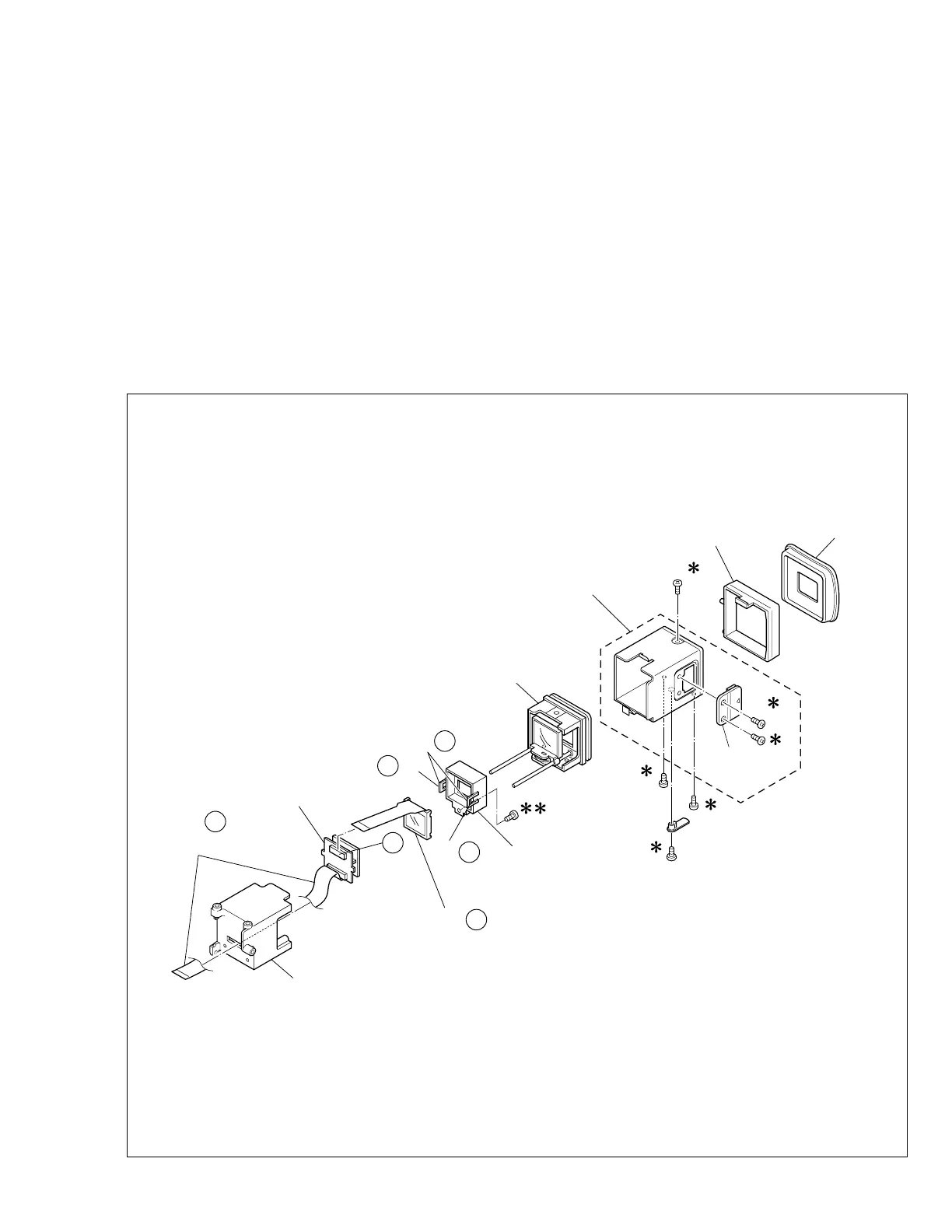

1.5 DISASSEMBLY OF 0 E VF ASSEMBLY
1.5.1 0E VF assembly
Note5a:
When disassembling the E VF assembly, remove
the frame (VF) from the case assembly depending
on the situation.
Note5b: Be very careful not to get the inside of the VF soiled
or dusty during and after disassembling the E VF
assembly.
Note5c: After the screw having the loose-proof tip was once
removed from the E VF assembly, don’t reuse it.
1. Remove the eyecup and pull out the guide (VF).
2. Draw the frame (VF) out of the case assembly.
<Case assembly>
3. Remove the screw (1) first and then lever (VF).
4. Remove the three screws (2-4) and draw out the eyepiece
Fig. 1-5-1
sub assembly.
<Frame (VF)>
5. Remove the screw (5) first and then LCD module/holder
(LCD).
Note5d:
Pay heed to the FFC not to damage it during the
removing work.
6. Get the two hooks (L5a, L5b) disengaged and then
remove the holder (LCD).
Note5e:
Carefully proceed with the above-mentioned work
not to damage any part.
7. Disconnect the connector (a) and remove the LCD module.
Note5f: Pay heed the parts not to damage any thing.
✽ : 0.069N·m (0.7kgf·cm)
✽✽ : 0.098N·m (1.0kgf·cm)
