SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the ! symbol are critical for safety. Replace only with specified part numbers.
5.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
5-1 5-2
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- ----------------------------------------------------- ----------------- ----------------------- -----------------------------------------------------
✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽
PACKING AND ACCESSORY ASSEMBLY
<M1>
1 LY31717-004A PACKING CASE,B
LY31717-006A PACKING CASE,D
LY31717-020A PACKING CASE,F
LY32032-001A PACKING CASE,C
LY32032-002A PACKING CASE,A
LY32032-003A PACKING CASE,E
2 LY20588-001A CUSHION
3 LY30023-003A POLY BAG
!
4 LY31174-003B BATTERY PACK,BN-V507U-E
!
5 LY20603-002B
AC ADAPTER CHARGER,AA-V51EG,A,C,E
!
LY20603-003B
AC ADAPTER CHARGER,AA-V51EK,B,D,F
!
6 LY20590-004A DOCKING STATION,CU-V502E,C,D,E,F
!
LY20590-005A DOCKING STATION,CU-V503E,A,B
7 LY20543-002A REMOTE CONTROL UNIT,RM-V716U
8 LY31133-013A CD ROM,C,D,E,F
LY31133-015A CD ROM,A,B
9 QAM0262-002 MULTIMEDIA CARD,C,D,E,F
10 LY31176-005B DC CORD
15 QAM0120-001 CABLE ASSY,AUDIO/VIDEO CABLE
16 QQR0918-002 CORE FILTER
17 QAM0084-001 PC CONNECTION CABLE
18 QQR0918-002 CORE FILTER
19 QAM0214-001 RM(EDITING)CABLE
20 QQR0491-002 CORE FILTER
23 – BATTERY,AAA(R03),X2
24 QAM0129-001 JLIP CABLE
25 QQR0491-002 CORE FILTER,C,D,E,F
QQR0855-003 NOISE FILTER,A,B
26 QPGA017-03005 POLY BAG
27 QPA02003006 POLY BAG,A,C,E
YQM30061-3 POLY BAG,B,D,F
28 YQ43558 CLEANING CLOTH
!
30 LYT0629-001A IB(EN),C,D,E,F
!
LYT0629-002B IB(GE),C,E
!
LYT0629-003B IB(FR),C,E
!
LYT0629-004A IB(DU),C,E
!
LYT0629-005A IB(SP),C,E
!
LYT0629-006A IB(IT),C,E
!
LYT0629-007A IB(DA),C,E
!
LYT0629-008A IB(FI),C,E
!
LYT0629-009A IB(SW),C,E
!
LYT0629-010A IB(NO),C,E
!
LYT0629-011A IB(RU),C,E
!
LYT0629-012A IB(CZ),C,E
!
LYT0629-013A IB(PO),C,E
!
LYT0629-014A IB(HU),C,E
!
LYT0633-001A IB(EN),A,B
!
LYT0633-002A IB(GE),A
!
LYT0633-003A IB(FR),A
!
LYT0633-004A IB(DU),A
!
LYT0633-005A IB(SP),A
!
LYT0633-006A IB(IT),A
!
LYT0633-007A IB(DA),A
!
LYT0633-008A IB(FI),A
!
LYT0633-009A IB(SW),A
!
LYT0633-010A IB(NO),A
!
LYT0633-011A IB(RU),A
!
LYT0633-012A IB(CZ),A
!
LYT0633-013A IB(PO),A
!
LYT0633-014A IB(HU),A
31 LYT0584-004A IB(PRINTER.EN),C,D,E,F
LYT0584-005A IB(PRINTER.FR),C,E
LYT0584-006A IB(PRINTER.SP),C,E
LYT0629-016A IB(PRINTER.GE),C,E
LYT0629-018A IB(PRINTER.DU),C,E
LYT0629-020A IB(PRINTER.IT),C,E
LYT0629-021A IB(PRINTER.DA),C,E
LYT0629-022A IB(PRINTER.FI),C,E
LYT0629-023A IB(PRINTER.SW),C,E
LYT0629-024A IB(PRINTER.NO),C,E
LYT0629-025A IB(PRINTER.RU),C,E
LYT0629-026A IB(PRINTER.CZ),C,E
LYT0629-027A IB(PRINTER.PO),C,E
LYT0629-028A IB(PRINTER.HU),C,E
!
32 LYT0500-001A IB(SOFT.SETUP),A
!
LYT0501-001A IB(SOFT.SETUP),B
!
LYT0589-001A IB(SOFT.SETUP),C,E
!
LYT0643-001A IB(SOFT.SETUP),D,F
33 LYT0378-003A SHEET(AGREMENT)
34 BT-54008-2 GUARANTY CARD,B,D,F
BT-54013-1 WARRANTY CARD,A,C,E
35 PEMC1000-01-02 CONNECTOR,CABLE ADAPTER
36 QQR0918-002 CORE FILTER,X2
37 LYT0194-001A Q.CARD(JUK),B,D,F
38 YU30878 REGIST.CARD,B,D,F
39 LYT0162-022A ACC. LEAFLET
34
30
1
2
27

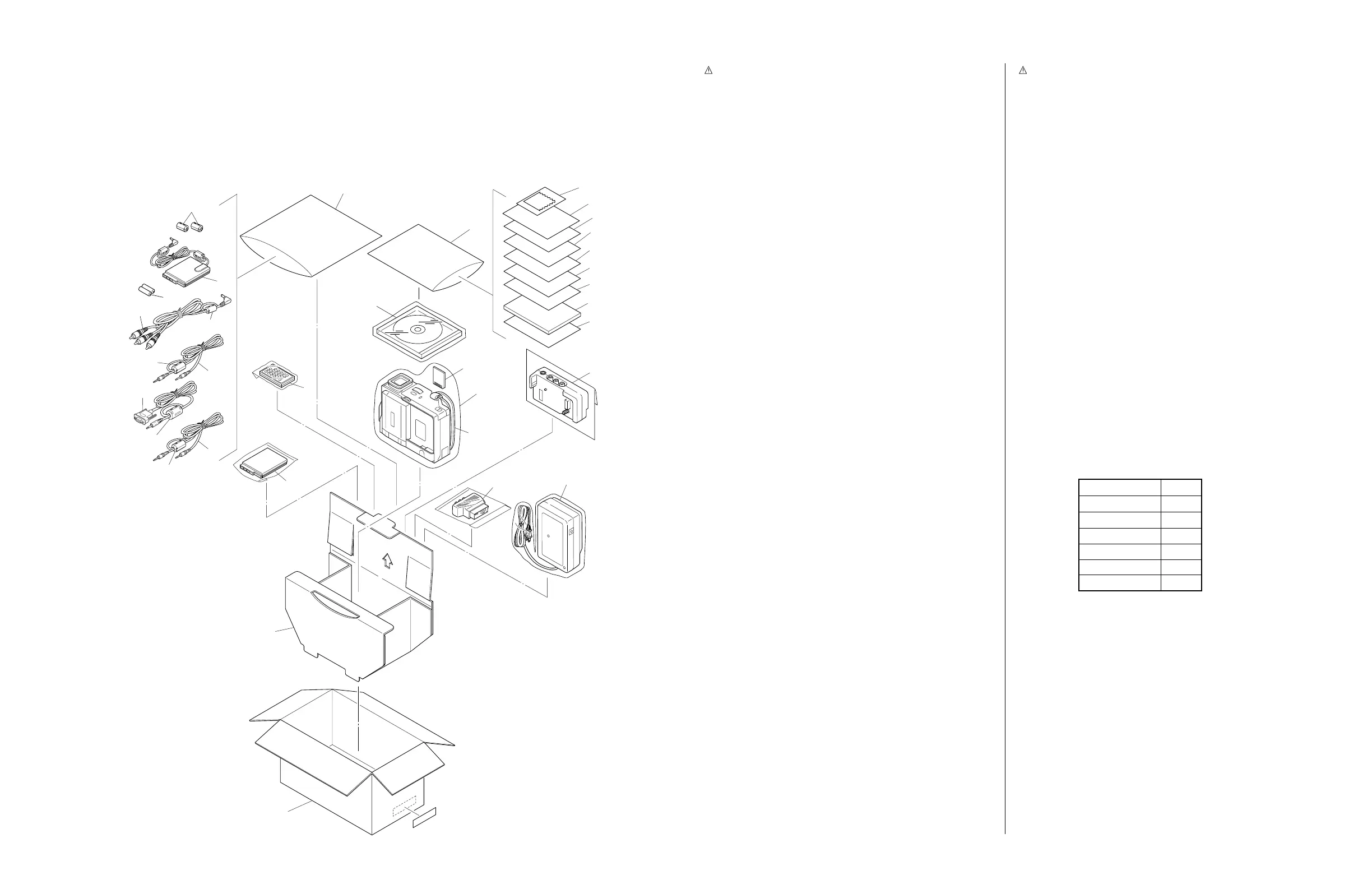

FINAL ASSY
<M2>
33
31
32
37
38
39
LABEL
(SERIAL)
9
3
28
15
16
26
24
25
18
17
19
20
6
10
4
7
23
5 (Refer to sec.6)
8
35
36
• INSTRUCTIONS
EN....... ENGLISH
GE ...... GERMANY
FR ....... FRENCH
DU ...... DUTCH
SP ....... SPANISH
IT ........ ITALIAN
DA....... DANISH
FI ........ FINNISH
SW ...... SWEDISH
NO ...... NORWEGIAN
RU ...... RUSSIAN
CZ ....... CZECH
PO ...... POLISH
HU ...... HUNGARIAN
MODEL MARK
GR-DVX8EG A
GR-DVX8EK B
GR-DVX9EG C
GR-DVX9EK D
GR-DVX10EG E
GR-DVX10EK F
