2-15
2.2.8 Assembling slide deck assembly and main deck assembly

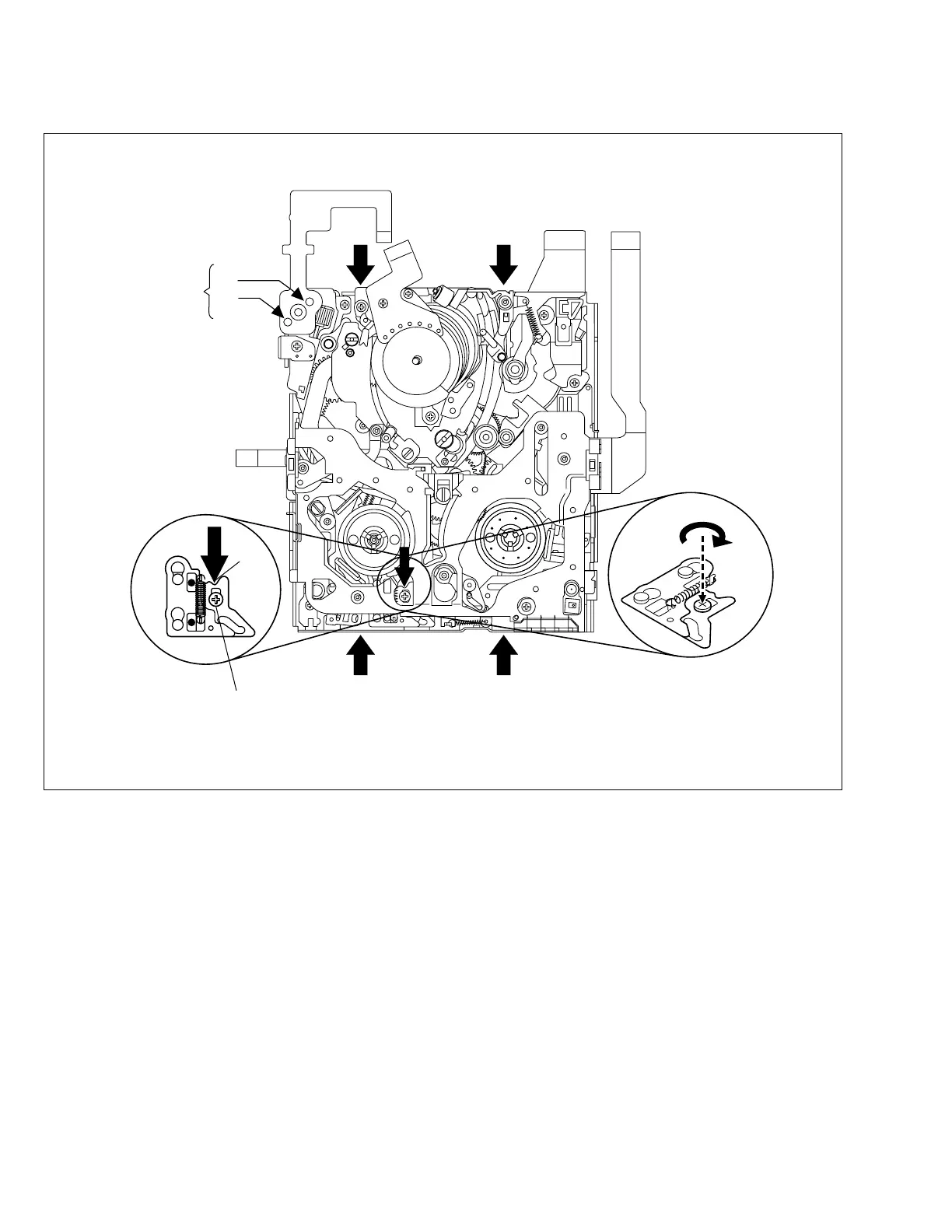

Fig. 2-2-25
Assembling procedure
1. Loosen the screw A.
2. Set the mechanism in the PLAY mode.
(Refer to page 2-2.)
3. Press the end face B of the slide deck assembly (reel
disk side) and the end face C of the main deck assem-
bly (drum assembly side) with uniform force so that the
two assemblies are tightly pressed to each other. Further-
more, press the part D and tighten the screw A.
Note :
Tightening torque for screw
A
: 0.069 N·m (0.7 kgf·cm)
3
2
3
3
1
3
3
CC
D
A
BB
œ
Œ
To Next Page
