JVC GR-DVX8EG - Electronic Viewfinder Assembly M4

5-8
5.4 ELECTRONIC VIEWFINDER ASSEMBLY
<M4>
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- ----------------------------------------------------- ----------------- ----------------------- -----------------------------------------------------
305 PTY31749-015 LEVER(VF)
306 LY30018-037A SCREW
307 LY30018-019A SCREW
308 LY30018-055A SCREW,X2
309 PTY31749-041 EYE PIECE SUB ASSY
310 PTY31749-051 HOLDER(LCD)
311 PTY31749-081 SCREW
312 QLD0117-001 LCD MODULE
313 PTY31749-061 B/L SUB ASSY
314 PTY31749-071 FFC
✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽

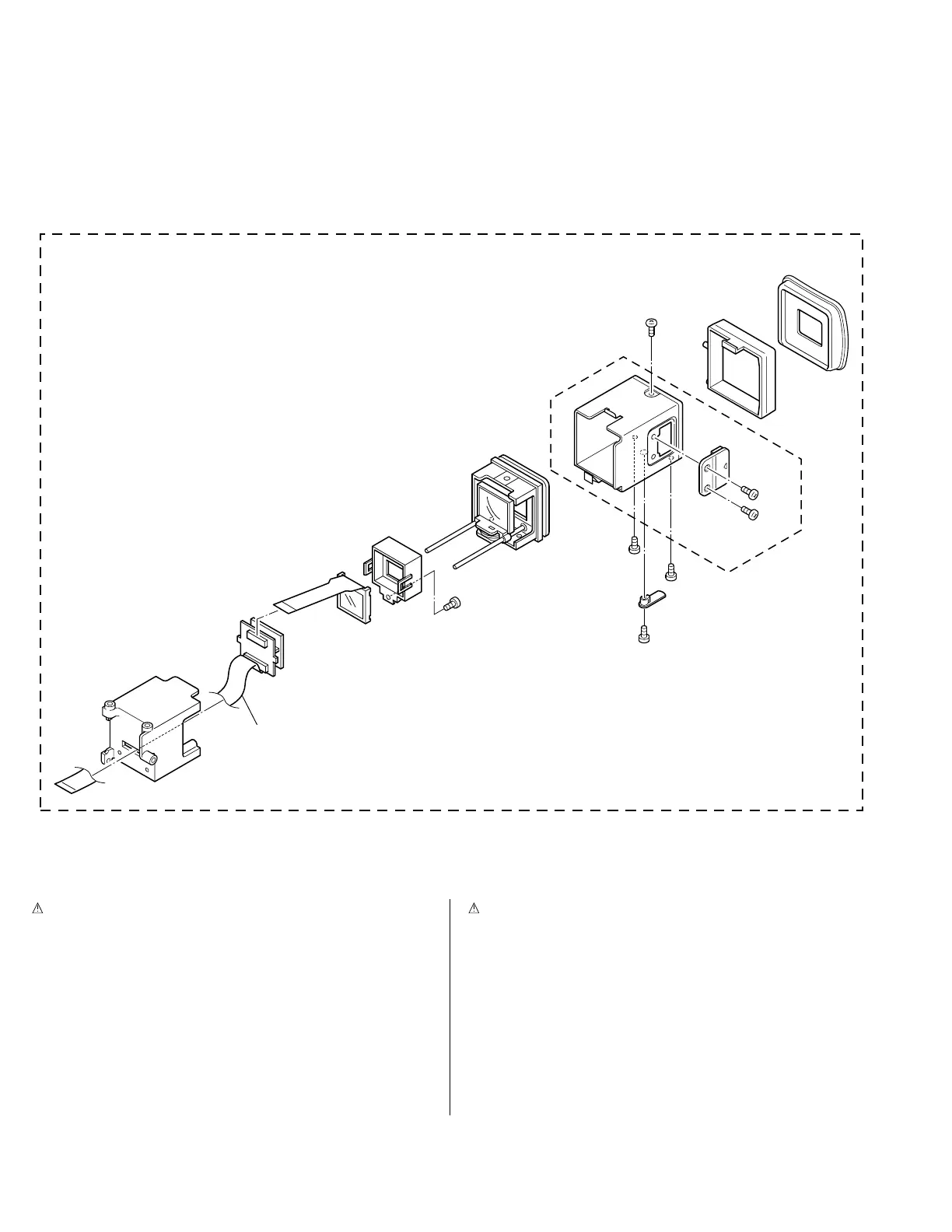

ELECTRONIC VIEWFINDER ASSEMBLY <M4>
300 LY31749-001C VF UNIT
301 PTY31749-001 EYE CUP
302 PTY31749-011 CASE/CAP ASSY
302A PTY31749-012 CAP(VF)
302B LY30029-027A SCREW,X2
303 PTY31749-021 FRAME(VF)
304 PTY31749-031 GUIDE(VF)
302B
302B
301
304
302
307
302A
305
306
308
308
309
300
311
310
312
313
303
314
