JVC GR-DVX8EG - Circuit Board

5
4
3
2
1
A
B
C
DEF
G
H

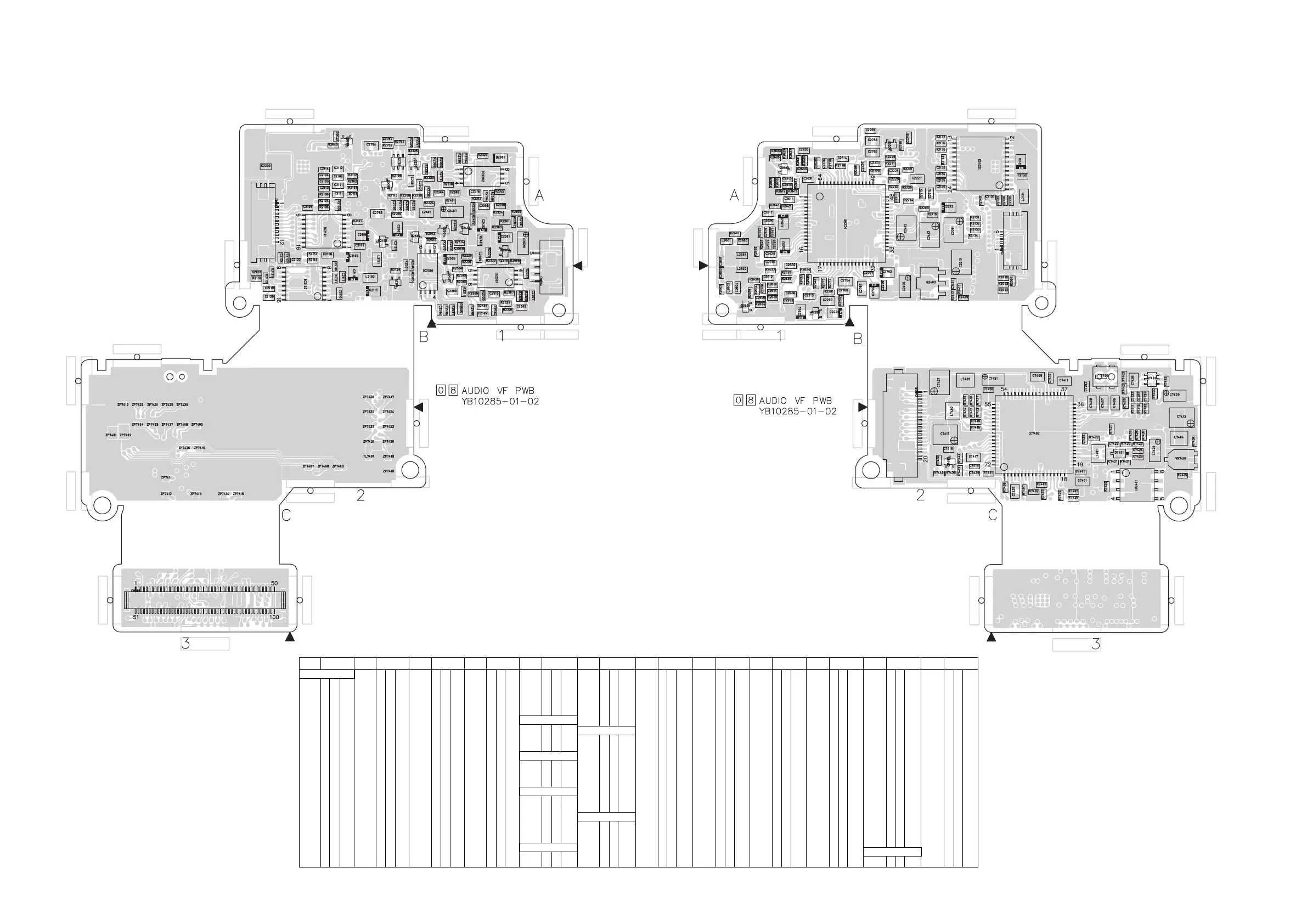

4.37 AUDIO VF CIRCUIT BOARD
FOIL SIDE (B)
4-79 4-80
COMPONENT SIDE (A)
L2131 A C 3A
L2401 B C 2A
L2601 A C 1A
L2602 A C 1B
L2603 A C 1B
L2604 A C 1A
L7401 A C 3C
L7402 A C 2C
L7403 A C 2B
L7404 A C 3C
Q2101 B C 2B
Q2102 B C 2A
Q2201 A C 2A
Q2202 A C 1B
Q2301 B C 2A
Q2302 B C 1A
Q2401 B C 1A
Q2403 A C 2B
Q2501 B C 1A
Q2602 B C 2A
Q2603 A C 1A
Q2604 A C 1B
Q2755 B C 2A
Q7401 A C 3B
Q7402 A C 2C
R2001 B C 1A
R2002 A C 3B
R2003 A C 3B
R2004 A C 3B
R2005 A C 3B
R2101 B C 2A
R2102 B C 2A
R2103 B C 2A
R2104 B C 2A
R2105 B C 2A
R2106 B C 2A
R2107 B C 2A
R2111 B C 2A
R2112 B C 2A
R2113 B C 2A
R2114 B C 2A
R2116 B C 2B
R2117 B C 2B
R2118 B C 3B
R2119 B C 3B
R2120 B C 2B
R2121 B C 3B
R2122 B C 3B
R2131 A C 2A
R2132 A C 2A
R2133 A C 2A
R2134 A C 2A
R2135 A C 2A
R2136 A C 2A
R2137 A C 2A
R2138 A C 3A
R2139 A C 3A
R2140 A C 2A
R2141 A C 2A
R2201 A C 1B
R2202 A C 1B
R2203 A C 2A
R2204 A C 2A
R2205 B C 2A
R2206 B C 2A
R2208 A C 2A
R2210 A C 2A
R2220 A C 2A
R2221 A C 2A
R2224 B C 2A
R2228 A C 2A
R2334 B C 1A
R2335 B C 1B
R2336 B C 1A
R2401 B C 1A
R2402 B C 1A
R2403 B C 1A
R2412 A C 2B
R2413 A C 2B
R2415 A C 2A
R2429 A C 2B
R2501 B C 2A
R2502 B C 2A
R2504 B C 1B
R2505 B C 2B
R2506 B C 1B
R2507 B C 1B
R2508 B C 1B
R2509 B C 1B
R2510 B C 2A
R2512 B C 2A
R2513 B C 1A
R2514 B C 1A
R2515 B C 1A
R2601 A C 1A
R2602 A C 1B
R2603 A C 1A
R2604 A C 1B
R2605 B C 1A
R2606 B C 1A
R2609 A C 1A
R2610 A C 1B
R2613 A C 1A
R2614 A C 1B
R2615 A C 1A
R2616 A C 1B
R2617 A C 1A
R2618 A C 1B
R2619 A C 1A
R2620 A C 1B
R2621 A C 1A
R2622 A C 1B
R2623 A C 1A
R2624 A C 1A
R2627 A C 1A
R2628 A C 1B
R2629 A C 1A
R2630 A C 1B
R2631 A C 1A
R2632 A C 1B
R2633 A C 1A
R2634 A C 1B
R2635 A C 1A
R2636 A C 1B
R2640 A C 1A
R2641 A C 1A
R2642 B C 2A
R2643 B C 2A
R2715 B C 2A
R2756 B C 2A
R2757 B C 2A
R2758 B C 2A
R2759 B C 2A
R2760 B C 2A
R2775 A C 1B
R2776 A C 1A
R2777 A C 1B
R2778 A C 1A
R7401 A C 3C
R7402 A C 3C
R7403 A C 3C
R7404 A C 3C
R7405 A C 3C
R7406 A C 3C
R7407 A C 3C
R7408 A C 3C
R7409 A C 3C
R7410 A C 3C
R7411 A C 3C
R7412 A C 2C
R7413 A C 2C
R7414 A C 2C
R7415 A C 2C
R7416 A C 2C
R7417 A C 2B
R7418 A C 2B
R7419 A C 2B
R7420 A C 3C
R7421 A C 3C
R7422 A C 3C
R7423 A C 3C
R7424 A C 3C
R7426 A C 3C
R7427 A C 3C
R7428 A C 3C
R7429 A C 3C
R7430 A C 3C
R7433 A C 2C
R7434 A C 3C
R7435 A C 3C
R7439 A C 2C
R7440 A C 2C
R7441 A C 2C
R7442 A C 3B
R7443 A C 3B
R7444 A C 3B
R7445 A C 3B
VR7401 A C 3C
JP51 B C 3A
R2229 B C 1A
R2230 B C 1A
R2231 A C 2A
R2232 A C 2A
R2233 B C 2A
R2234 B C 2A
R2301 B C 1A
R2302 B C 1A
R2303 B C 1A
R2305 B C 1B
R2306 B C 1A
R2307 B C 1B
R2308 B C 2A
R2309 B C 1B
R2310 B C 1A
R2311 B C 1B
R2312 B C 1A
R2313 B C 1B
R2314 B C 1A
R2315 B C 1B
R2316 B C 1A
R2317 B C 1B
R2318 B C 1A
R2319 B C 1A
R2320 B C 1A
R2321 B C 1A
R2322 B C 1A
R2323 B C 1A
R2324 B C 1A
R2325 B C 2A
R2326 B C 2A
R2327 B C 2A
R2328 B C 2A
R2329 B C 1B
R2330 B C 2A
R2331 B C 1B
R2332 B C 1A
R2333 B C 1B
C7427 A C 2B
C7428 A C 3B
C7429 A C 3B
C7430 A C 3B
C7431 A C 3B
C7432 A C 3B
C7433 A C 3B
C7434 A C 3B
CN801 B C 3C
CN802 B C 3A
CN803 A C 3A
CN804 B C 1B
CN805 A C 2B
D2001 B C 1A
D2501 B C 1B
D2502 B C 2A
D2751 B C 2A
D7401 A C 3C
IC2101 B C 2A
IC2102 B C 2B
IC2103 A C 2A
IC2201 A C 2A
IC2301 B C 1B
IC2302 B C 1A
IC2501 B C 2B
IC7401 A C 3C
IC7402 A C 3C
L2101 B C 2A
L2102 B C 2B
C2640 A C 1B
C2702 A C 2B
C2703 A C 2B
C2753 A C 2A
C2754 A C 2B
C2756 B C 2A
C2757 B C 2A
C2764 B C 2A
C2765 B C 2A
C2766 A C 2A
C2767 A C 2B
C2768 A C 1B
C2769 A C 2A
C7401 A C 3C
C7402 A C 3B
C7403 A C 3C
C7404 A C 3C
C7405 A C 3B
C7406 A C 3B
C7407 A C 3B
C7408 A C 3B
C7409 A C 3B
C7411 A C 3B
C7413 A C 3C
C7414 A C 3B
C7415 A C 2C
C7416 A C 2C
C7417 A C 2C
C7418 A C 2C
C7419 A C 2C
C7420 A C 2C
C7421 A C 3C
C7422 A C 3C
C7423 A C 3C
C7424 A C 3C
C7425 A C 3C
C7426 A C 3C
C2412 A C 2A
C2413 A C 2A
C2501 B C 2A
C2502 B C 1B
C2503 B C 1B
C2504 B C 1B
C2505 B C 1B
C2506 B C 1A
C2508 B C 1A
C2601 A C 1A
C2602 A C 1B
C2603 A C 1A
C2604 A C 1B
C2605 A C 1A
C2606 A C 1B
C2611 A C 1A
C2612 A C 1B
C2613 A C 1A
C2614 A C 1B
C2615 A C 1A
C2616 A C 1B
C2617 A C 1A
C2618 A C 1A
C2619 A C 1A
C2620 A C 1A
C2621 A C 1A
C2622 A C 1A
C2625 A C 1A
C2626 A C 1A
C2627 A C 1A
C2628 A C 1A
C2629 B C 1A
C2631 A C 1A
C2632 A C 1B
C2635 A C 1A
C2636 A C 1B
C2639 A C 1A
C2101 B C 2A
C2102 B C 2A
C2103 B C 2A
C2104 B C 2A
C2105 B C 2A
C2106 B C 2A
C2107 B C 2A
C2108 B C 2A
C2109 B C 2A
C2111 B C 2A
C2112 B C 2A
C2113 B C 2A
C2114 B C 2A
C2115 B C 2B
C2116 B C 2B
C2117 B C 2B
C2118 B C 2B
C2119 B C 3B
C2120 B C 3B
C2121 B C 2A
C2122 B C 2A
C2123 B C 3A
C2124 B C 3A
C2131 A C 3A
C2132 A C 3A
C2133 A C 2A
C2134 A C 2A
C2135 A C 2A
C2136 A C 2A
C2137 A C 3A
C2138 A C 3A
C2202 A C 1B
C2203 A C 1B
C2204 A C 1B
C2207 A C 2B
C2208 A C 2B
C2210 A C 2A
C2211 A C 2A
C2212 A C 2A
C2214 A C 2A
C2215 A C 2A
C2216 B C 2A
C2217 A C 2A
C2218 A C 2A
C2220 A C 2A
C2221 A C 2A
C2224 A C 2A
C2225 A C 1A
C2227 A C 2A
C2228 A C 2A
C2229 A C 2A
C2230 B C 3A
C2231 A C 1B
C2301 B C 1A
C2303 B C 1B
C2304 B C 1A
C2305 B C 1B
C2306 B C 1A
C2307 B C 1B
C2308 B C 1A
C2309 B C 1A
C2310 B C 1A
C2311 B C 2A
C2312 B C 2A
C2313 A C 1B
C2314 A C 1A
C2315 B C 1B
C2316 B C 1A
C2401 B C 1A
C2402 B C 1A
C2406 A C 2B
C2407 B C 1A
C2411 A C 2B
COIL
CAPACITOR
IC
COMPONENT PARTS LOCATION GUIDE (AUDIO/VF)
REF.No. LOCATION
REF.No. LOCATION REF.No. LOCATION
REF.No. LOCATION
REF.No. LOCATION
REF.No. LOCATION
REF.No. LOCATION
REF.No. LOCATION
RESISTOR
REF.No. LOCATION
REF.No. LOCATION
REF.No. LOCATION
REF.No. LOCATION
JP52 B C 3A
JP53 B C 3A
S7001 A C 3B
TL7401 B C 2C
ZP7401 B C 3C
ZP7402 B C 3C
ZP7403 B C 3C
ZP7404 B C 3C
ZP7405 B C 3C
ZP7406 B C 3C
ZP7407 B C 2C
ZP7408 B C 2C
ZP7409 B C 2C
ZP7410 B C 3B
ZP7411 B C 3C
ZP7412 B C 3C
ZP7413 B C 3C
ZP7414 B C 3C
ZP7415 B C 3C
ZP7416 B C 3C
ZP7417 B C 2B
ZP7418 B C 2C
ZP7419 B C 2C
ZP7420 B C 2C
ZP7421 B C 2C
ZP7422 B C 2C
ZP7423 B C 2C
ZP7424 B C 2C
ZP7425 B C 2C
ZP7426 B C 3C
ZP7427 B C 3C
ZP7428 B C 2B
ZP7429 B C 3B
ZP7430 B C 3B
ZP7431 B C 3B
ZP7432 B C 3B
DIODE
TRANSISTOR
OTHER
CONNECTOR
