2-9
Fig. 2-2-16

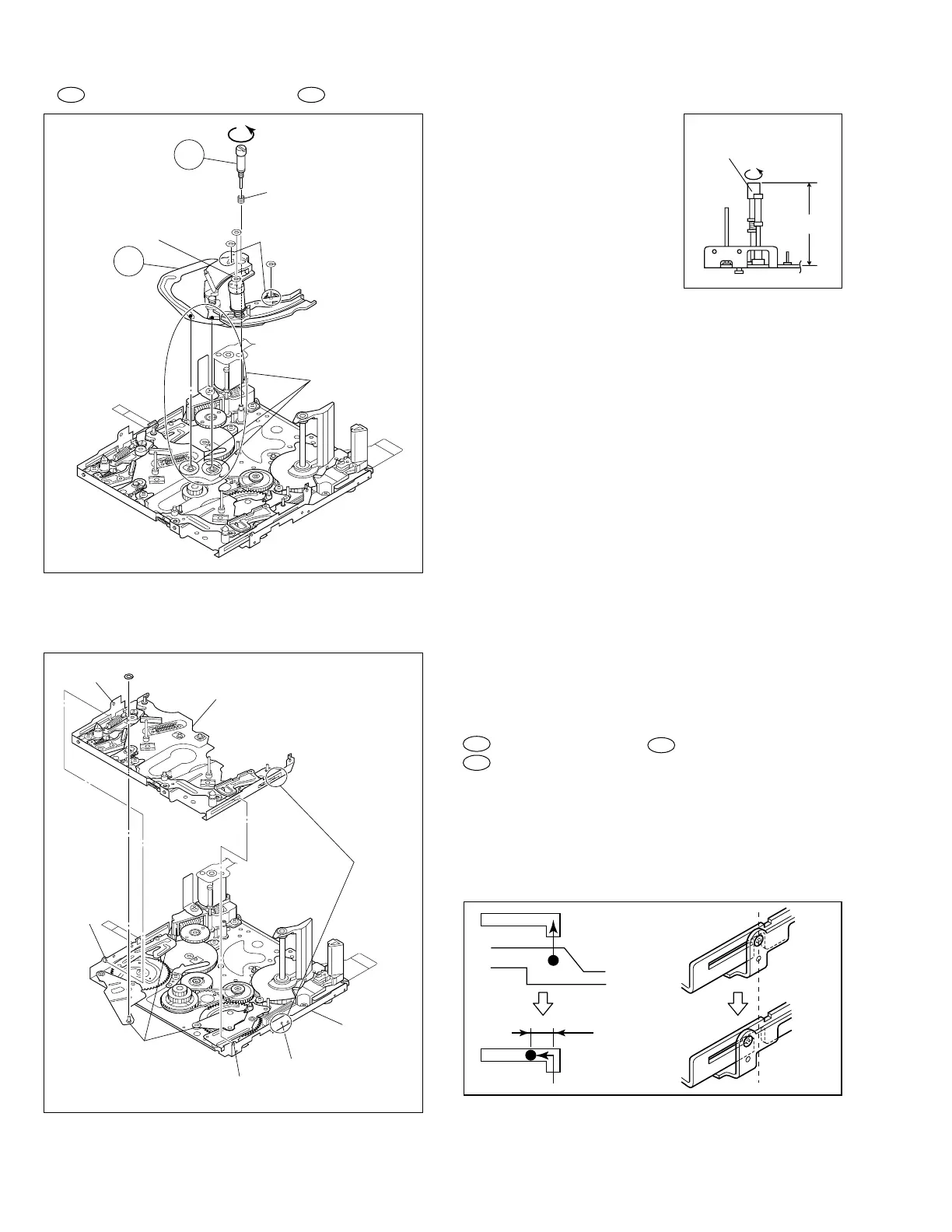

5. Guide roller (SUPPLY) assembly/
Rail assembly
Fig. 2-2-17
6.
B Slide deck assembly/ C Main deck assembly
Note 6a:
When removing the slide deck assembly, pay heed to the three
components of the following because they are apt to come off
after the slide deck assembly is removed.
Tension lever assembly/ Slide lever assembly
Brake control lever assembly
For reassembling those components, refer to Fig. 2-2-19 on
page 2-10.
Note 6b:
When reassembling the slide deck assembly to the main deck
assembly, combine them with each other by the side grooves
and then slide the slide deck assembly by 1 mm or so.
5b
(W5a)
(W5a)
(W5a)
(W5b)
(P5)
Note 5b
Note 5c
Note 5a
Note 5d
5a
CMain deck
assembly
BSlide deck assembly
(L6a)
(L6b)
(L6d)
(L6c)
Note 6b
Note 6a
(W6)
1mm
5a 5b
8a
8c
8b
Note 5b:
Pay careful attention to the spring not to lose it.
Note 5c:
Pay careful attention to the engagement of the rail assembly’s
arm ends because they easily come off the engagement.
Moreover, make sure that there is neither deformation nor
damage observed in them.
Note 5d:
When removing the rail assembly, check to see if the collar is
securely set in the arm groove.
Note 5a:
When reassembling, insert the tip
of the guide roller with the coil
spring put on it into the hole on
the main deck. Tighten the guide
roller by about 6 turns so that the
height of the guide roller assem-
bly is 19 mm or so as shown in
the figure.
Guide roller
(s) assembly
19mm
