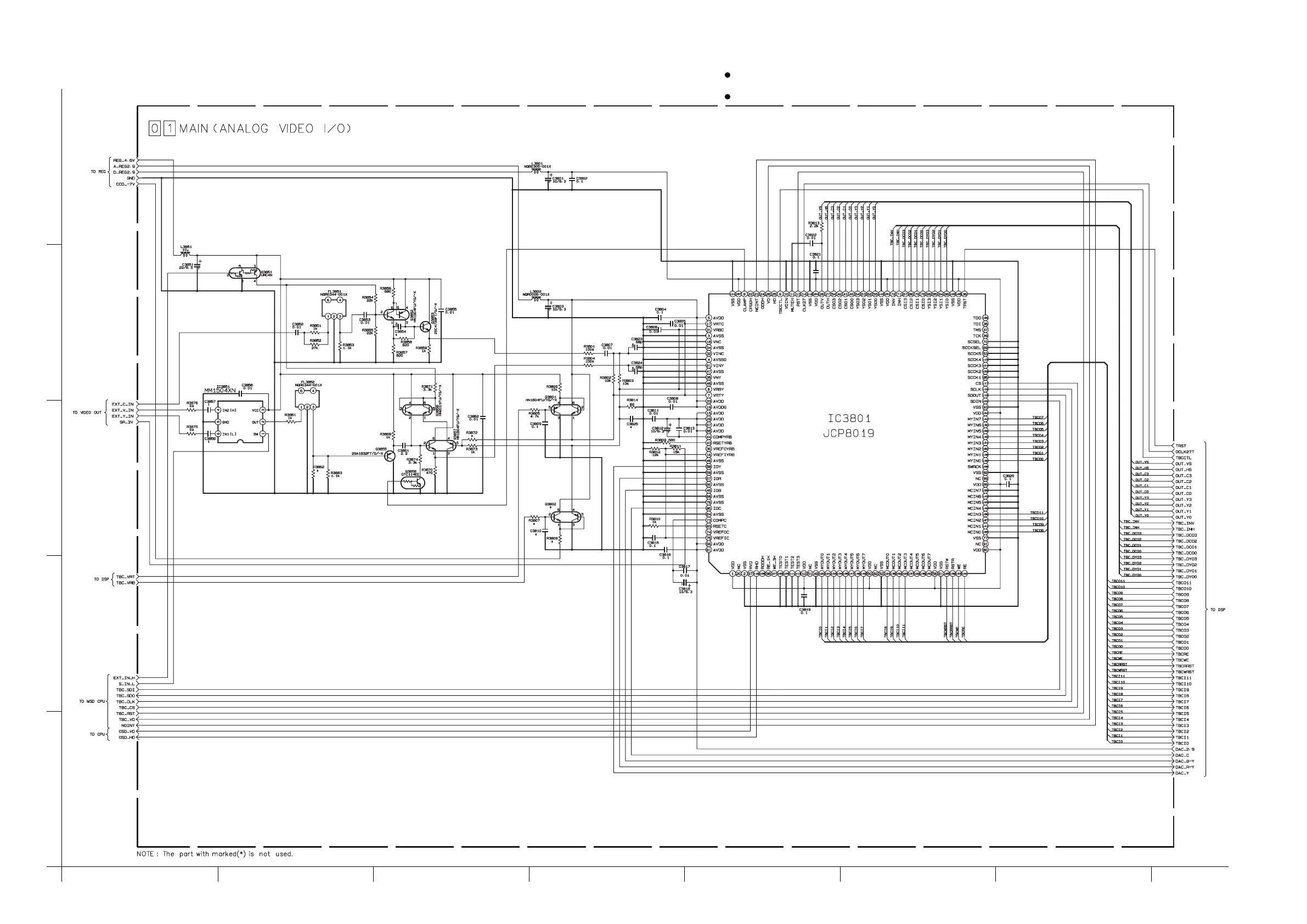

4.10 ANALOG VIDEO I/O SCHEMATIC DIAGRAM
(FOR DVX10)
NOTES: For the destination of each signal and further line connections that are cut off from
this diagram, refer to “4.1 BOARD INTERCONNECTIONS”.
When ordering parts, be sure to order according to the Part Number indicated in the Parts List.
