JVC GY-HM650U User Manual

Operation Modes

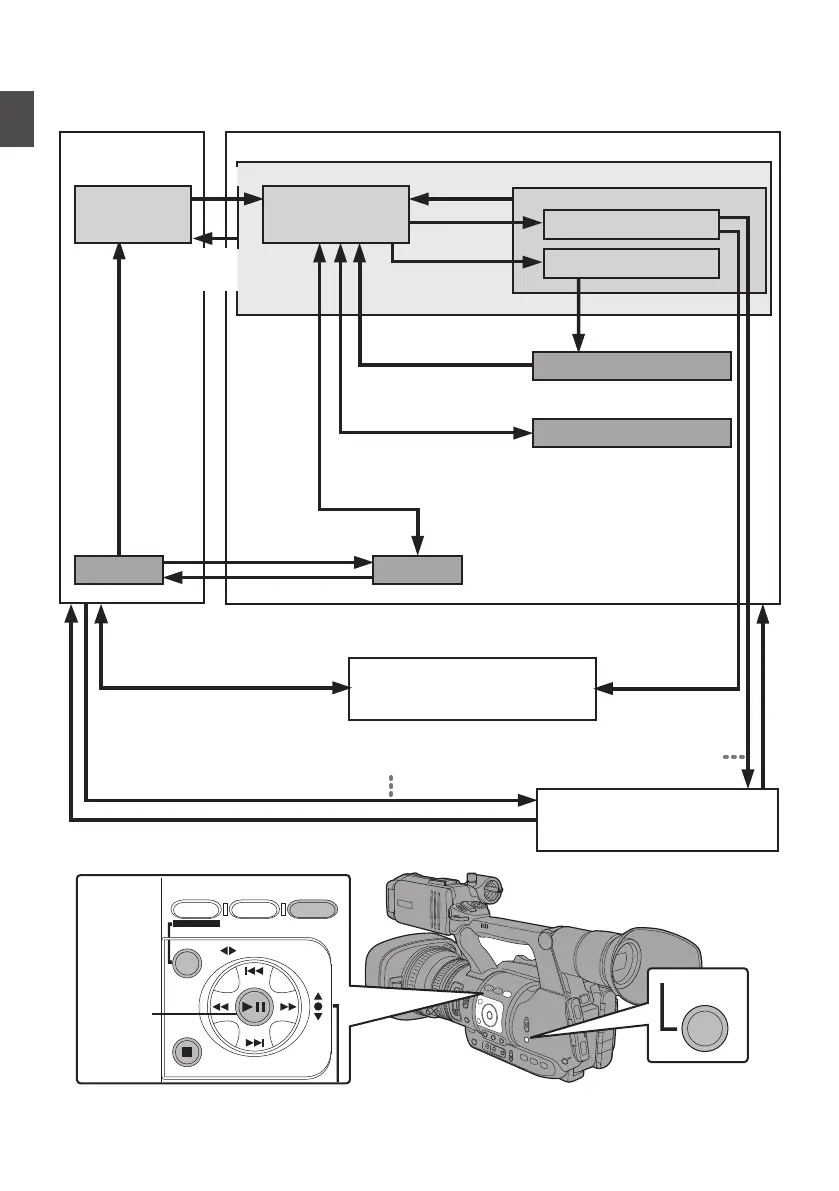

This camera recorder has four operation modes - Camera mode, Media mode, USB mode and Remote
Edit mode.
.
FTP実行中
MODE
AE LEVEL
MENU/THUMB
FOCUS ASSIST/1 OIS / 2 LOLUX / 3
CANCEL
TIME CODE
Playback
Button
Trimming Playback
Normal Playback
[CANCEL]/[MENU/THUMB] Button
FTP in Progress FTP in Progress
Exit FTP
Operation
(Successful)
Camera Input
*
* Selecting a mode other than the Metadata Edit mode via the web browser,
or selecting [Exit] on the [Remote Edit Mode] screen
Upon access via a web browser and selecting [Change] on the [Change to Remote Edit
Mode?] screen on the camera or the web browser
Connection to PC with USB Cable
Press and hold [MODE]
[MODE]
Button
Press and hold
[MODE]
[MODE] Button
Execute [FTP Upload]
Exit/Cancel FTP Operation (Successful/Failed/Stopped)
(Actions)
Execute [Delete Clips]
File Deletion in Progress
Exit/Cancel File Delete Operation (Successful/Failed/Stopped)
Trimming in Progress
Exit Trimming Operation
(Successful/Failed/Stopped)
[LOLUX/3] Button
Execute [Trim This
Clip]
Media Mode
Thumbnail Display
USB Connection (When the confirmation to change
to USB mode appears and [Change] is selected)
(USB Mass Storage Class)
USB Mode
Playback
Button
Connection disabled on PC
Camera Mode
Remote Edit Mode
Playback
18
Introduction

JVC GY-HM650U Specifications

General

Video Resolution	1920 x 1080
Audio Channels	2
HDMI Output	Yes
Component Output	Yes
Composite Output	Yes
FireWire	No
Image Stabilization	Optical
Filter Size	72 mm
Camera Type	Professional
Sensor Type	3x 1/3" CMOS
Effective Pixels	Approx. 2.07 megapixels (1920 x 1080)
Recording Format	AVCHD
Maximum Aperture	f/1.6
Minimum Focus Distance	1 m
ND Filter	Yes (1/4, 1/16)
Recording Media	SD/SDHC/SDXC
Audio Format	Linear PCM
LCD Screen	3.5-inch
Viewfinder	0.45"
Microphone Input	Yes, 2x XLR
Headphone Output	Yes, 1x 3.5mm
USB	Yes
Wireless	Optional
Battery Type	Lithium-ion
Battery Life	Approximately 3 hours with BN-VF823
Frame Rate	50i, 25p
