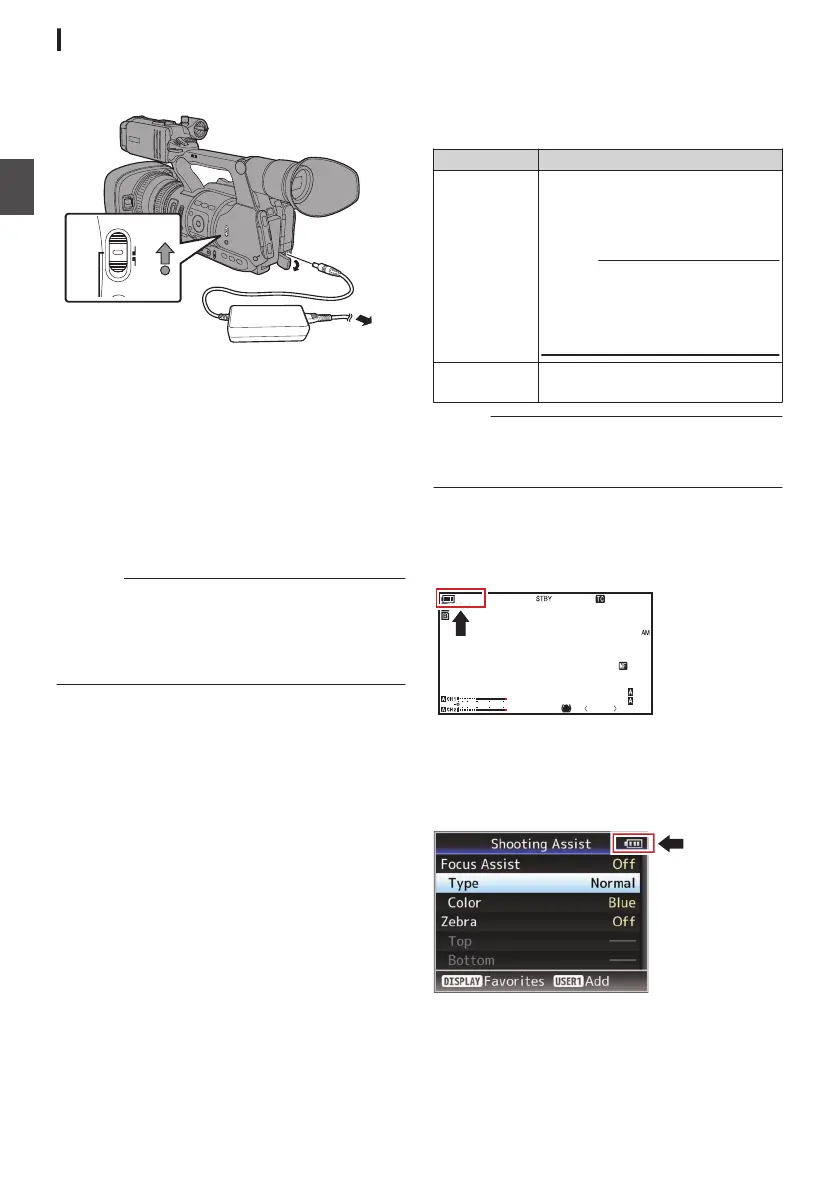

Using AC Power (DC IN Power)
Use the supplied AC adapter to operate the camera
recorder with AC power.
.
1
MODE
POWER
ON
OFF
(CHG)
2
1
Connect the DC cable of the AC adapter to
the [DC]
terminal of the camera recorder.
0
Check that the power switch of the camera
recorder is set to “OFF(CHG)
”.
0
Open the cover of the [
DC] terminal and
connect as shown in the diagram.
2
Hold down the lock button (blue) at the
center of the [POWER ON/OFF(CHG)] switch
to set to “ON”.
Power will be supplied to the camera recorder.
Caution :
0
Do not insert or remove the DC cable during
recording.
0
Do not use power supply of high voltage
fluctuation, containing noise such as ripple, or
with insufficient capacity.
Charging the Built-In Battery
0
The date/time and time code data are stored
using the built-in rechargeable battery.
0
When power is connected to the camera
recorder, the built-in battery always gets
charged. When the power is disconnected, the
battery gradually discharges.
0
The battery will be totally discharged if left
unused
for 3 months and the date/time and time
code data will be reset. When this happens, set
the [POWER ON/OFF(CHG)] switch to “ON” to
display the [Initial Setting] screen, then set the
date/time.
(A P32
[Initial Settings] )
Power Status Display
Viewfinder Screen and LCD Monitor
The power status is displayed on the display and
menu screens.
Display Description
B 7.4V
B 100min
C 30%
4 RES
Currently powered by a battery.
When the battery power runs out,
the battery mark appears hollow,
and “RES” (yellow) is displayed.
Memo :
0
You can set the display using
[LCD/VF] B [Display Settings
]
B [Battery].
(A
P110 [ Battery ] )
G
Currently powered by an AC
adapter.
Memo :
0
If
the supplied battery (or equivalent battery sold
separately) is not used, the battery mark which
indicates the battery level may not appear.
Display Screen
(A P
129 [Display Screen in Camera Mode] )
(A P134 [Display Screen in Media Mode] )
.
100min
50min
282min
P13000K
1/100
F1.6
0
dB
AE+6
ND 1 /64
5 . 6 f t
12 :34 : 56
Jan 24,2012
00: 00:00.00
1920x1080
60 i HQ
4030 20 10 0
Menu Screen
(A P95 [Display and Description of the Menu
Screen] )
.
30
