JVC GY-HM70E Basic User's Guide

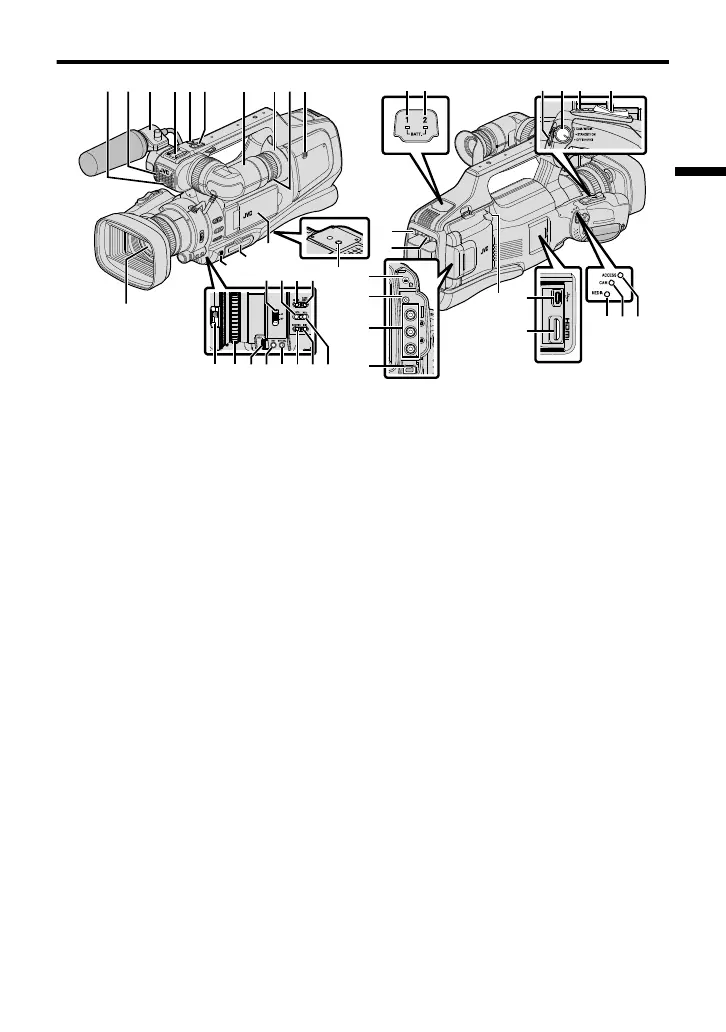

Names of Parts and Functions
.
REMOTE
AV
DC
345 08
b
a
jk
e
C
B
F
E
A
z
x
y
lmn
gfh
op
i
q
GHI
D
c
d
t
12 9
7
6
uwvsr
* Microphone is optional.
A
Tally lamp
B
Built-in microphone
C
Microphone holder
D
Shoe
E
“REC” (Record) button
F
Zoom lever
G
Viewfinder
H
Eyepiece
I
Eyepiece focus lever
J
Built-in speaker
K
Lens/Lens cover
L
“DOOR LOCK” lever
M
SD card slot A, B
N
LCD monitor
O
Tripod mounting holes
P
“AF/MF” Focus switch
Q
i.AUTO (Intelligent Auto) button
R
MODE (Video/Still image) button
S
“CAM”/“MEDIA” button
T
Lens cover switch
U
Focus ring
V
“ADJ.” dial
W
“SET” button
X
“WHT BAL” White balance selection
button
Y
“SHUTTER” Shutter speed button
Z
“IRIS” Iris button
a
“AE±” Exposure button
b
“BATT. 1” charge indicating lamp
c
“BATT. 2” charge indicating lamp
d
“REC” (Record) button
e
“STANDBY/ON OFF”/“CAM/MEDIA”
Power/Operation
mode selection switch
f
“SNAPSHOT” (Still image recording)
button
g
Zoom lever
h
“BATT. 1” lock release button
i
“BATT. 2” lock release button
j
Headphone jack
k
“REMOTE” Remote jack
l
“AV” connector
m
“DC” connector
n
“MIC” jack
o
USB connector
p
HDMI connector
q
“MEDIA” Media mode indicating lamp
r
“CAM” Camera mode indicating lamp
s
“ACCESS” Access indicating lamp
5

JVC GY-HM70E Specifications

General

Sensor type	CMOS
Total megapixels	12 MP
Optical sensor size	1/2.3 \
Filter size	46 mm
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.76 - 37.6 mm
Interchangeable lens	-
Maximum aperture number	2.8
Minimum aperture number	1.2
Focal length (35mm film equivalent)	29.5 - 476 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Focus adjustment	Auto/Manual
Camera shutter speed	0.00025 - 0.5 s
Display diagonal	3 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Shoulder camcorder
Product color	Black
Video resolutions	720 x 576, 1920 x 1080 pixels
Video formats supported	AVCHD, H.264, MPEG4
Maximum video resolution	1920 x 1080 pixels
Image formats supported	JPG
Maximum image resolution	- pixels
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	0
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 80 %
Cables included	RCA, USB

Weight and Dimensions

Depth	476 mm
Width	227 mm
Height	232 mm
Weight	3000 g
