JVC GY-HM70E Basic User's Guide

Names of Buttons and Functions on the
LCD Monitor

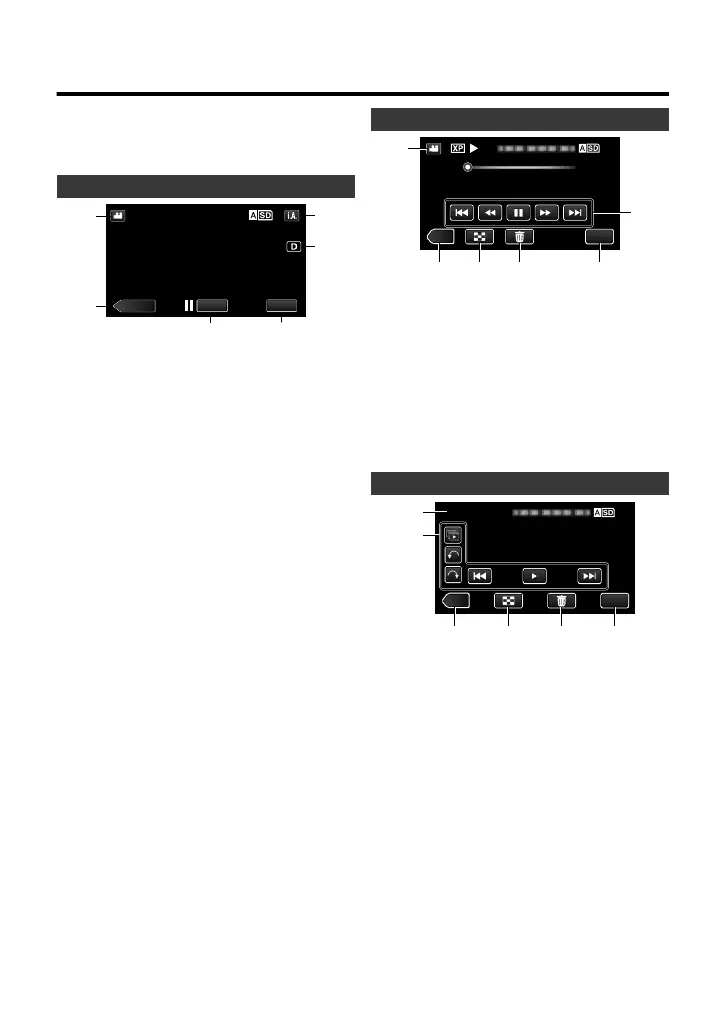

The following screens are displayed during
the video and still image modes, and
operate as the touch screens.
Recording Screen (Video/Still Image)
.
MENU
≪MEDIA
REC
1
2
6
5
4
3
A
A/B (Video (60i/60p)/Still Image)
Mode
Button
B
Media Mode Button
Switches to the media (playback) mode.
C
Recording Start/Stop Button
6
: Video Recording Start Button
7
: Video Recording Stop Button
Q
: Still Image Recording Button
D
Menu Button
E
Display Button
Simple display: Some displays
disappear after approximately 3
seconds.
Full display: Displays everything.
Switches the display between full and
simple with every tap of the button.
F
C/H (Intelligent Auto/Manual) Button
Playback Screen (Video)
.
0:01:23 0:12:34
MENU
≪CAM
6
2 3 4 5
1
A
A/B (Video (60i/60p)/Still Image)
Mode
Button
B
Camera Mode Button
Switches the camera (recording) mode.
C
Index Screen (Thumbnail Display)
Button
D
Delete Button
E
Menu Button
F
Operation Buttons
Playback Screen (Still Image)
.
B
≪CAM
MENU
3 4 56
1
2
A
A/B (Video (60i/60p)/Still Image)
Mode
Button
B
Operation Buttons
C
Camera Mode Button
Switches the camera (recording) mode.
D
Index Screen (Thumbnail Display)
Button
E
Delete Button
F
Menu Button
6

JVC GY-HM70E Specifications

General

Sensor type	CMOS
Total megapixels	12 MP
Optical sensor size	1/2.3 \
Filter size	46 mm
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.76 - 37.6 mm
Interchangeable lens	-
Maximum aperture number	2.8
Minimum aperture number	1.2
Focal length (35mm film equivalent)	29.5 - 476 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Focus adjustment	Auto/Manual
Camera shutter speed	0.00025 - 0.5 s
Display diagonal	3 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Shoulder camcorder
Product color	Black
Video resolutions	720 x 576, 1920 x 1080 pixels
Video formats supported	AVCHD, H.264, MPEG4
Maximum video resolution	1920 x 1080 pixels
Image formats supported	JPG
Maximum image resolution	- pixels
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	0
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 80 %
Cables included	RCA, USB

Weight and Dimensions

Depth	476 mm
Width	227 mm
Height	232 mm
Weight	3000 g
