JVC GY-HM70E Basic User's Guide

Index Screen (Thumbnail Display)
.
≪CAM
2
3 4 5 6 7
1
8
A
A/B (Video (60i/60p)/Still Image)
Mode
Button
B
Date Button
C
Camera Mode Button
Switches the camera (recording) mode.
D
Still Image Mode Button (Still image
only)
E
Delete Button
F
Playback Media Button
Switches between the SD card slots.
G
Menu Button
H
Page Forward/Back Button
Menu screen (recording mode)
.
OFF
3
1
2
5
4
6
7
8
9
0
A
RECORD SETTING Menu
B
Shortcut Menu
C
CONNECTION SETTINGS Menu
D
Help Button
E
SILENT Button
F
INFO. Button
G
Close Button
H
MEDIA SETTINGS Menu
I
SETUP Menu
J
SPECIAL RECORDING Menu

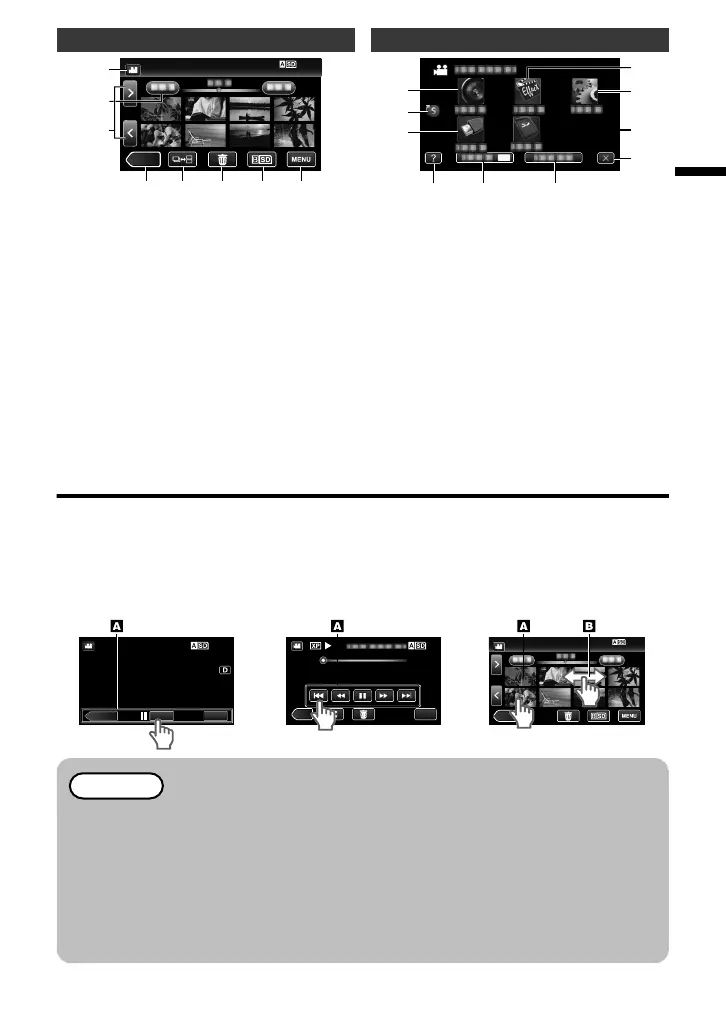

Using the Icon Buttons/Thumbnails
There are two ways to operate the touch screen, namely “tap” and “drag”. The following
are some examples.
A
Tap the displayed button (icon) or thumbnail (file) on the touch screen to make selection.
B Drag the thumbnails on the touch screen to search for the desired file.
.
≪CAM
0:01:23 0:12:34
Recording Screen Playback Screen Index Screen
MENU
≪MEDIA
REC
0:01:23 0:12:34
MENU
≪CAM
Memo
0
The touch screen of
this unit is pressure-sensitive. When the touch screen does
not respond smoothly, apply slightly more force to your fingertip.
0
Do not press or rub with excessive force.
0
Do not operate the touch screen using an object with a sharp tip.
0
Pressing two or more places at a time may cause a malfunction.
0
Tap the buttons (icons) on the touch screen accurately. The buttons may not
respond if they are not tapped on the right area.
0
Perform “TOUCH SCREEN ADJUST” if the reactive area of the screen is
misaligned with the touched area.
7

JVC GY-HM70E Specifications

General

Sensor type	CMOS
Total megapixels	12 MP
Optical sensor size	1/2.3 \
Filter size	46 mm
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.76 - 37.6 mm
Interchangeable lens	-
Maximum aperture number	2.8
Minimum aperture number	1.2
Focal length (35mm film equivalent)	29.5 - 476 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Focus adjustment	Auto/Manual
Camera shutter speed	0.00025 - 0.5 s
Display diagonal	3 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Shoulder camcorder
Product color	Black
Video resolutions	720 x 576, 1920 x 1080 pixels
Video formats supported	AVCHD, H.264, MPEG4
Maximum video resolution	1920 x 1080 pixels
Image formats supported	JPG
Maximum image resolution	- pixels
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	0
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 80 %
Cables included	RCA, USB

Weight and Dimensions

Depth	476 mm
Width	227 mm
Height	232 mm
Weight	3000 g
