3.6.2 Removing the VF1 board and VF2 board (See figure

39, figure 40, figure 41, figure 42, figure 43 and figure

44)

(1) Remove the lens unit assembly (Refer to the 3.6.1).

(2) Remove the two screws (S1) attaching the VF case B.

(3) Remove the lock ring.

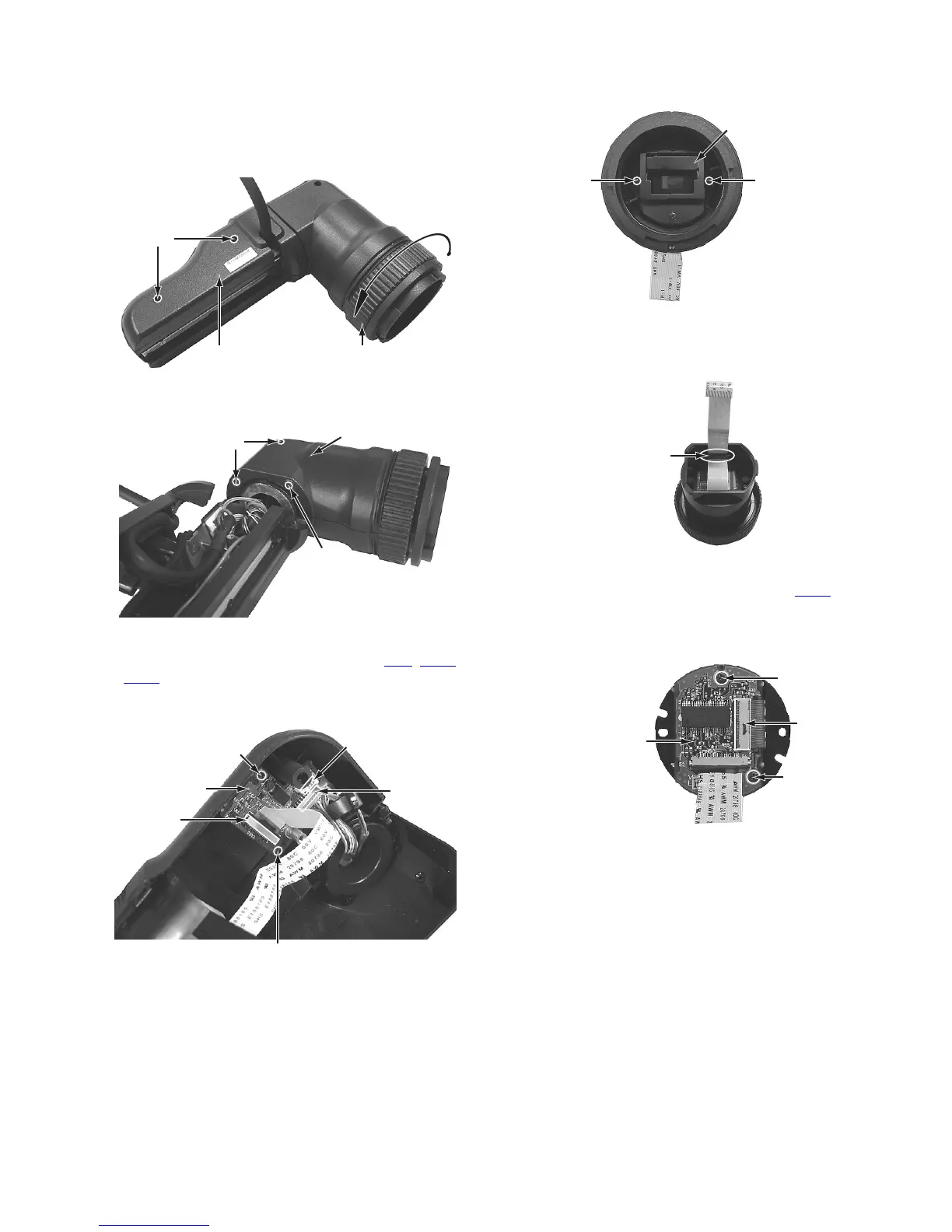

Fig.39

(4) Remove the three screws C attaching the VF cover B.

Fig.40

(5) Disconnect the wires from the connectors CN8

, CN60 and

CN65

on the VF2 board.

(6) Remove the two screws (S12) attaching the VF2 board,

then remove the VF2 board.

Fig.41

(7) Remove the two screws D attaching the LCD module unit,

then remove the LCD module unit.

Fig.42

• To attach the LCD module unit, put the wire through the

slit.

Fig.43

(8) Disconnect the FPC from the connector CN61

on the VF1

board.

(9) Remove the two screws (S12) attaching the VF1 board,

then remove the VF1 board.

Fig.44

Lock ring

VF Case B

(S1)

VF Cover B

(S12)

VF2 Board

CN60

CN8

CN65

LCD Module unit

Slit

(S12)

CN61

VF1 Board

(S12)
