1-14 (No.HC034<Rev.001>)

SECTION 4

ADJUSTMENT

4.1 FUNCTIONS REQUIRED FOR ADJUSTMENTS, SETUP

4.1.1 General instruments necessary for adjustment

4.1.2 Special implements required for adjustment

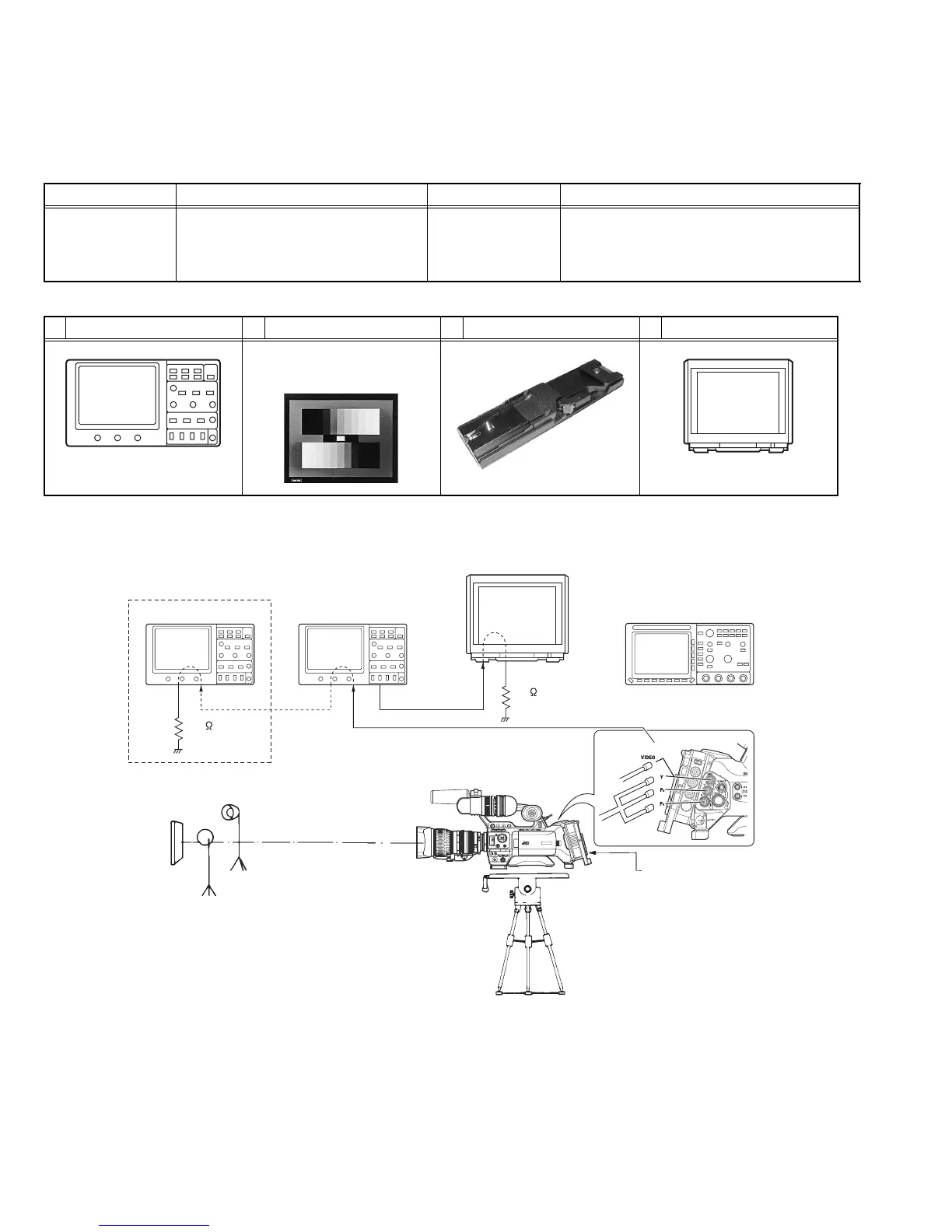

4.2 STANDARD SETUP

Instrument Condition Instrument Condition

Oscilloscope

Vectorscope

Audio tester

Calibrated instrument with a measuring

bandwidth of 100 MHz or more.

Calibrated instrument

Frequency counter

Monitor TV

Instrument calibrated for 8 digits or more.

Stability of 0.1 ppm or 1x10

-7

or better is re-

quired at 0 to 40 °C.

Color video monitor with a 75Ω video input.

1 Waveform monitor (WFM) 2 Gray scale chart (HD/SD) 3 Tripod base (KA-551U) 4 Monitor TV (SD/HD)

(Part No. : RESC-017 [for HD])

(Part No. : GS2L [for SD])

Vectorscope

resistor for

termination

75 resistor for

termination

Test pattern

3000 K illumination

AC adapter

(7.2 ~ 9.0 V DC/3A INPUT)

Waveform monitor (WFM)

2 m or more

Color video monitor

Oscilloscope

Composite cable

Component cable

GY-HM790
