(No.HC034<Rev.001>)1-11

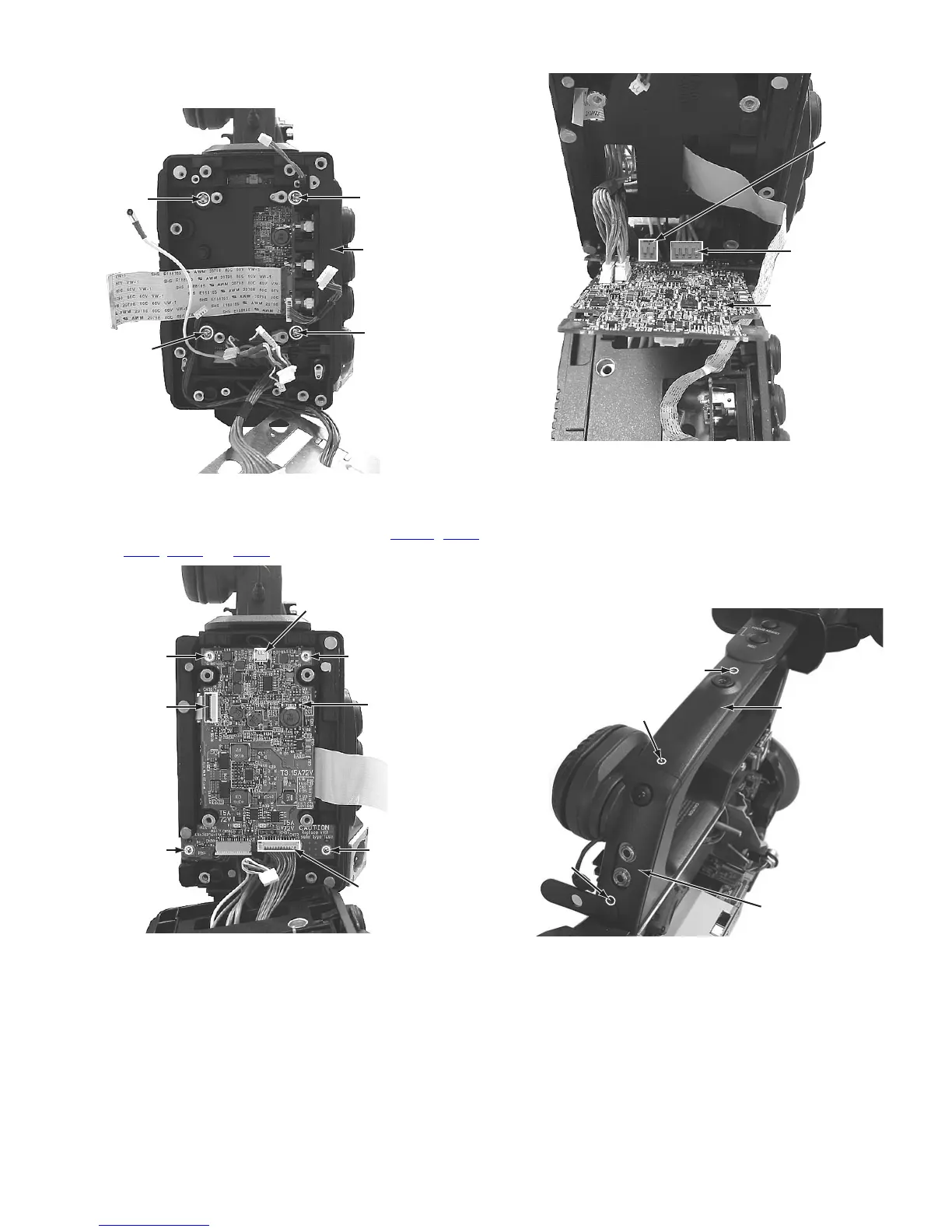

(8) Remove the four screws (S13) attaching the rear main
base assembly.
Fig.29
(9) Remove the four screws (S6) attaching the REG board.
(10) Disconnect the wires from the connectors CN109
, CN30,
CN32
, CN91 and CN31 on the REG board.
Fig.30
Fig.31
3.5 HOW TO REMOVE THE HANDLE ASSEMBLY (See fig-
ure 32, figure 33, figure 34 and figure 35)
(1) Remove the left side cover assembly and right side cover
assembly (Refer to the 3.2)
(2) Remove the two screws (S5) attaching the handle cover T.
(3) Remove the one screw (S1) attaching the handle cover R.
Fig.32
(S13)(S13)
(S13)
(S13)
Rear main base
assembly
(S6)
CN30
(S6)
REG Board
CN109
(S6)
(S6)
CN32
CN31
REG Board
CN91
(S5)
(S5)
(S1)
Handle cover T
Handle cover R

JVC GY-HM790U Specifications

General

Sensor type	CCD
Total megapixels	- MP
Optical sensor size	1/3 \
Digital zoom	- x
Optical zoom	14 x
Image stabilizer	No
Focal length range	4.4 - 61.6 mm
Interchangeable lens	Yes
Focal length (35mm film equivalent)	32 - 448 mm
Camcorder media type	Memory card
Compatible memory cards	SDHC
Internal storage capacity	- GB
Built-in flash	-
Display diagonal	4.3 \
Display resolution	800 x 480 pixels
Display resolution (numeric)	410000 pixels
Viewfinder resolution	1226000 pixels
Viewfinder screen size	0.45 \
Camcorder type	Shoulder camcorder
Product color	Black
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080 pixels
Supported video modes	1080i, 576i, 720p
Video formats supported	MPEG2
Maximum video resolution	1920 x 1080 pixels
Bitrate at maximum video resolution	35 Mbit/s
Maximum image resolution	- pixels
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 85 %
Operating relative humidity (H-H)	30 - 80 %

Weight and Dimensions

Weight	3.7 g
