(4) Disconnect the wire from the connector CN48

on the EAR

board.

(5) Remove the three screws (S4) attaching the handle as-

sembly.

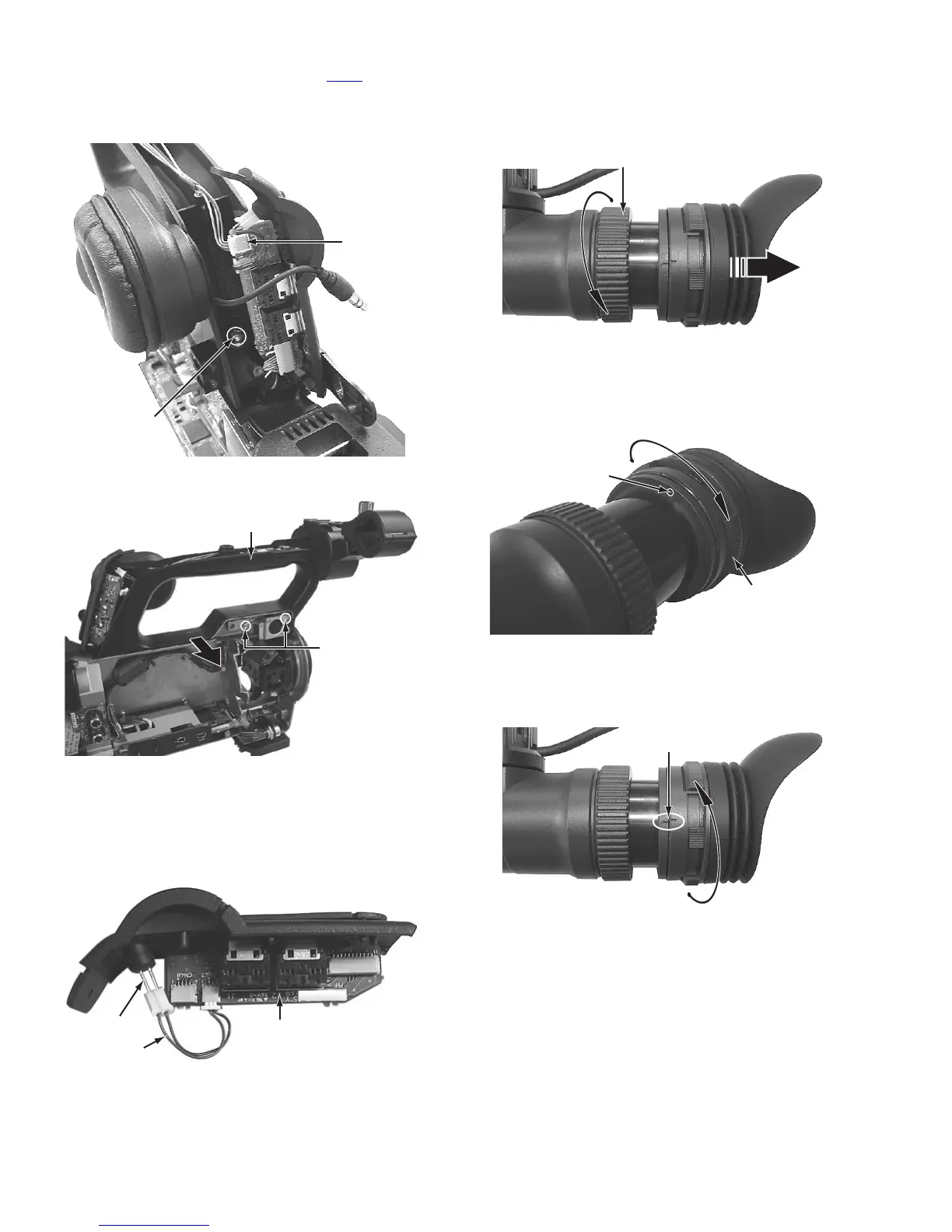

Fig.33

Fig.34

(6) The handle assembly is easily removed by slightly sliding

to the direction of the arrow.

• When connecting the LED connector on EAR board,

ensure the polarity that the red wire should be con-

nected longer pin of the LED.

Fig.35

3.6 HOW TO REMOVE THE VIEW FINDER ASSEMBLY

3.6.1 Removing the lens unit assembly (See figure 36, fig-

ure 37 and figure 38)

(1) Loosen the lock ring, then pull out the lens unit assembly.

Fig.36

(2) Insert a fine screwdriver into the hole on the back of the

slide cover. While keeping the fine screwdriver inserted,

turn the lens unit assembly to the direction of the arrow.

The lens unit assembly can be removed.

Fig.37

(3) When attaching the lens unit assembly, align the marks on

the slide cover and the lens unit assembly, then turn the

lens unit assembly to the direction of the arrow to lock.

Fig.38

(S4)

CN48

EAR Board

Handle assembly

(S4)

EAR Board

Red wire

Longer pin

Lock ring

Lens unit assembly

Hole

Marks
